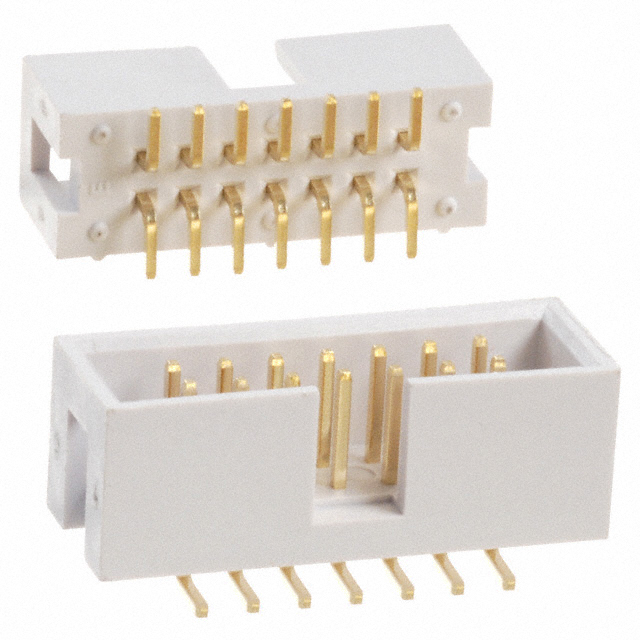

AWHW 14 Series

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Contact Shape	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Shrouding	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Positions Loaded	Contact Finish - Mating	Number of Rows [custom]	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Type	Material Flammability Rating	Contact Material	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Style	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Assmann WSW Components AWHW14G-0202-T-R	Square	0.224 in	5.7 mm	3 A	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Solder	-40 C	105 ░C	Keying Slot	All	Gold	2	Push-Pull	0.13 "	3.3 mm	Flash	Male Pin	UL94 V-0	Brass	Through Hole	Gray	0.1 "	2.54 mm	14	Board to Cable/Wire	Tin	0.354 in	9 mm	Polybutylene Terephthalate (PBT) Glass Filled
Assmann WSW Components AWHW 14A-0202-T	Square	0.224 in	5.7 mm	3 A	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Solder	-40 C	105 ░C	Keying Slot	All	Gold	2	Push-Pull	0.124 in	3.15 mm	Flash	Male Pin	UL94 V-0	Brass	Right Angle Through Hole	Gray	0.1 "	2.54 mm	14	Board to Cable/Wire	Tin			Polybutylene Terephthalate (PBT) Glass Filled	0.352 in	8.95 mm

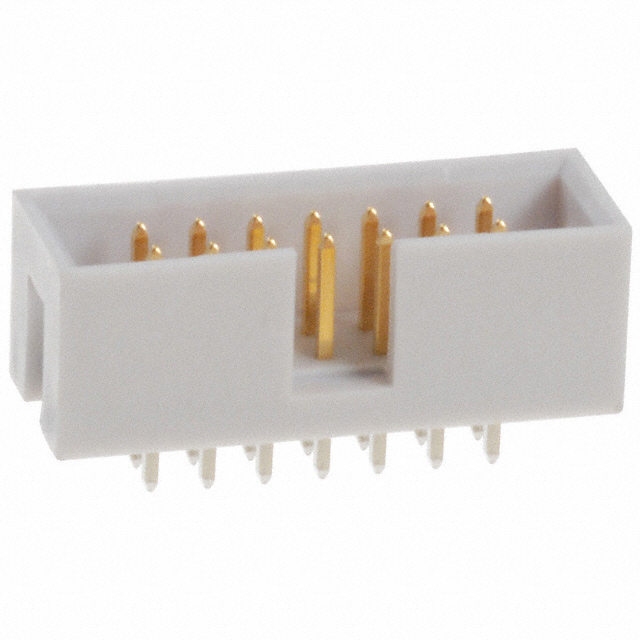

Assmann WSW Components AWHW14G-0102-T-R	Square	0.224 in	5.7 mm	3 A	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Solder	-40 C	105 ░C	Keying Slot	All	Gold	2	Push-Pull	0.13 "	3.3 mm		Male Pin	UL94 V-0	Brass	Through Hole	Gray	0.1 "	2.54 mm	14	Board to Cable/Wire	Tin	0.354 in	9 mm	Polybutylene Terephthalate (PBT) Glass Filled			0.76 Ám	30 Áin

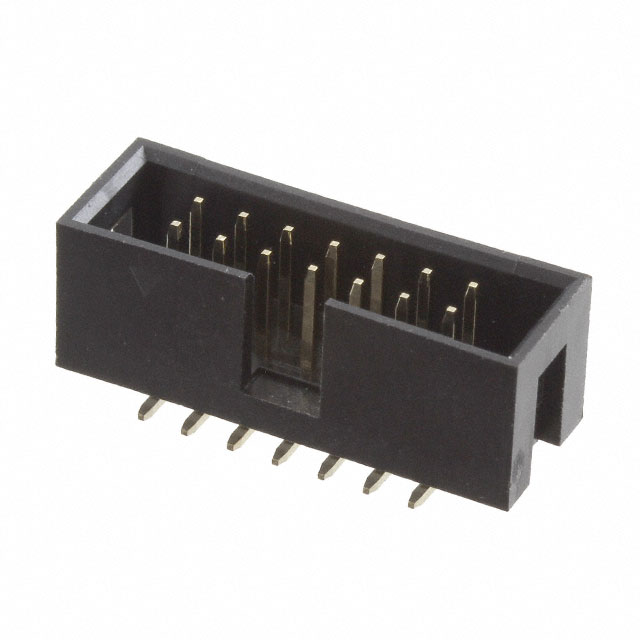

Assmann WSW Components AWHW 14G-SMD	Square	0.232 in	5.9 mm	3 A	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Solder	-40 C	105 ░C	Keying Slot Pick and Place	All	Gold	2	Push-Pull			Flash	Male Pin	UL94 V-0	Brass	Surface Mount	Black	0.1 "	2.54 mm	14	Board to Cable/Wire		0.354 in	9 mm	Glass Filled Nylon 9T Polyamide (PA9T)

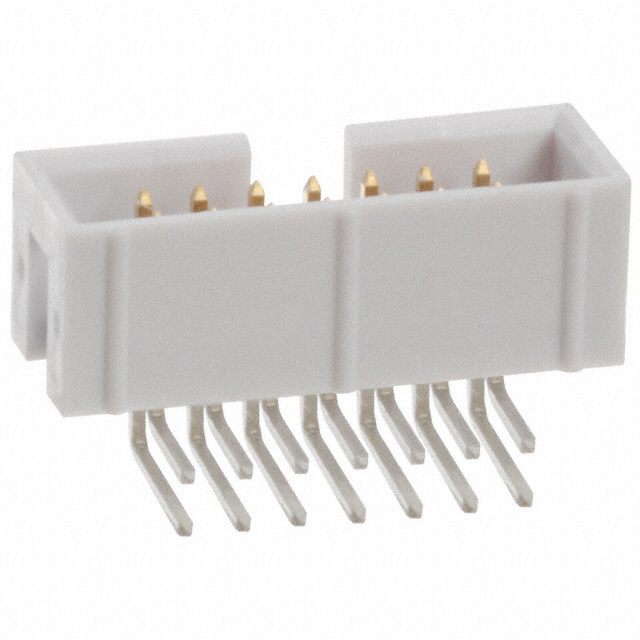

Assmann WSW Components AWHW14A-0202-T-R	Square	0.224 in	5.7 mm	3 A	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Solder	-40 C	105 ░C	Keying Slot	All	Gold	2	Push-Pull	0.124 in	3.15 mm	Flash	Male Pin	UL94 V-0	Brass	Right Angle Through Hole	Gray	0.1 "	2.54 mm	14	Board to Cable/Wire	Tin	0.352 in	8.94 mm	Polybutylene Terephthalate (PBT) Glass Filled
Assmann WSW Components AWHW14-G-SMD-R	Square	0.232 in	5.9 mm	3 A	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Solder	-40 C	105 ░C	Keying Slot Pick and Place	All	Gold	2	Push-Pull			Flash	Male Pin	UL94 V-0	Brass	Surface Mount	Black	0.1 "	2.54 mm	14	Board to Cable/Wire		0.354 in	9 mm	Glass Filled Nylon 9T Polyamide (PA9T)
Assmann WSW Components AWHW 14G-SMD-R	Square	0.232 in	5.9 mm	3 A	0.1 in	2.54 mm	Header	Shrouded - 4 Wall	Solder	-40 C	105 ░C	Keying Slot Pick and Place	All	Gold	2	Push-Pull			Flash	Male Pin	UL94 V-0	Brass	Surface Mount	Black	0.1 "	2.54 mm	14	Board to Cable/Wire		0.354 in	9 mm	Glass Filled Nylon 9T Polyamide (PA9T)
