BRPY1201 Series
Manufacturer: Stanley Electric Co
Beta
⌘K

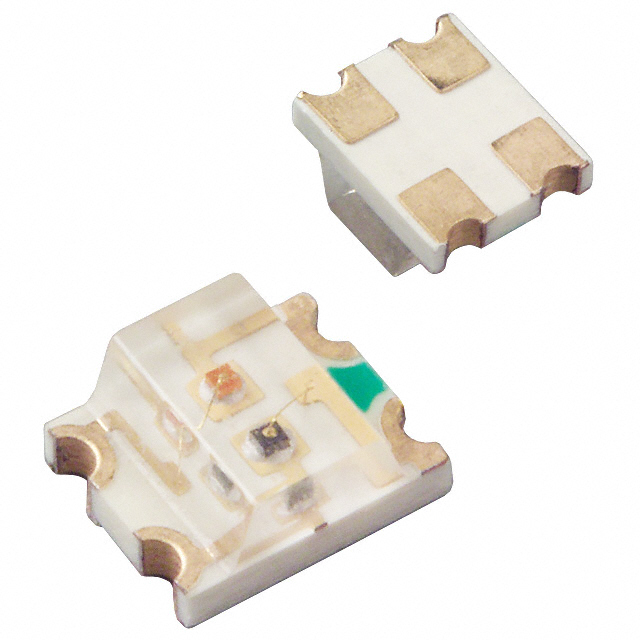

LED GREEN/RED CLEAR SMD
| Part | Size / Dimension [x] | Size / Dimension [y] | Height (Max) [z] | Package / Case | Wavelength - Peak | Viewing Angle | Lens Transparency | Lens Color | Lens Size [x] | Lens Size [y] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Mounting Type | Lens Style | Current - Test [custom] | Current - Test [custom] | Wavelength - Dominant | Color | Configuration | Supplier Device Package | Millicandela Rating [custom] | Millicandela Rating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | 3 mm | 2.5 mm | 1.9 mm | 4-SMD No Lead | 570 nm 660 nm | 149 ° 150 ° 156 ° 160 ° | Clear | Colorless | 1.5 mm | 2.5 mm | 2.1 V | 1.7 V | Surface Mount | Rectangle with Flat Top | 20 mA | 20 mA | 572 nm 647 nm | Green Red | Independent | SMD | 8 mcd | 12.8 mcd |
