MCE40 Series
Manufacturer: XP Power
Beta
⌘K

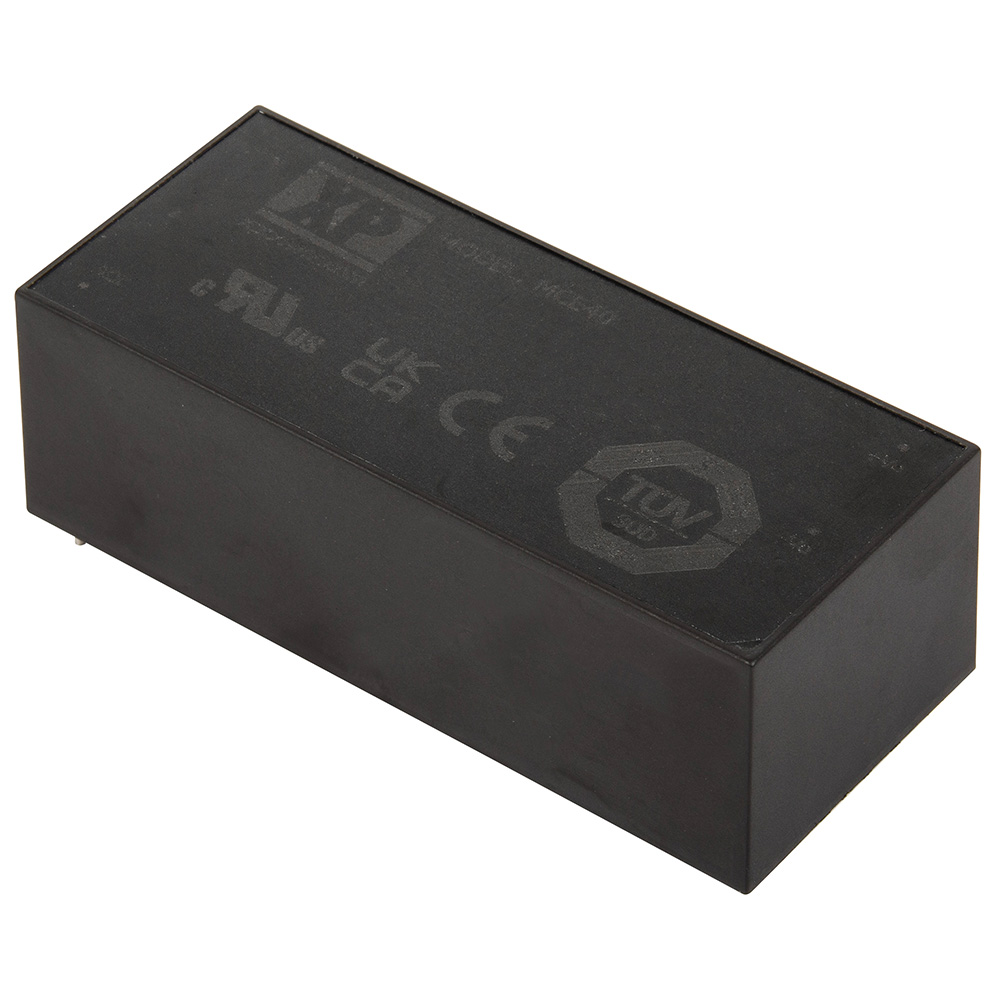

AC/DC POWER MODULES 40W PCB MOUNT ENCAPSULATED MEDICAL AC-DC POWER SUPPLY, SINGLE OUTPUT 5VDC 8.0A
| Part | Line Regulation | Load Regulation | Package / Case | Number of Outputs | Applications | Features | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Current - Output (Max) [Max] | Power (Watts) | Type | Voltage - Output 1 | Efficiency | Approval Agency | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 1 % | 2 % | 4-DIP Module | 1 | Medical | Universal Input | 80 VAC | 264 VAC | 70 °C | -25 °C | 60601-1 | 8 A | 40 W | Enclosed | 5 V | 84 % | CB CE TUV UKCA UL | Through Hole | 28.5 mm | 38.1 mm | 3.46 " | 1.12 " | 1.5 " | 87.9 mm |
 XP Power | 1 % | 2 % | 4-DIP Module | 1 | Medical | Universal Input | 80 VAC | 264 VAC | 70 °C | -25 °C | 60601-1 | 2.66 A | 40 W | Enclosed | 15 V | 87 % | CB CE TUV UKCA UL | Through Hole | 28.5 mm | 38.1 mm | 3.46 " | 1.12 " | 1.5 " | 87.9 mm |
