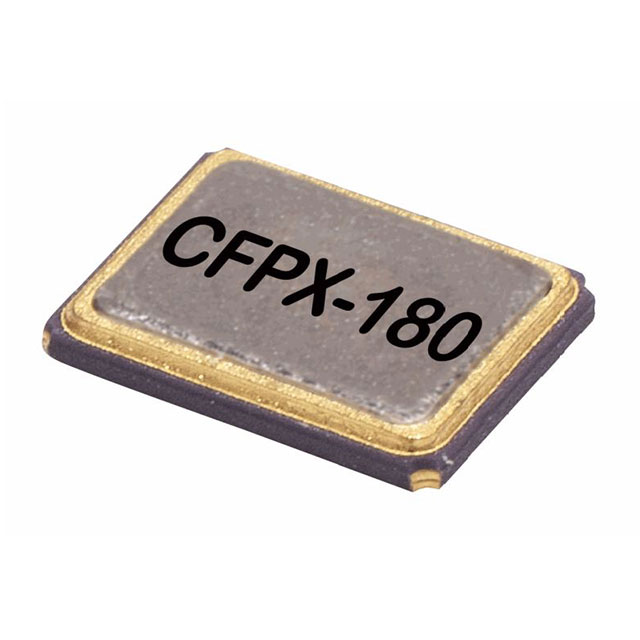

CFPX-180 Series

Manufacturer: IQD

Catalog

CRYSTALS 16MHZ 8PF 30PPM -10C +70C

Part	Frequency Stability	Frequency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Type	Load Capacitance	Operating Mode	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case	Frequency Tolerance
IQD LFXTAL064296	20 ppm	16 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	70 Ohm	MHz Crystal	8 pF	Fundamental	70 °C	-10 °C	Surface Mount	0.031 in	0.8 mm	4-SMD No Lead	20 ppm
IQD LFXTAL085883	50 ppm	26 MHz	2.5 mm 2.7 mm	0.098 in 0.106 in	3.2 mm 3.4 mm	0.126 " 0.134 in	40 Ohms 50 Ohms	MHz Crystal	12 pF	Fundamental	125 °C	-40 C	Surface Mount	0.031 in	0.8 mm	4-SMD No Lead	20 ppm
IQD LFXTAL072604	20 ppm	25 MHz	2.5 mm	0.098 in	3.2 mm	0.126 "	50 Ohms	MHz Crystal	8 pF	Fundamental	85 °C	-40 C	Surface Mount	0.031 in	0.8 mm	4-SMD No Lead	10 ppm
IQD LFXTAL085870	50 ppm	14.7456 MHz	2.5 mm 2.7 mm	0.098 in 0.106 in	3.2 mm 3.4 mm	0.126 " 0.134 in	100 Ohms	MHz Crystal	12 pF	Fundamental	125 °C	-40 C	Surface Mount	0.031 in	0.8 mm	4-SMD No Lead	20 ppm
IQD LFXTAL085875	30 ppm	20 MHz	2.5 mm 2.7 mm	0.098 in 0.106 in	3.2 mm 3.4 mm	0.126 " 0.134 in	50 Ohms	MHz Crystal	9 pF	Fundamental	105 ░C	-40 C	Surface Mount	0.031 in	0.8 mm	4-SMD No Lead	10 ppm
