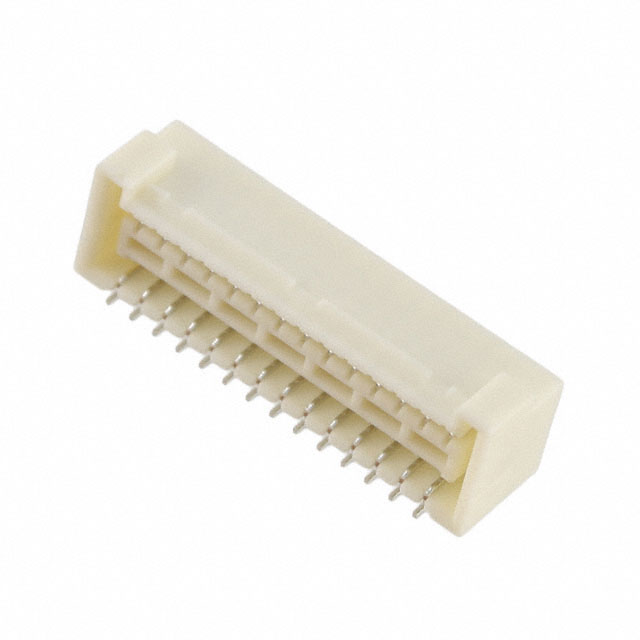

SM28B-ZP Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 28POS 1.5MM
| Part | Insulation Height | Insulation Height | Insulation Material | Current Rating (Amps) | Number of Positions | Contact Shape | Mounting Type | Insulation Color | Contact Type | Material Flammability Rating | Number of Positions Loaded | Contact Material | Fastening Type | Termination | Contact Finish - Post | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Style | Connector Type | Shrouding | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 7.85 mm | 0.309 in | Nylon Polyamide (PA) | 2 A | 28 | Rectangular | Right Angle Surface Mount | Natural | Outer Shroud Contact | UL94 V-0 | All | Copper Alloy | Locking Ramp | Solder | Tin | 100 V | 85 °C | -25 °C | Board to Cable/Wire | Header | Shrouded - 4 Wall | 2 |
