TOP244 Series

Catalog

IC OFFLINE SW FLYBACK TO262-7C

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown	Package / Case	Topology	Frequency - Switching [Min]	Frequency - Switching [Max]	Power (Watts)	Control Features	Fault Protection	Duty Cycle	Output Isolation	Mounting Type	Supplier Device Package
POWER INTEGRATIONS TOP244F	-40 °C	150 °C	700 V	TO-262-7 (6 Leads) Formed Leads	Flyback	66 kHz	132 kHz	65 W	Frequency Control	Current Limiting Over Temperature Over Voltage	66.5 %	Isolated	Through Hole	TO-262-7C

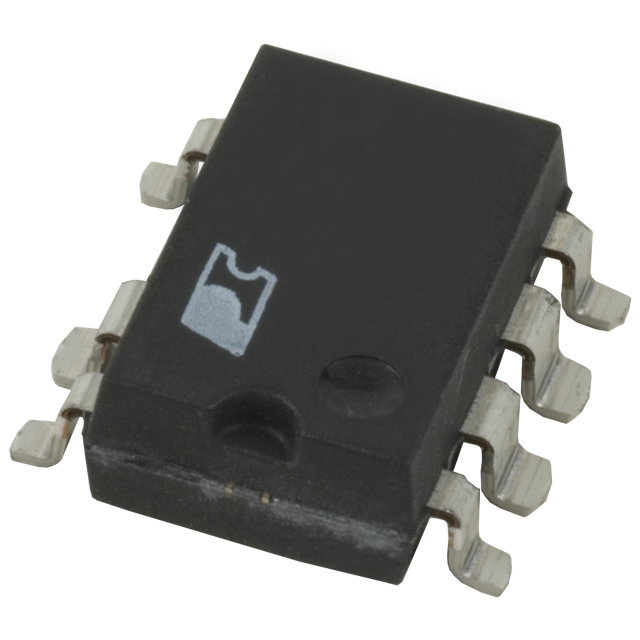

POWER INTEGRATIONS TOP244G	-40 °C	150 °C	700 V	8-SMD (7 Leads) Gull Wing	Flyback	66 kHz	132 kHz	28 W	Frequency Control	Current Limiting Over Temperature Over Voltage	66.5 %	Isolated	Surface Mount	SMD-8B
POWER INTEGRATIONS TOP244GN	-40 °C	150 °C	700 V	8-SMD (7 Leads) Gull Wing	Flyback	66 kHz	132 kHz	28 W	Frequency Control	Current Limiting Over Temperature Over Voltage	66.5 %	Isolated	Surface Mount	SMD-8B
POWER INTEGRATIONS TOP244GN-TL	-40 °C	150 °C	700 V	8-SMD (7 Leads) Gull Wing	Flyback	66 kHz	132 kHz	28 W	Frequency Control	Current Limiting Over Temperature Over Voltage	66.5 %	Isolated	Surface Mount	SMD-8B
