8Q Series

Catalog

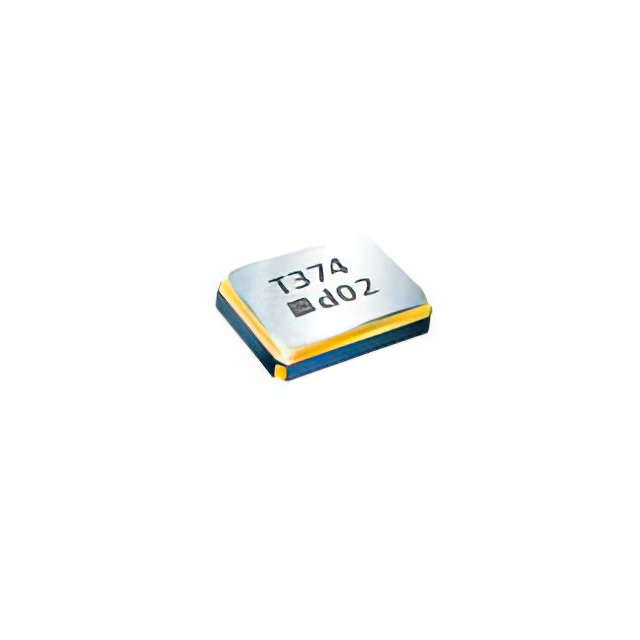

CRYSTALS 1.6X1.2 SEAM SEAL MHZ QUARTZ XTAL -4PAD / CERAMIC, +/-10PPM A.25C, +/-10PPM (-30 TO 85C), 16PF

Part	Package / Case	Frequency Stability	Frequency Tolerance	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Mode	ESR (Equivalent Series Resistance)	Frequency	Load Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package
TXC CORPORATION 8Q-37.400METI-T	4-SMD No Lead	10 ppm	10 ppm	Surface Mount	MHz Crystal	85 °C	-30 ░C	0.016 in	0.4 mm	Fundamental	80 Ohm	37.4 MHz	16 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	1.2	1.6	4-SMD
TXC CORPORATION 8Q-37.400MDDE-T	4-SMD No Lead	20 ppm	20 ppm	Surface Mount	MHz Crystal	70 °C	-20 ░C	0.016 in	0.4 mm	Fundamental	80 Ohm	37.4 MHz	12 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	1.2	1.6	4-SMD
TXC CORPORATION 8Q-38.400MEEC-T	4-SMD No Lead	10 ppm	10 ppm	Surface Mount	MHz Crystal	70 °C	-20 ░C	0.016 in	0.4 mm	Fundamental	80 Ohm	38.4 MHz	9 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	1.2	1.6	4-SMD
TXC CORPORATION 8Q-40.000MDDV-T	4-SMD No Lead	20 ppm	20 ppm	Surface Mount	MHz Crystal	70 °C	-20 ░C	0.016 in	0.4 mm	Fundamental	80 Ohm	40 MHz	8 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	1.2	1.6	4-SMD
TXC CORPORATION 8Q-25.000MAHI-T	4-SMD No Lead	30 ppm	30 ppm	Surface Mount	MHz Crystal	85 °C	-40 C	0.016 in	0.4 mm	Fundamental	100 Ohms	25 MHz	16 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	1.2	1.6	4-SMD
TXC CORPORATION 8Q-38.400MEEC-T	4-SMD No Lead	10 ppm	10 ppm	Surface Mount	MHz Crystal	70 °C	-20 ░C	0.016 in	0.4 mm	Fundamental	80 Ohm	38.4 MHz	9 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	1.2	1.6	4-SMD
TXC CORPORATION 8Q-25.000MAHI-T	4-SMD No Lead	30 ppm	30 ppm	Surface Mount	MHz Crystal	85 °C	-40 C	0.016 in	0.4 mm	Fundamental	100 Ohms	25 MHz	16 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	1.2	1.6	4-SMD
TXC CORPORATION 8Q30077001	4-SMD No Lead	10 ppm	10 ppm	Surface Mount	MHz Crystal	70 °C	-20 ░C	0.016 in	0.4 mm	Fundamental	80 Ohm	30 MHz	8 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	1.2	1.6	4-SMD
TXC CORPORATION 8Q-37.400MDDE-T	4-SMD No Lead	20 ppm	20 ppm	Surface Mount	MHz Crystal	70 °C	-20 ░C	0.016 in	0.4 mm	Fundamental	80 Ohm	37.4 MHz	12 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	1.2	1.6	4-SMD
TXC CORPORATION 8Q-40.000MDDV-T	4-SMD No Lead	20 ppm	20 ppm	Surface Mount	MHz Crystal	70 °C	-20 ░C	0.016 in	0.4 mm	Fundamental	80 Ohm	40 MHz	8 pF	1.6 mm	1.2 mm	0.047 in	0.063 "	1.2	1.6	4-SMD
