RSB Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

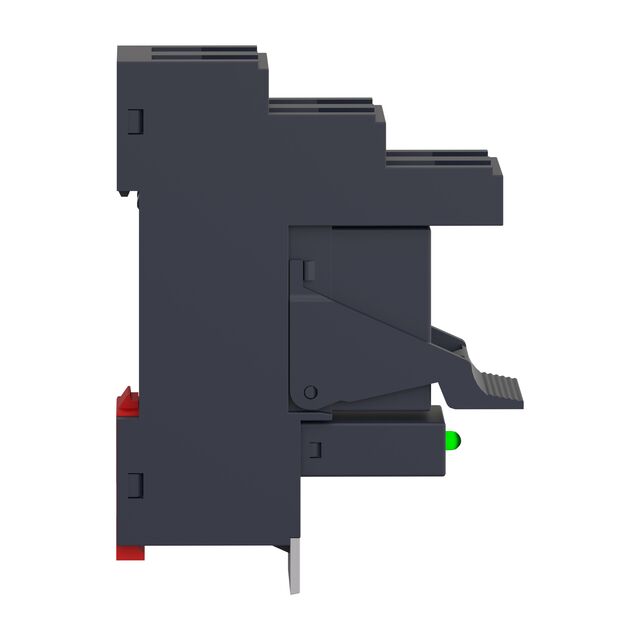

INDUSTRIAL RELAYS RSB RELAY & SOCKET,2C/O 8A 24VAC, VARISTOR
| Part | Coil Voltage | Relay Type | Release Time | Switching Voltage [Max] | Coil Current | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Coil Type | Must Release Voltage | Must Operate Voltage | Features | Mounting Type | Contact Rating (Current) | Contact Material | Operate Time | Termination Style | Coil Resistance | Approval Agency | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 24 VAC | General Purpose | 20 ms | 28 VDC 250 VAC | 68.6 mA | 224 W 2000 VA | 70 °C | -40 C | DPDT (2 Form C) | Non Latching | 3.6 VAC | 19.2 VAC | Lighted Indicator | DIN Rail | 8 A | Silver Nickel (AgNi) | 20 ms | Screw Terminal | |||
 SCHNEIDER ELECTRIC | 12 VDC | General Purpose | 20 ms | 28 VDC 250 VAC | 33.3 mA | 336 W 3000 VA | 85 °C | -40 C | SPDT (1 Form C) | Non Latching | 1.2 VDC | 9.6 VDC | Lighted Indicator | DIN Rail | 12 A | Silver Nickel (AgNi) | 20 ms | Screw Terminal | |||
 SCHNEIDER ELECTRIC | 230 VAC | General Purpose | 20 ms | 28 VDC 250 VAC | 7.1 mA | 224 W 2000 VA | 70 °C | -40 C | DPDT (2 Form C) | Non Latching | 34.5 VAC | 184 VAC | Lighted Indicator | DIN Rail | 8 A | Silver Nickel (AgNi) | 20 ms | Screw Terminal | 32500 Ohms | ||
 SCHNEIDER ELECTRIC | 220 VAC/DC | General Purpose | 20 ms | 6.7 mA | 3000 VA 3600 W | 70 °C | -40 C | SPDT (1 Form C) | Non Latching | 33 VAC | 176 VAC | Socketable | 12 A | Silver Nickel (AgNi) | 20 ms | Plug In | CSA EAC UL | 250 VAC 300 VDC |
