GST60A24 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

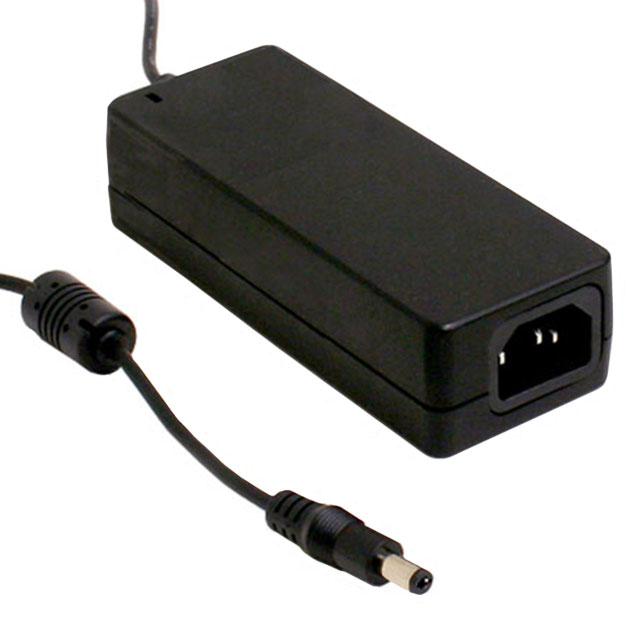

AC/DC DESKTOP ADAPTER 24V 60W
| Part | Input Connector | Form | No Load Power Consumption | Region Utilized | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Cord Length | Cord Length | Input Type | Output Connector [diameter] | Output Connector [x] | Output Connector | Voltage - Output | Polarization | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Applications | Power (Watts) | Approval Agency | Output Connector [custom] | Output Connector [custom] | Output Connector [custom] | Output Connector [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | IEC 320-C14 | Desktop (Class I) | 75 mW | International | 264 VAC | 90 VAC | Level VI | 70.9 " | 1.8 m | Cord (Sold Separately) | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 24 V | Positive Center | 2.5 A | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 60 W | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | ||||
 MEAN WELL USA Inc. | IEC 320-C14 | Desktop (Class I) | 75 mW | International | 264 VAC | 90 VAC | Level VI | 70.9 " | 1.8 m | Cord (Sold Separately) | Barrel Plug R/A | 24 V | Positive Center | 2.5 A | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 60 W | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 9.5 mm | 5.5 mm | 2.1 mm | |||
 MEAN WELL USA Inc. | IEC 320-C14 | Desktop (Class I) | 75 mW | International | 264 VAC | 90 VAC | Level VI | 70.9 " | 1.8 m | Cord (Sold Separately) | 2.5 mm 5.5 mm | 11 mm | Barrel Plug | 24 V | Positive Center | 2.5 A | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 60 W | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | ||||
MEAN WELL USA Inc. | IEC 320-C14 | Desktop (Class I) | 75 mW | International | 264 VAC | 90 VAC | Level VI | 70.9 " | 1.8 m | Cord (Sold Separately) | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 24 V | Positive Center | 2.5 A | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 60 W | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | ||||
MEAN WELL USA Inc. | IEC 320-C14 | Desktop (Class I) | 75 mW | International | 264 VAC | 90 VAC | Level VI | 70.9 " | 1.8 m | Cord (Sold Separately) | 2.5 mm 5.5 mm | Barrel Plug R/A | 24 V | Positive Center | 2.5 A | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 60 W | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 9.5 mm | ||||
MEAN WELL USA Inc. | IEC 320-C14 | Desktop (Class I) | 75 mW | International | 264 VAC | 90 VAC | Level VI | 70.9 " | 1.8 m | Cord (Sold Separately) | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 24 V | Positive Center | 2.5 A | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 60 W | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | ||||
MEAN WELL USA Inc. | IEC 320-C14 | Desktop (Class I) | 75 mW | International | 264 VAC | 90 VAC | Level VI | 70.9 " | 1.8 m | Cord (Sold Separately) | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 24 V | Positive Center | 2.5 A | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 60 W | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | ||||
MEAN WELL USA Inc. | IEC 320-C14 | Desktop (Class I) | 75 mW | International | 264 VAC | 90 VAC | Level VI | 70.9 " | 1.8 m | Cord (Sold Separately) | 2.1 mm 5.5 mm | 11 mm | Barrel Plug | 24 V | Positive Center | 2.5 A | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 60 W | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | ||||
MEAN WELL USA Inc. | IEC 320-C14 | Desktop (Class I) | 75 mW | International | 264 VAC | 90 VAC | Level VI | 70.9 " | 1.8 m | Cord (Sold Separately) | 2.5 mm 5.5 mm | Barrel Plug R/A | 24 V | Positive Center | 2.5 A | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 60 W | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 9.5 mm | ||||
MEAN WELL USA Inc. | IEC 320-C14 | Desktop (Class I) | 75 mW | International | 264 VAC | 90 VAC | Level VI | 70.9 " | 1.8 m | Cord (Sold Separately) | Barrel Plug R/A | 24 V | Positive Center | 2.5 A | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | ITE (Commercial) | 60 W | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 11 mm | 5.5 mm | 2.5 mm |
