0858-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

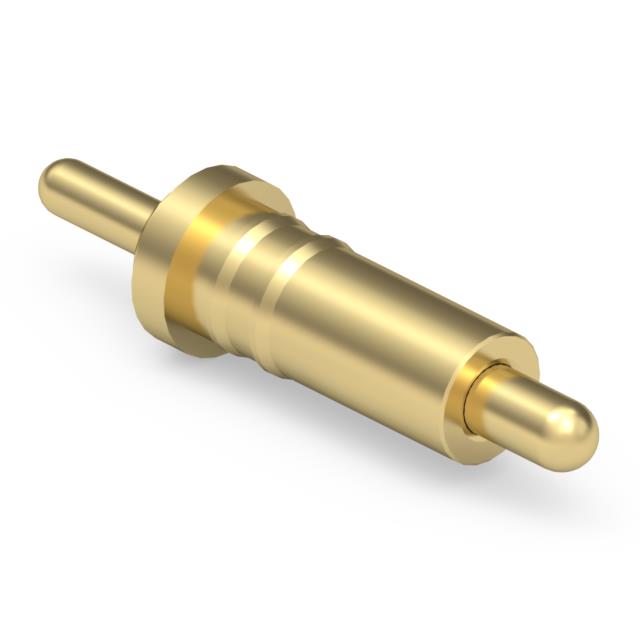

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) | Recommended Working Height | Recommended Working Height | Mating Cycles | Operating Force - Initial | Minimum Working Height | Minimum Working Height | Contact Type | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Mounting Type | Operating Force - Mid Compression | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.378 in | 9.6 mm | Gold | 20 µin | 0.51 µm | 1.27 mm | 0.05 in | 9.6 A | 0.333 in | 8.46 mm | 1000000 | 25 gf | 7.32 mm | 0.288 in | Sleeve & Plunger (Pogo Pins) | 3.18 mm | 0.125 in | Through Hole | 120 gf | Brass Alloy |
