M2042S2 Series

Catalog

SWITCH TOGGLE 4PDT 0.4VA 28V

Part	Actuator Material	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Illumination	Actuator Length	Voltage Rating - DC	Actuator Type	Features	Current Rating (Amps)	Circuit	Termination Style	Switch Function	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Bushing Thread	Actuator Length [x]

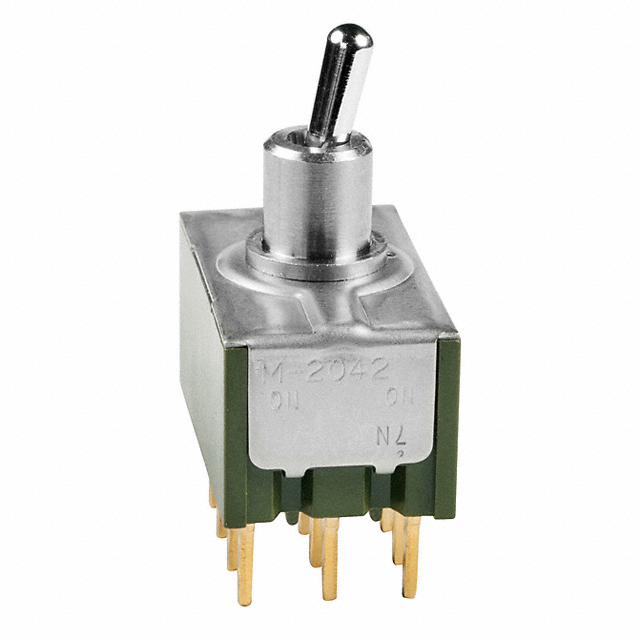

NKK Switches M2042S2A2G03	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Through Hole	Non-Illuminated	6.86 mm	28 V	Standard Round	Epoxy Sealed Terminals	0.4 VA	4PDT	PC Pin	On-On	6.5 mm	28 V	Unthreaded

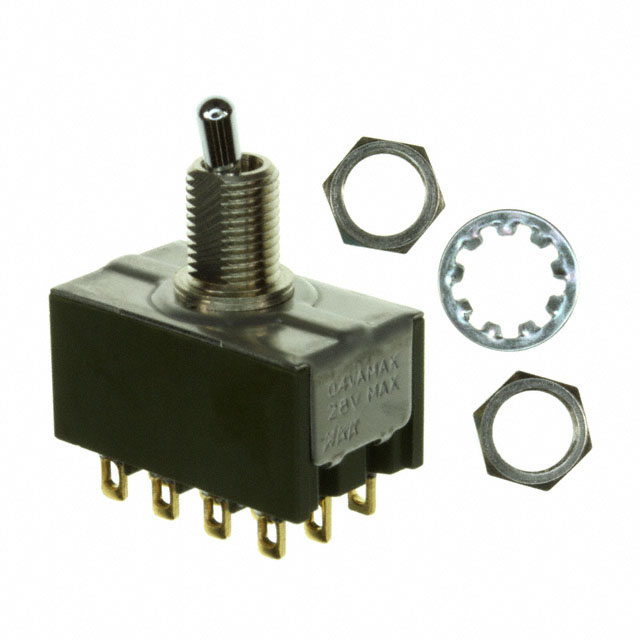

NKK Switches M2042S2D1G01	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Panel Mount	Non-Illuminated		28 V	Standard Round	Epoxy Sealed Terminals	0.4 VA	4PDT	Solder Lug	On-On	6.5 mm	28 V	1/4-40	5.08 mm

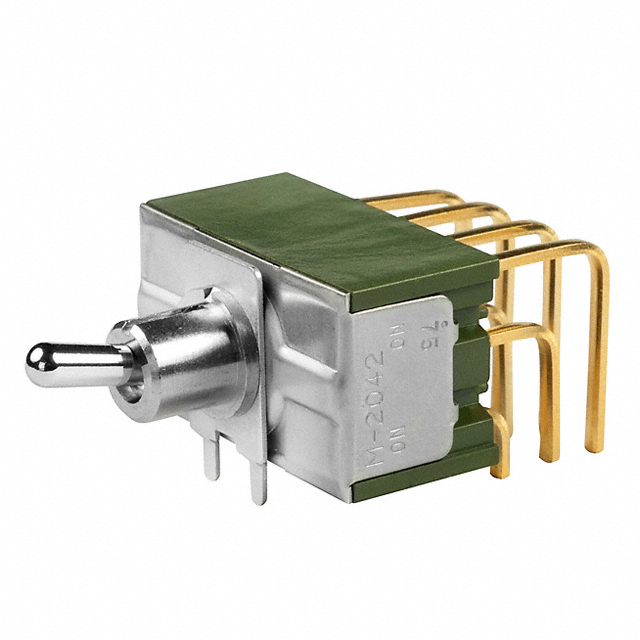

NKK Switches M2042S2A2G40	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Right Angle Through Hole Vertical	Non-Illuminated	6.86 mm	28 V	Standard Round	Epoxy Sealed Terminals	0.4 VA	4PDT	PC Pin	On-On	6.5 mm	28 V	Unthreaded
NKK Switches M2042S2D1W01/CUL	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	Panel Mount	Non-Illuminated		30 V	Standard Round	Epoxy Sealed Terminals	4 A 6 A	4PDT	Solder Lug	On-On	6.5 mm	125 V	1/4-40	5.08 mm
