QBLP675 Series

Catalog

LED YELLOW-GREEN CLEAR 2PLCC SMD

Part	Configuration	Voltage - Forward (Vf) (Typ)	Current - Test	Color	Mounting Type	Package / Case	Millicandela Rating	Lens Color	Lens Size [x]	Lens Size [y]	Supplier Device Package	Lens Style	Height (Max) [Max] [z]	Lens Transparency	Viewing Angle	Wavelength - Dominant

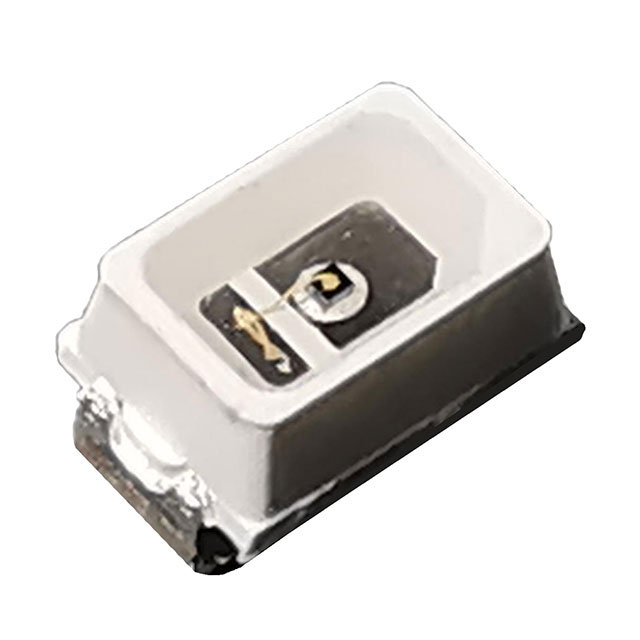

QT Brightek (QTB) QBLP675-AG	Standard	2 V	20 mA	Yellow-Green	Surface Mount	2-PLCC	51 mcd	Colorless	1.5 mm	1 mm	2-PLCC	Oval with Flat Top	1.3 mm	Clear	120 °	570 nm
QT Brightek (QTB) QBLP675-S	Standard	2 V	20 mA	Red	Surface Mount	2-PLCC	119 mcd	Colorless	1.5 mm	1 mm	2-PLCC	Oval with Flat Top	1.3 mm	Clear	120 °	640 nm
QT Brightek (QTB) QBLP675-Y-2897	Standard	2 V	20 mA	Yellow	Surface Mount	2-PLCC	468 mcd	Colorless	1.5 mm	1 mm	2-PLCC	Oval with Flat Top	1.3 mm	Clear	120 °	590 nm
QT Brightek (QTB) QBLP675-O	Standard	2 V	20 mA		Surface Mount	2-PLCC	135 mcd	Colorless	1.5 mm	1 mm	2-PLCC	Oval with Flat Top	1.3 mm	Clear	120 °	605 nm
QT Brightek (QTB) QBLP675-IG-2897	Standard	3.2 V	20 mA	Green	Surface Mount	2-PLCC	1120 mcd	Colorless	1.5 mm	1 mm	2-PLCC	Oval with Flat Top	1.3 mm	Clear	120 °	524 nm
QT Brightek (QTB) QBLP675-Y	Standard	2 V	20 mA	Yellow	Surface Mount	2-PLCC	122 mcd	Colorless	1.5 mm	1 mm	2-PLCC	Oval with Flat Top	1.3 mm	Clear	120 °	587 nm
QT Brightek (QTB) QBLP675-IB-2897	Standard	2.9 V	20 mA	Blue	Surface Mount	2-PLCC	250 mcd	Colorless	1.5 mm	1 mm	2-PLCC	Oval with Flat Top	1.3 mm	Clear	120 °	467 nm
QT Brightek (QTB) QBLP675-IB	Standard	3 V	20 mA	Blue	Surface Mount	2-PLCC	195 mcd	Colorless	1.5 mm	1 mm	2-PLCC	Oval with Flat Top	1.3 mm	Clear	120 °	465 nm
QT Brightek (QTB) QBLP675-IG	Standard	3.2 V	20 mA	Green	Surface Mount	2-PLCC	725 mcd	Colorless	1.5 mm	1 mm	2-PLCC	Oval with Flat Top	1.3 mm	Clear	120 °	522 nm
QT Brightek (QTB) QBLP675-IW-NW	Standard	3.1 V	20 mA	Neutral White	Surface Mount	2-PLCC	1650 mcd	Yellow	1.5 mm	1 mm	2-PLCC	Oval with Flat Top	1.3 mm	Diffused	120 °	4000 K
