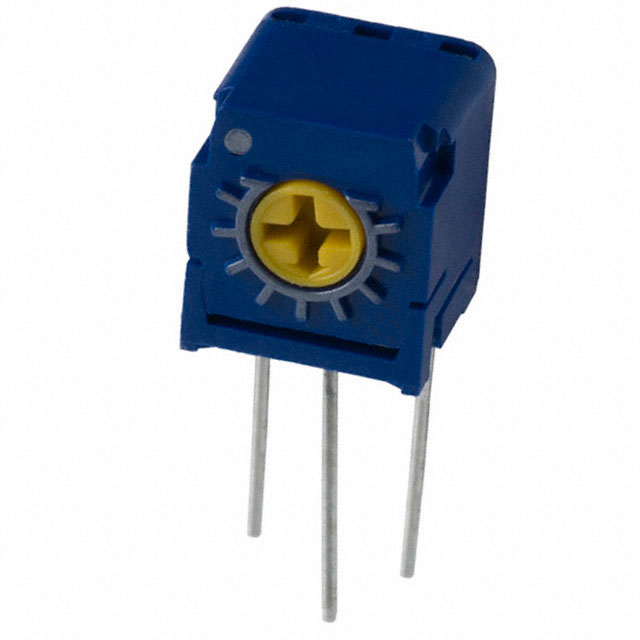

CT-6 Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER RESISTORS - THROUGH HOLE 200 W 6MM SQ. SINGLE TURN SIDE ADJ

Part	Termination Style	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistive Material	Temperature Coefficient	Number of Turns	Resistance	Tolerance	Adjustment Type	Mounting Type
Nidec Components Corporation CT-6EMS201	PC Pins	0.5 W	0.5 W	0.323 in	7 mm	8.2 mm	0.276 in	Cermet	100 ppm/°C	1	200 Ohms	10 %	Side Adjustment	Through Hole
Nidec Components Corporation CT-6EW504	PC Pins	0.5 W	0.5 W	0.276 "	7 mm	7 mm	0.276 in	Cermet	100 ppm/°C	1		10 %	Top Adjustment	Through Hole
Nidec Components Corporation CT-6EX101	PC Pins	0.5 W	0.5 W	0.323 in	7 mm	8.2 mm	0.276 in	Cermet	100 ppm/°C	1	100 Ohms	10 %	Side Adjustment	Through Hole
Nidec Components Corporation CT-6EW202	PC Pins	0.5 W	0.5 W	0.276 "	7 mm	7 mm	0.276 in	Cermet	100 ppm/°C	1	2 kOhms	10 %	Top Adjustment	Through Hole
Nidec Components Corporation CT-6EMP504	PC Pins	0.5 W	0.5 W	0.276 in	5.8 mm	7 mm	0.228 in	Cermet	100 ppm/°C	1		10 %	Top Adjustment	Through Hole
Nidec Components Corporation CT-6EMS200	PC Pins	0.5 W	0.5 W	0.323 in	7 mm	8.2 mm	0.276 in	Cermet	250 ppm/°C	1	20 Ohms	10 %	Side Adjustment	Through Hole
Nidec Components Corporation CT-6EP500	PC Pins	0.5 W	0.5 W	0.276 "	7 mm	7 mm	0.276 in	Cermet	100 ppm/°C	1	50 Ohms	10 %	Top Adjustment	Through Hole
Nidec Components Corporation CT-6ES503	PC Pins	0.5 W	0.5 W	0.323 in	7 mm	8.2 mm	0.276 in	Cermet	100 ppm/°C	1	50000 Ohms	10 %	Side Adjustment	Through Hole
Nidec Components Corporation CT-6EMS500	PC Pins	0.5 W	0.5 W	0.323 in	7 mm	8.2 mm	0.276 in	Cermet	100 ppm/°C	1	50 Ohms	10 %	Side Adjustment	Through Hole
Nidec Components Corporation CT-6ETP104	PC Pins	0.5 W	0.5 W	0.276 "	7 mm	7 mm	0.276 in	Cermet	100 ppm/°C	1	100 kOhms	10 %	Top Adjustment	Through Hole
