96A1A Series
Manufacturer: Bourns Inc.
Beta
⌘K

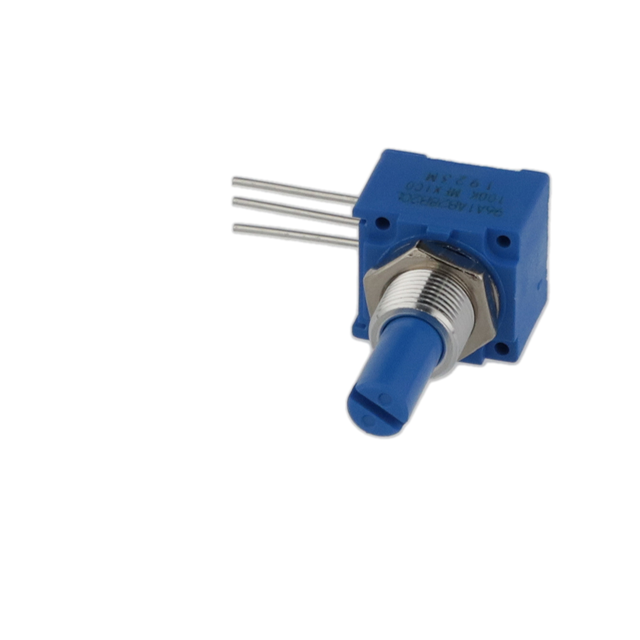

POT 100K OHM 1W PLASTIC LINEAR
| Part | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Actuator Length [x] | Actuator Length [x] | Number of Turns | Temperature Coefficient | Actuator Type | Bushing Thread | Tolerance | Mounting Type | Termination Style | Features | Built in Switch | Rotation | Power (Watts) | Adjustment Type | Taper | Resistive Material | Number of Gangs | Resistance (Ohms) | Actuator Diameter [diameter] | Actuator Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 0.875 in | 22.23 mm | 1 | 1000 ppm/°C | Slotted | 3/8-32 | 20 % | Panel Mount | PC Pins | Sealed | None | 300 ░ | 1 W | Side Adjustment | Linear | Conductive Plastic | 1 | 100k | 6.35 mm | 0.25 in |
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 0.75 in | 19.05 mm | 1 | 1000 ppm/°C | Slotted | 3/8-32 | 20 % | Panel Mount | PC Pins | Sealed | None | 300 ░ | 1 W | Side Adjustment | Linear | Conductive Plastic | 1 | 10k | 6.35 mm | 0.25 in |
Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 0.75 in | 19.05 mm | 1 | 1000 ppm/°C | Flatted | 3/8-32 | 20 % | Panel Mount | PC Pins | Sealed | None | 300 ░ | 1 W | Side Adjustment | Linear | Conductive Plastic | 1 | 10k | 6.35 mm | 0.25 in |
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 0.875 in | 22.23 mm | 1 | 150 ppm/°C | Slotted | 3/8-32 | 10 % | Panel Mount | PC Pins | Sealed | None | 300 ░ | 2 W | Side Adjustment | Linear | Cermet | 1 | 100k | 6.35 mm | 0.25 in |
