9368 Series
Manufacturer: Belden Inc.
Beta
⌘K

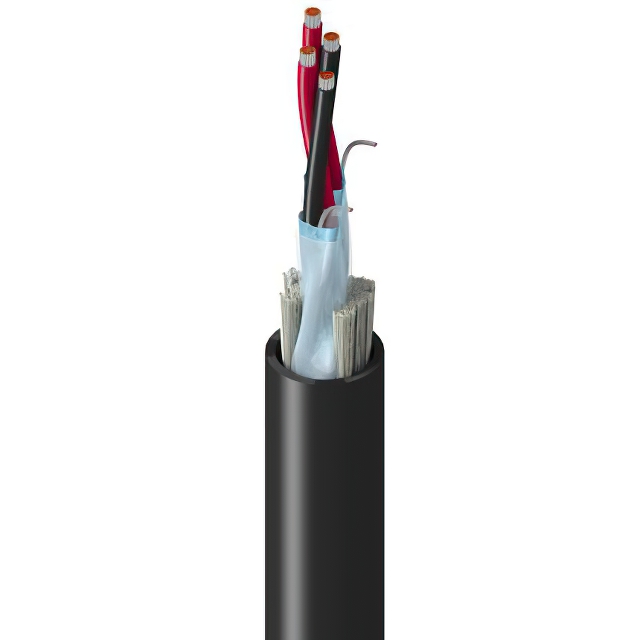

MULTI-PAIR 4COND 18AWG CHROME
| Part | Shield Coverage | Shield Material | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket Color | Conductor Insulation | Length | Length | Conductor Material | Shield Type | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 18 AWG | 30 AWG | 19 | -30 ░C | 105 ░C | Multi-Pair | 0.393 in | 9.98 mm | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | 4 | Chrome | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Copper Tinned | Foil | Instrumentation |
 Belden Inc. | 100 % | Aluminum | 18 AWG | 30 AWG | 19 | -30 ░C | 105 ░C | Multi-Pair | 0.393 in | 9.98 mm | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | 4 | Chrome | Poly-Vinyl Chloride (PVC) | Copper Tinned | Foil | Instrumentation |
