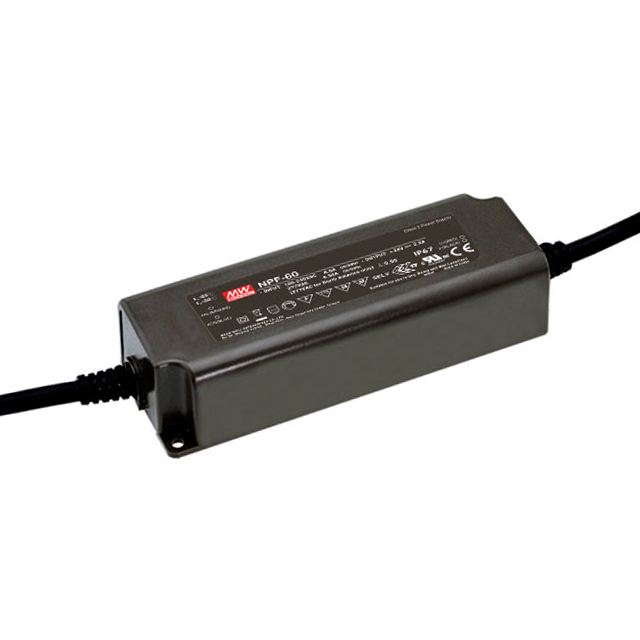

NPF-60 Series

Catalog

LED DVR CCCV ACDC 25.2-42V 1.43A

Part	Mounting Type	Features	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Topology	Current - Output (Max) [Max]	Power (Watts)	Number of Outputs	Voltage - Isolation	Voltage - Output [Max]	Voltage - Output [Min]	Termination Style	Voltage - Input (Max) [Max]	Ratings	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Dimming
MEAN WELL USA Inc. NPF-60-42	Chassis Mount	OCP OTP OVP SCP	CB CCC CE ENEC	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	90 %	AC DC Converter	1.43 A	60 W	1	3750 VDC	42 V	25.2	Wire Leads	305 VAC	IP67	90 VAC	Constant Current Voltage	85 °C	-40 C
MEAN WELL USA Inc. NPF-60-48	Chassis Mount	OCP OTP OVP SCP	CB CCC CE ENEC	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	90 %	AC DC Converter	1.25 A	60 W	1	3750 VDC	48 V	28.8 V	Wire Leads	305 VAC	IP67	90 VAC	Constant Current Voltage	85 °C	-40 C
MEAN WELL USA Inc. NPF-60-12	Chassis Mount	OCP OTP OVP SCP	CB CCC CE cURus ENEC	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	86 %	AC DC Converter		60 W	1	3750 VDC	12 V	7.2 V	Wire Leads	305 VAC	IP67	90 VAC	Constant Current Voltage	85 °C	-40 C	5 A
MEAN WELL USA Inc. NPF-60-30	Chassis Mount	OCP OTP OVP SCP	CB CCC CE ENEC	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	90 %	AC DC Converter	2 A	60 W	1	3750 VDC			Wire Leads	305 VAC	IP67	90 VAC	Constant Current Voltage	85 °C	-40 C
MEAN WELL USA Inc. NPF-60-36	Chassis Mount	OCP OTP OVP SCP	CB CCC CE ENEC	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	90 %	AC DC Converter	1.67 A	60 W	1	3750 VDC	36 V	21.6 V	Wire Leads	305 VAC	IP67	90 VAC	Constant Current Voltage	85 °C	-40 C
MEAN WELL USA Inc. NPF-60-24	Chassis Mount	OCP OTP OVP SCP	CB CCC CE cURus ENEC	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	89 %	AC DC Converter	2.5 A	60 W	1	3750 VDC	24 V	14.4 V	Wire Leads	305 VAC	IP67	90 VAC	Constant Current Voltage	85 °C	-40 C

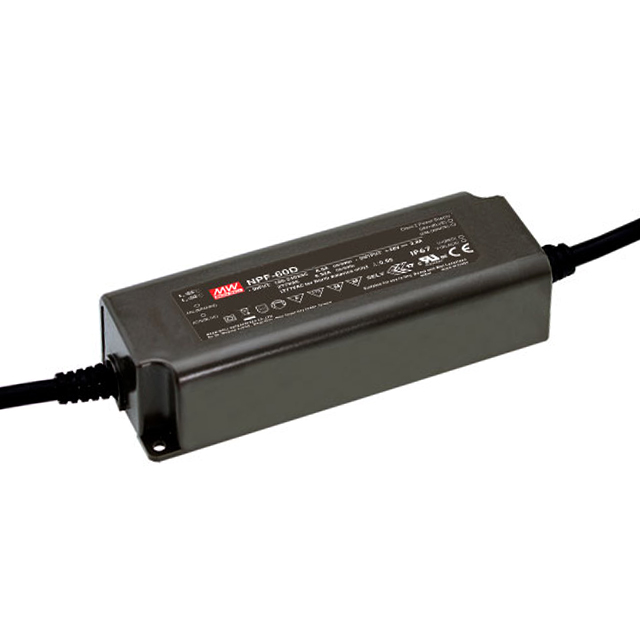

MEAN WELL USA Inc. NPF-60D-42	Chassis Mount	OCP OTP OVP SCP	CB CCC CE ENEC	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	90 %	AC DC Converter	1.43 A	60 W	1	3750 VDC	42 V	25.2	Wire Leads	305 VAC	IP67	90 VAC	Constant Current	85 °C	-40 C		Analog PWM
MEAN WELL USA Inc. NPF-60-20	Chassis Mount	OCP OTP OVP SCP	CB CCC CE ENEC	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	88 %	AC DC Converter	3 A	60 W	1	3750 VDC	20 V	12 V	Wire Leads	305 VAC	IP67	90 VAC	Constant Current Voltage	85 °C	-40 C
MEAN WELL USA Inc. NPF-60D-54	Chassis Mount	OCP OTP OVP SCP	CB CCC CE ENEC	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	90 %	AC DC Converter	1.12 A	60 W	1	3750 VDC	54 V	32.4 V	Wire Leads	305 VAC	IP67	90 VAC	Constant Current	85 °C	-40 C		Analog PWM
MEAN WELL USA Inc. NPF-60D-12	Chassis Mount	OCP OTP OVP SCP	CB CCC CE cURus ENEC	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	86 %	AC DC Converter		60 W	1	3750 VDC	12 V	7.2 V	Wire Leads	305 VAC	IP67	90 VAC	Constant Current	85 °C	-40 C	5 A	Analog PWM
