0668-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination
Mill-Max Manufacturing Corp. 0668-0-15-80-30-27-10-0	-55 C	125 °C	No Tail	Gold	1.45 mm	0.057 in	0.126 in	3.2 mm	30 Áin	0.76 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	0.146 in	3.71 mm	0.072 "	1.83 mm	Press-Fit
Mill-Max Manufacturing Corp. 0668-0-15-80-30-84-10-0	-55 C	125 °C	No Tail	Tin	1.45 mm	0.057 in	0.126 in	3.2 mm	100 µin	2.54 µm	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	0.146 in	3.71 mm	0.072 "	1.83 mm	Press-Fit
Mill-Max Manufacturing Corp. 0668-0-15-01-30-27-10-0	-55 C	125 °C	No Tail	Gold	1.45 mm	0.057 in	0.126 in	3.2 mm	30 Áin	0.76 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	0.146 in	3.71 mm	0.072 "	1.83 mm	Press-Fit
Mill-Max Manufacturing Corp. 0668-0-15-80-30-14-10-0	-55 C	125 °C	No Tail	Gold	1.45 mm	0.057 in	0.126 in	3.2 mm	10 Áin	0.25 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	0.146 in	3.71 mm	0.072 "	1.83 mm	Press-Fit
Mill-Max Manufacturing Corp. 0668-0-15-15-30-14-10-0	-55 C	125 °C	No Tail	Gold	1.45 mm	0.057 in	0.126 in	3.2 mm	10 Áin	0.25 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	0.146 in	3.71 mm	0.072 "	1.83 mm	Press-Fit

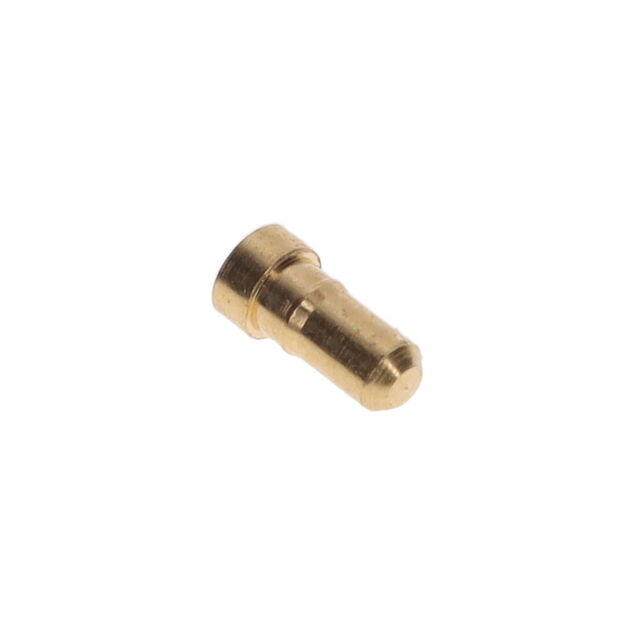

Mill-Max Manufacturing Corp. 0668-0-15-15-30-27-10-0	-55 C	125 °C	No Tail	Gold	1.45 mm	0.057 in	0.126 in	3.2 mm	30 Áin	0.76 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	0.146 in	3.71 mm	0.072 "	1.83 mm	Press-Fit
