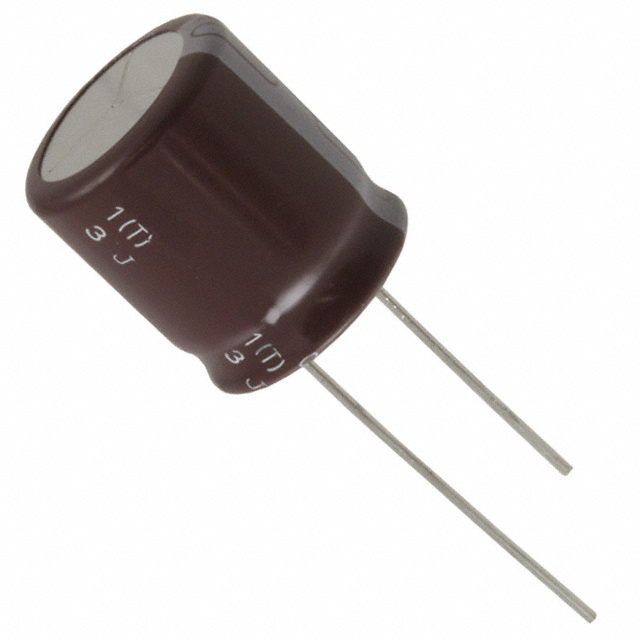

EKZE250E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 330UF 20% 25V RADIAL TH

Part	Applications	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Impedance	Mounting Type	Lifetime @ Temp.	Ripple Current @ High Frequency	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Package / Case	Ripple Current @ Low Frequency	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Chemi-Con EKZE250ETD331MJC5S	General Purpose	330 µF	-40 C	105 ░C	25 VDC	53 mOhms	Through Hole	4000 Hrs	1.03 A	20 %	14 mm	0.551 in	0.197 "	5 mm	Can Radial	515 mA	Polar	0.394 in	10 mm
Chemi-Con EKZE250ETD471MJ16S	General Purpose	470 µF	-40 C	105 ░C	25 VDC	38 mOhms	Through Hole	4000 Hrs	1.43 A	20 %			0.197 "	5 mm	Can Radial	715 mA	Polar	0.394 in	10 mm	17.5 mm	0.689 in
Chemi-Con EKZE250ETC101MF11D	General Purpose	100 µF	-40 C	105 ░C	25 VDC	130 mOhms	Through Hole	2000 Hrs	405 mA	20 %	0.492 in		0.098 in	2.5 mm	Can Radial	162 mA	Polar	0.248 "	6.3 mm			12.5 mm
Chemi-Con EKZE250ELL101MH07D	General Purpose	100 µF	-40 C	105 ░C	25 VDC	150 mOhms	Through Hole	5000 Hrs	380 mA	20 %	8 mm	0.315 in	0.138 in	3.5 mm	Can Radial	190 mA	Polar	0.315 in	8 mm
Chemi-Con EKZE250ETE222MK35S	General Purpose	2200 µF	-40 C	105 ░C	25 VDC	15 mOhms	Through Hole	5000 Hrs	3.4 A	20 %			0.197 "	5 mm	Can Radial	2.55 A	Polar	0.492 in	12.5 mm		36.5 mm		1.437 "
Chemi-Con EKZE250ETD471MH20D	General Purpose	470 µF	-40 C	105 ░C	25 VDC	41 mOhms	Through Hole	3000 Hrs	1.25 A	20 %	21.5 mm	0.846 "	0.138 in	3.5 mm	Can Radial	625 mA	Polar	0.315 in	8 mm
Chemi-Con EKZE250ELL821MJ25S	General Purpose	820 µF	-40 C	105 ░C	25 VDC	22 mOhms	Through Hole	4000 Hrs	2.15 A	20 %			0.197 "	5 mm	Can Radial	1.29 A	Polar	0.394 in	10 mm		26.5 mm		1.043 in
Chemi-Con EKZE250ETD681MJ20S	General Purpose	680 µF	-40 C	105 ░C	25 VDC	23 mOhms	Through Hole	4000 Hrs	1.82 A	20 %	21.5 mm	0.846 "	0.197 "	5 mm	Can Radial	1.092 A	Polar	0.394 in	10 mm
Chemi-Con EKZE250EC3221MHB5D	General Purpose	220 µF	-40 C	105 ░C	25 VDC	72 mOhms	Through Hole	3000 Hrs		20 %			0.138 in	3.5 mm	Can Radial	380 mA	Polar	0.315 in	8 mm		13 mm		0.512 "
Chemi-Con EKZE250ETD331MH15D	General Purpose	330 µF	-40 C	105 ░C	25 VDC	56 mOhms	Through Hole	3000 Hrs	995 mA	20 %			0.138 in	3.5 mm	Can Radial	120 Hz 497.5 mA	Polar	0.315 in	8 mm		16.5 mm		0.65 in
