001597 Series

Headers & Wire Housings MINI-FIT TPA HDR 04P VT AU

Manufacturer: Molex

Catalog

Headers & Wire Housings MINI-FIT TPA HDR 04P VT AU

Catalog

Headers & Wire Housings MINI-FIT TPA HDR 04P VT AU

Part	Note	Connector Type	Contact Type	Number of Rows [custom]	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Pitch	Pitch	Insulation Material	Row Spacing	Row Spacing	Contact Termination	For Use With/Related Products	Accessory Type	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Length - Post [x]	Contact Length - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Features	Style	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Shrouding	Contact Shape	Mated Stacking Heights	Voltage Rating	Contact Length - Post	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating

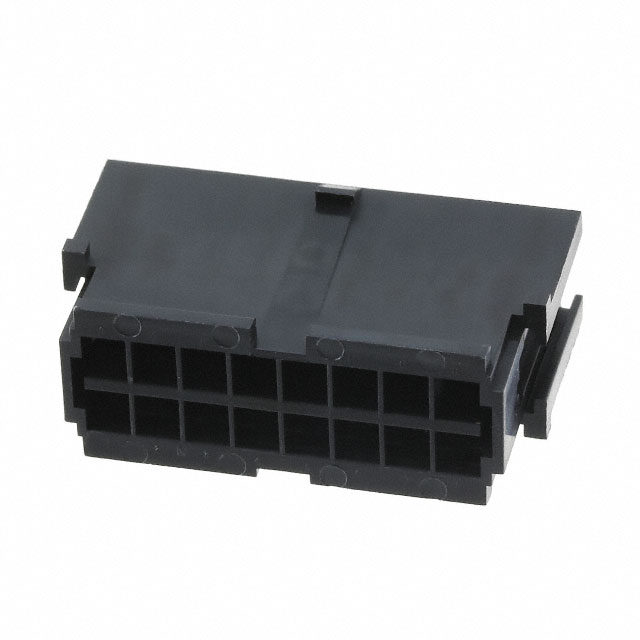

Molex 0015976161	Contacts Not Included	Plug	Male Pin	2	Free Hanging (In-Line)	Black	-40 C	105 ░C	Locking Ramp	16	0.165 in	4.2 mm	Polyester	0.217 in	5.51 mm	Crimp
Molex 0015979101										10							Mini-Fit Jr Series	Retention Key
Molex 0015978043		Header	Male Pin	2	Right Angle Through Hole				Locking Ramp	4			Polyester						Automotive Industrial Telecommunications	2.54 µm	100 µin	100 çin	2.54 çm	Black	0.157 in	4 mm	Brass	5.51 mm	0.217 in	Tin	Board Lock	Board to Cable/Wire	Solder	UL94 V-0	0.165 in	4.2 mm	All	0.461 in	11.7 mm	Shrouded - 4 Wall	Square
Molex 0015978082		Header	Male Pin	2	Through Hole		-40 C	105 ░C	Latch Lock	8			Polyester									100 çin	2.54 çm	Black		4.09 mm	Brass Alloy	5.51 mm	0.217 in	Tin		Board to Cable/Wire	Solder	UL94 V-0	0.165 in	4.2 mm	All	0.461 in	11.71 mm	Shrouded - 4 Wall	Square	5 mm	600 VAC	0.161 in	18 mm	0.709 in	Varies by Wire Gauge

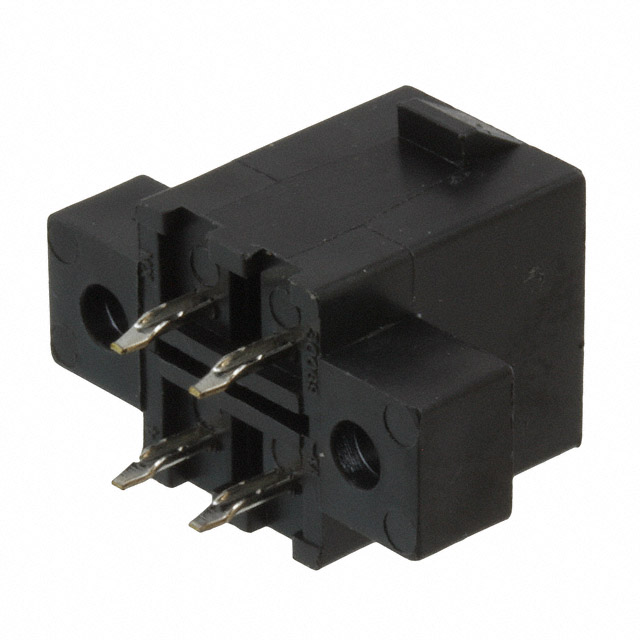

Molex 0015977042		Header	Male Pin	2	Through Hole				Locking Ramp	4			Polyester						Automotive Industrial Telecommunications	0.9 µm	35 µin	35.4 µin	0.9 µm	Black		3.5 mm	Brass Alloy	5.51 mm	0.217 in	Tin	Mounting Flange	Board to Cable/Wire	Solder	UL94 V-0	0.165 in	4.2 mm	All			Shrouded - 4 Wall	Square			0.138 in				12.8 mm	0.504 "
Molex 0015979161										16							Mini-Fit Jr Series	Retention Key

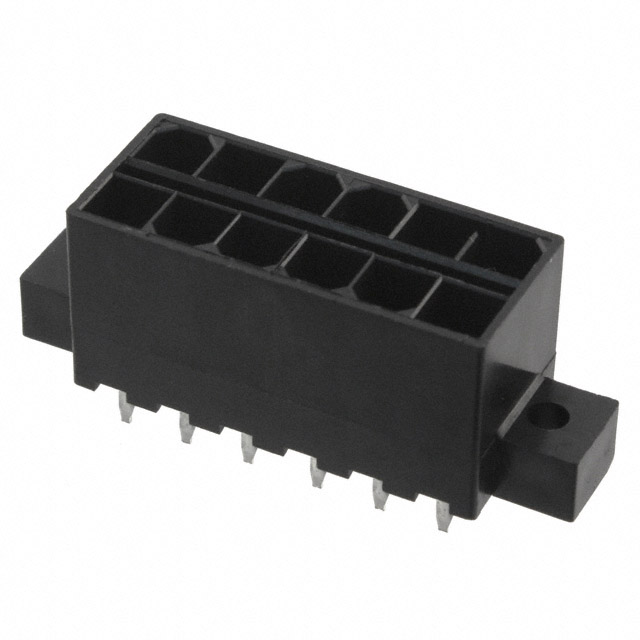

Molex 0015977122		Header	Male Pin	2	Through Hole				Locking Ramp	12			Polyester						Automotive Industrial Telecommunications	2.54 µm	100 µin	35.4 µin	0.9 µm	Black		3.5 mm	Brass Alloy	5.51 mm	0.217 in	Tin	Mounting Flange	Board to Cable/Wire	Solder	UL94 V-0	0.165 in	4.2 mm	All			Shrouded - 4 Wall	Square			0.138 in				12.8 mm	0.504 "
Molex 0015978087		Header	Male Pin	2	Right Angle Through Hole				Locking Ramp	8			Polyester						Automotive Industrial Telecommunications	2.54 µm	100 µin	30 Áin	0.76 Ám	Black	0.157 in	4 mm	Brass	5.51 mm	0.217 in	Tin	Mounting Flange	Board to Cable/Wire	Solder	UL94 V-0	0.165 in	4.2 mm	All	0.461 in	11.7 mm	Shrouded - 4 Wall	Square									Gold
Molex 0015978167		Header	Male Pin	2	Right Angle Through Hole				Locking Ramp	16			Polyester						Automotive Industrial Telecommunications	2.54 µm	100 µin	30 Áin	0.76 Ám	Black	0.157 in	4 mm	Brass	5.51 mm	0.217 in	Tin	Mounting Flange	Board to Cable/Wire	Solder	UL94 V-0	0.165 in	4.2 mm	All	0.461 in	11.7 mm	Shrouded - 4 Wall	Square									Gold
Molex 0015977044		Header	Male Pin	2	Through Hole				Locking Ramp	4			Polyester						Automotive Industrial Telecommunications	2.54 µm	100 µin	30 Áin	0.76 Ám	Black		3.5 mm	Brass Alloy	5.51 mm	0.217 in	Tin	Mounting Flange	Board to Cable/Wire	Solder	UL94 V-0	0.165 in	4.2 mm	All			Shrouded - 4 Wall	Square			0.138 in				12.8 mm	0.504 "	Gold
