NCP582 Series

Linear Voltage Regulator, LDO, Low Noise, 150 mA, with Enable

Catalog

Linear Voltage Regulator, LDO, Low Noise, 150 mA, with Enable

Part	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Package / Case	Protection Features	Supplier Device Package	PSRR	Number of Regulators	Output Configuration	Current - Output	Mounting Type	Control Features	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	Output Type	Operating Temperature [Max]	Operating Temperature [Min]

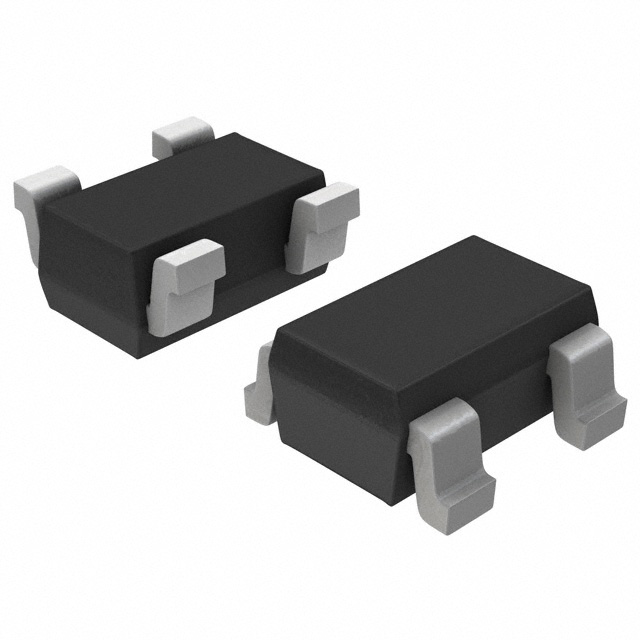

ON Semiconductor NCP582LSQ28T1G	95 µA	6 V	SC-82A SOT-343	Over Current	SC-82AB	60 dB 70 dB	1	Positive	150 mA	Surface Mount	Enable	0.35 V	2.8 V	1.81 mOhm	85 °C	-40 °C
ON Semiconductor NCP582LSQ25T1G	95 µA	6 V	SC-82A SOT-343	Over Current	SC-82AB	60 dB 70 dB	1	Positive	150 mA	Surface Mount	Enable	0.5 V	2.5 V	1.81 mOhm	85 °C	-40 °C
ON Semiconductor NCP582DXV30T2G	95 µA	6 V	SOT-563 SOT-666	Over Current	SOT-563	60 dB 70 dB	1	Positive	150 mA	Surface Mount	Enable	0.35 V		1.81 mOhm	85 °C	-40 °C
ON Semiconductor NCP582LSQ30T1G	95 µA	6 V	SC-82A SOT-343	Over Current	SC-82AB	60 dB 70 dB	1	Positive	150 mA	Surface Mount	Enable	0.35 V		1.81 mOhm	85 °C	-40 °C
ON Semiconductor NCP582DSQ33T1G	95 µA	6 V	SC-82A SOT-343	Over Current	SC-82AB	60 dB 70 dB	1	Positive	150 mA	Surface Mount	Enable	0.35 V	3.3 V	1.81 mOhm	85 °C	-40 °C
ON Semiconductor NCP582LXV15T2G	95 µA	6 V	SOT-563 SOT-666	Over Current	SOT-563	60 dB 70 dB	1	Positive	150 mA	Surface Mount	Enable	0.7 V	1.5 V	1.81 mOhm	85 °C	-40 °C
ON Semiconductor NCP582LSQ15T1G	95 µA	6 V	SC-82A SOT-343	Over Current	SC-82AB	60 dB 70 dB	1	Positive	150 mA	Surface Mount	Enable	0.7 V	1.5 V	1.81 mOhm	85 °C	-40 °C
ON Semiconductor NCP582LXV25T2G	95 µA	6 V	SOT-563 SOT-666	Over Current	SOT-563	60 dB 70 dB	1	Positive	150 mA	Surface Mount	Enable	0.5 V	2.5 V	1.81 mOhm	85 °C	-40 °C
ON Semiconductor NCP582DXV15T2G	95 µA	6 V	SOT-563 SOT-666	Over Current	SOT-563	60 dB 70 dB	1	Positive	150 mA	Surface Mount	Enable	0.7 V	1.5 V	1.81 mOhm	85 °C	-40 °C
ON Semiconductor NCP582DSQ15T1G	95 µA	6 V	SC-82A SOT-343	Over Current	SC-82AB	60 dB 70 dB	1	Positive	150 mA	Surface Mount	Enable	0.7 V	1.5 V	1.81 mOhm	85 °C	-40 °C

Catalog

Linear Voltage Regulator, LDO, Low Noise, 150 mA, with Enable

Key Features

• UltraLow Dropout Voltage of 220 mV at 150 mA

• Excellent Line and Load Regulation

• High Output Voltage Accuracy of +/-2%

• Low Supply Current of 75 uA

• Excellent Power Supply Rejection Ratio

• Wide Operating Voltage of 1.5 V to 3.3 V

• Low Standby Current of 0.1 uA

• Fast Dynamic Performance

• Fold Back Protection Circuit

• Low Temperature Drift Coefficient on the Output Voltage

Description

The NCP582 low dropout (LDO) linear voltage regulator is designed for portable battery powered applications which require precise output voltage accuracy, low supply current and high ripple rejection. These devices feature an enable function and are offered in active low and active high with auto discharge.
