LB11961 Series

Catalog

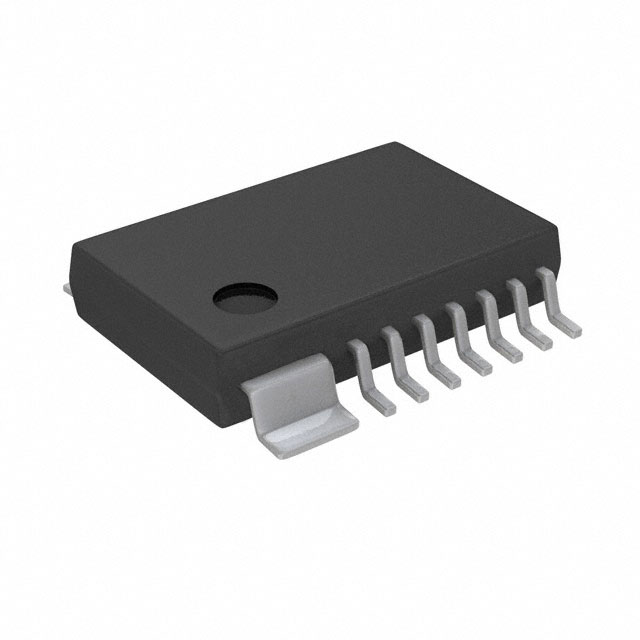

IC MOTOR DRIVER 4.5V-16V 14HSSOP

Part	Technology	Motor Type - AC, DC	Package / Case [custom]	Package / Case	Package / Case	Interface	Applications	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Supplier Device Package	Current - Output	Mounting Type	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]
ON Semiconductor LB11961RM-MPB-E	Bipolar	Brushed DC	4.4 mm	14-LSSOP	0.173 in 2 Lead	Parallel	Fan Motor Driver	Driver - Fully Integrated Control and Power Stage	4.5 V	16 V	16 V	4.5 V	14-HSSOP	1 A	Surface Mount	Half Bridge (2)	90 °C	-30 °C
ON Semiconductor LB11961FML-MPB-E	Bipolar	Brushed DC	4.4 mm	14-LSSOP	0.173 in 2 Lead	Parallel	Fan Motor Driver	Driver - Fully Integrated Control and Power Stage	4.5 V	16 V	16 V	4.5 V	14-HSSOP	1 A	Surface Mount	Half Bridge (2)	90 °C	-30 °C
ON Semiconductor LB11961-MPB-H	Bipolar	Brushed DC	4.4 mm	14-LSSOP	0.173 in 2 Lead	Parallel	Fan Motor Driver	Driver - Fully Integrated Control and Power Stage	4.5 V	16 V	16 V	4.5 V	14-HSSOP	1 A	Surface Mount	Half Bridge (2)	90 °C	-30 °C
ON Semiconductor LB11961V-TLM-E	Bipolar	Brushed DC		16-LSSOP		Parallel	Fan Motor Driver	Driver - Fully Integrated Control and Power Stage	4.5 V	16 V	16 V	4.5 V	16-SSOP	1 A	Surface Mount	Half Bridge (2)	90 °C	-30 °C
ON Semiconductor LB11961RM-TLM3-H	Bipolar	Brushed DC	4.4 mm	14-LSSOP	0.173 in 2 Lead	Parallel	Fan Motor Driver	Driver - Fully Integrated Control and Power Stage	4.5 V	16 V	16 V	4.5 V	14-HSSOP	1 A	Surface Mount	Half Bridge (2)	90 °C	-30 °C
