CLS-RC11 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

SWITCH ROCKER SPST 10A 125V

Part	Color - Actuator/Cap	Actuator Marking	Circuit	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Type	Mounting Type	Illumination Type, Color	Termination Style	Voltage Rating - DC

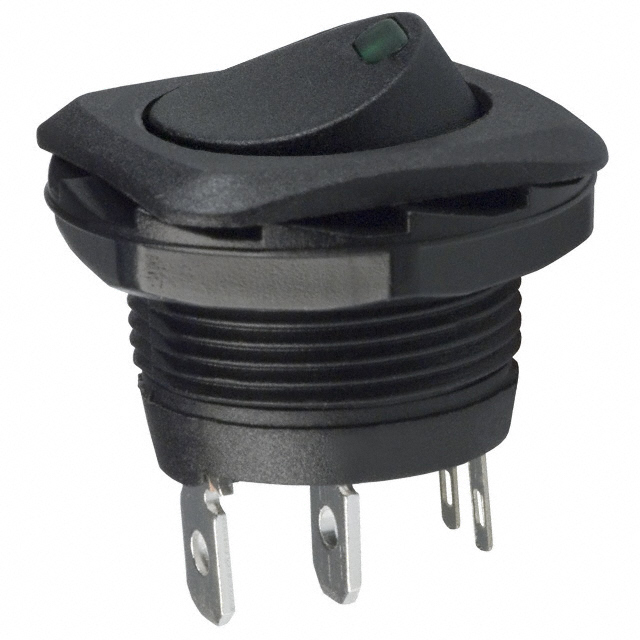

Lumex Opto/Components Inc. CLS-RC11A125191G	Black	No Marking	SPST	On-Off	125 V	20.2 mm	10 A	Round - Illuminated	Panel Mount Threaded Body with Nut	Green LED	Quick Connect

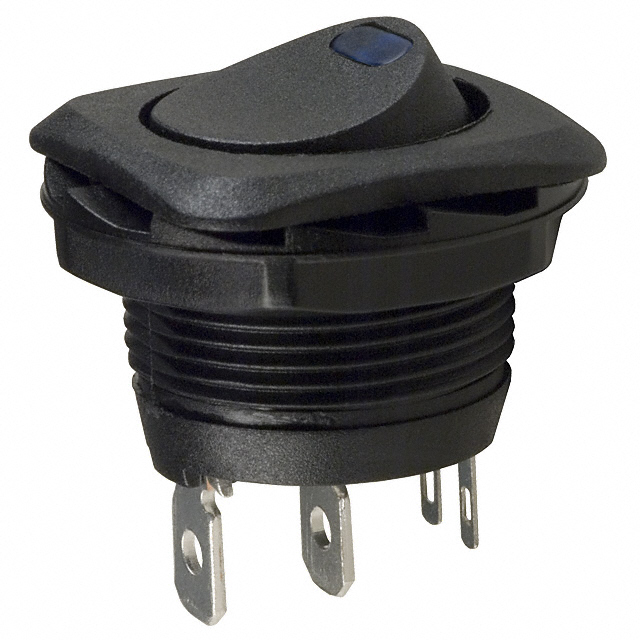

Lumex Opto/Components Inc. CLS-RC11A125191B	Black	No Marking	SPST	On-Off	125 V	20.2 mm	10 A	Round - Illuminated	Panel Mount Threaded Body with Nut	Blue LED	Quick Connect
Lumex Opto/Components Inc. CLS-RC11A125190Y	Black	No Marking	SPST	On-Off	125 V	20.2 mm	10 A	Round - Illuminated	Panel Mount Snap-In	LED Yellow	Quick Connect

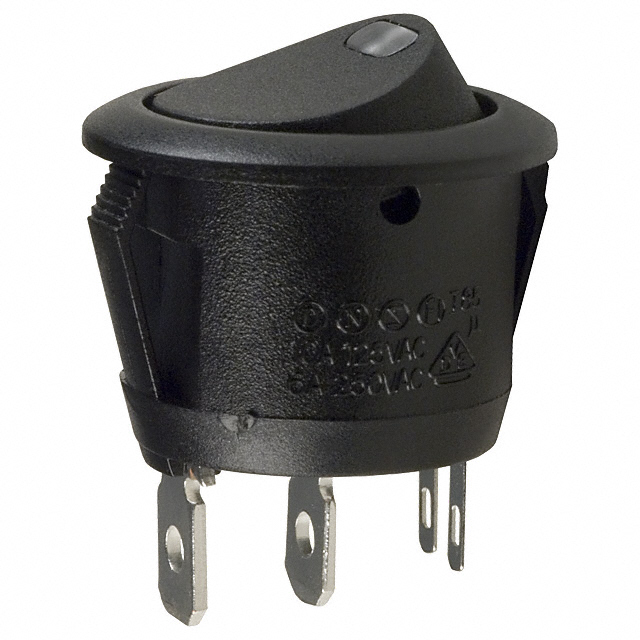

Lumex Opto/Components Inc. CLS-RC11A125190R	Black	No Marking	SPST	On-Off	125 V	20.2 mm	10 A	Round - Illuminated	Panel Mount Snap-In	LED Red	Quick Connect

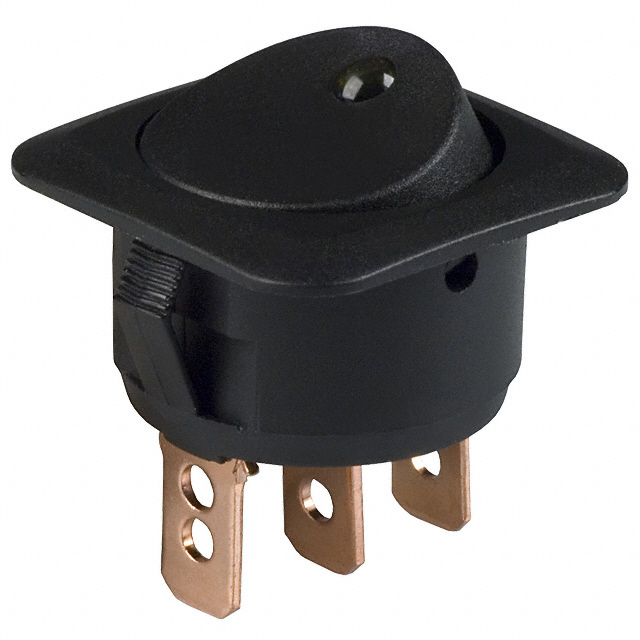

Lumex Opto/Components Inc. CLS-RC11A12250Y	Black	No Marking	SPST	On-Off		24 mm	25 A	Round - Illuminated	Panel Mount Snap-In	LED Yellow	Quick Connect - 0.250" (6.3mm)	12 V

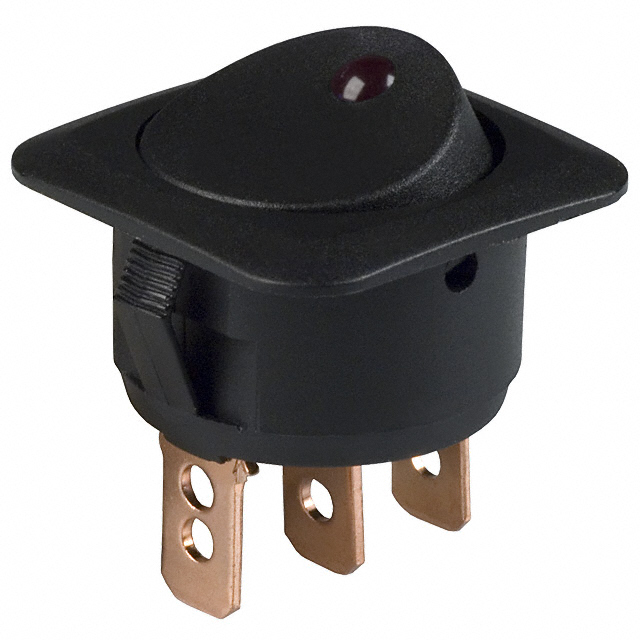

Lumex Opto/Components Inc. CLS-RC11A12250R	Black	No Marking	SPST	On-Off		24 mm	25 A	Round - Illuminated	Panel Mount Snap-In	LED Red	Quick Connect - 0.250" (6.3mm)	12 V

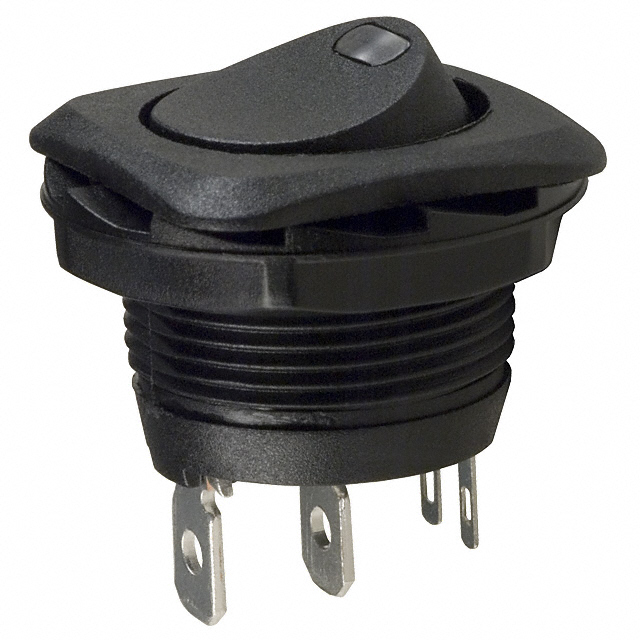

Lumex Opto/Components Inc. CLS-RC11A125191R	Black	No Marking	SPST	On-Off	125 V	20.2 mm	10 A	Round - Illuminated	Panel Mount Threaded Body with Nut	LED Red	Quick Connect
Lumex Opto/Components Inc. CLS-RC11A125191Y	Black	No Marking	SPST	On-Off	125 V	20.2 mm	10 A	Round - Illuminated	Panel Mount Threaded Body with Nut	LED Yellow	Quick Connect
Lumex Opto/Components Inc. CLS-RC11A12250B	Black	No Marking	SPST	On-Off		24 mm	25 A	Round - Illuminated	Panel Mount Snap-In	Blue LED	Quick Connect - 0.250" (6.3mm)	12 V

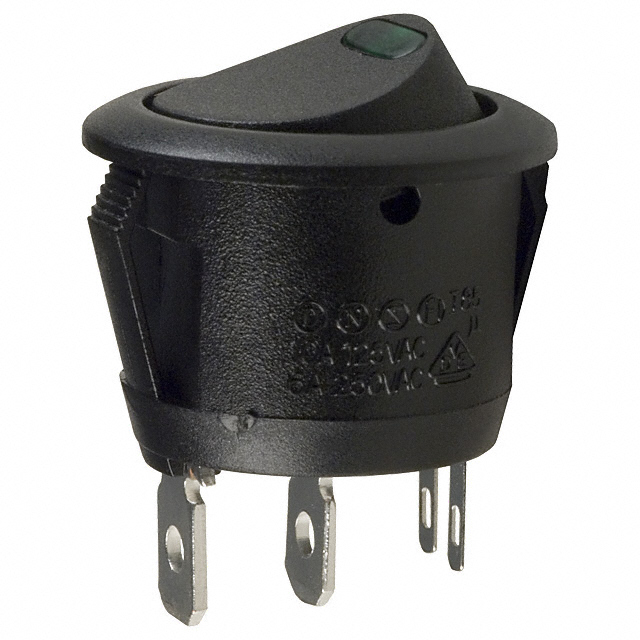

Lumex Opto/Components Inc. CLS-RC11A125190G	Black	No Marking	SPST	On-Off	125 V	20.2 mm	10 A	Round - Illuminated	Panel Mount Snap-In	Green LED	Quick Connect
