D25P24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

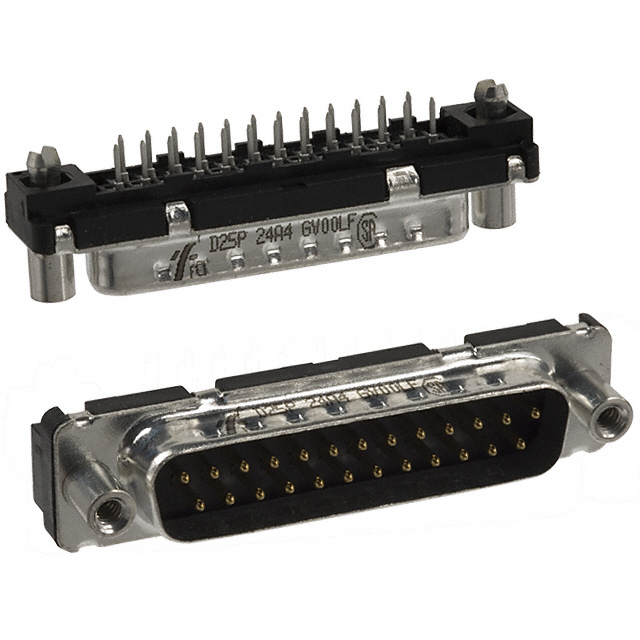

DSUB STR STB 25 PIN
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Rows | Termination | Current Rating (Amps) | Mounting Type | Contact Material | Material Flammability Rating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Type | Connector Style | Color | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Flange Feature | Shell Material, Finish | Contact Finish Thickness | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 0.76 Ám | 30 Áin | Gold | 2 | Solder | 5 A | Through Hole | Phosphor Bronze | UL94 V-0 | 300 VDC | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | D-Sub | Black | Grounding Indents | B DB | 3 | Male Pins Plug | Housing/Shell (Unthreaded) | |||
Amphenol ICC (FCI) | Gold | 2 | Solder | 5 A | Through Hole | 300 VDC | -55 °C | 125 °C | Signal | D-Sub | Board Guide Grounding Indents | B DB | 3 | Male Pins Plug | Female Screwlock (4-40) Mating Side | Nickel Plated Steel | ||||||||
Amphenol ICC (FCI) | 2 | Solder | 5 A | Through Hole | Brass Phosphor Bronze | 300 VDC | -55 °C | 125 °C | Signal | D-Sub | Grounding Indents | B DB | 3 | Male Pins Plug | Housing/Shell (M3) | Nickel Plated Steel | ||||||||
Amphenol ICC (FCI) | Gold | 2 | Solder | 5 A | Through Hole | Phosphor Bronze | UL94 V-0 | 300 VDC | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | D-Sub | Black | Grounding Indents | B DB | 3 | Male Pins Plug | Housing/Shell (Unthreaded) | Flash | ||||
Amphenol ICC (FCI) | 0.76 Ám | 30 Áin | Gold | 2 | Solder | 5 A | Through Hole | Copper Alloy | UL94 V-0 | 300 VDC | Liquid Crystal Polymer (LCP) Glass Filled | Signal | D-Sub | Black | Board Guide Grounding Indents | B DB | 3 | Male Pins Plug | Female Screwlock (4-40) Mating Side | Nickel Plated Steel | -55 °C | |||
Amphenol ICC (FCI) | 0.76 Ám | 30 Áin | Gold | 2 | Solder | 5 A | Through Hole | Phosphor Bronze | UL94 V-0 | 300 VDC | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | D-Sub | Black | Grounding Indents | B DB | 3 | Male Pins Plug | Female Screwlock (4-40) Mating Side | |||
Amphenol ICC (FCI) | Gold | 2 | Solder | 5 A | Through Hole | Phosphor Bronze | UL94 V-0 | 300 VDC | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | D-Sub | Black | Board Lock Grounding Indents | B DB | 3 | Male Pins Plug | Housing/Shell (4-40) | Flash | ||||
 Amphenol ICC (FCI) | Gold | 2 | Solder | 5 A | Through Hole | Phosphor Bronze | UL94 V-0 | 300 VDC | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | D-Sub | Black | Board Lock Grounding Indents | B DB | 3 | Male Pins Plug | Female Screwlock (4-40) Mating Side | Flash | ||||
Amphenol ICC (FCI) | 0.76 Ám | 30 Áin | Gold | 2 | Solder | 5 A | Through Hole | Phosphor Bronze | UL94 V-0 | 300 VDC | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | D-Sub | Black | Grounding Indents | B DB | 3 | Male Pins Plug | Housing/Shell (Unthreaded) | Steel Tin-Nickel Plated | ||
Amphenol ICC (FCI) | 0.76 Ám | 30 Áin | Gold | 2 | Solder | 5 A | Through Hole | Phosphor Bronze | UL94 V-0 | 300 VDC | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | D-Sub | Black | Board Lock Grounding Indents | B DB | 3 | Male Pins Plug | Housing/Shell (4-40) | Steel Tin-Nickel Plated |
