DH252 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB 4PST-2NO/2NC 2A 125V
| Part | Circuit | Electrical Life | Voltage Rating - DC | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Type | Voltage Rating - AC | Actuator Type | Mounting Type | Features | Ingress Protection | Actuator Marking | Termination Style | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

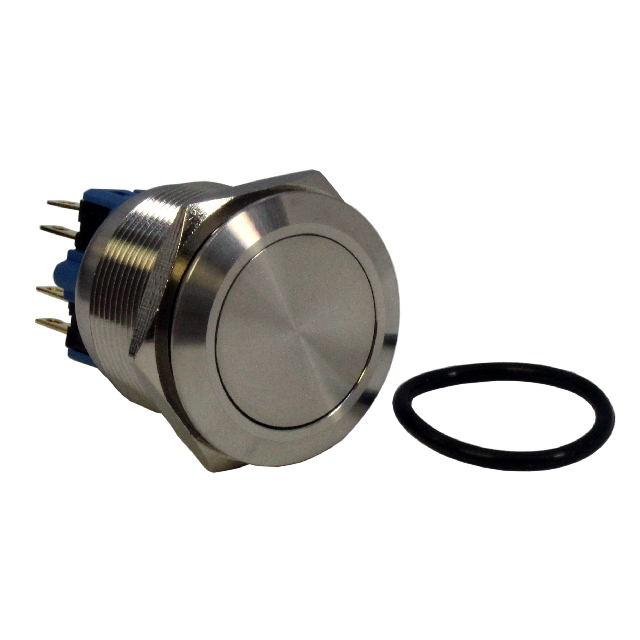

 CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | 24 V | 2 A | -25 °C | 70 °C | Off-On On-Off | Anti-Vandal | 125 V | Button Flush Round | Panel Mount Front | Stainless Steel | IP67 - Dust Tight Waterproof | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 25 mm | Silver | ||
 CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | 24 V | 2 A | -25 °C | 70 °C | Off-Mom On-Mom | Anti-Vandal Illuminated | 125 V | Button Flush Round | Panel Mount Front | Stainless Steel | IP67 - Dust Tight Waterproof | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 25 mm | Silver | Green/Red LED | |
 CIT Relay and Switch | DPST-NO/NC | 50000 Cycles | 24 V | 2 A | -25 °C | 70 °C | Off-On On-Off | Anti-Vandal Illuminated | 125 V | Button Flush Round | Panel Mount Front | Stainless Steel | IP67 - Dust Tight Waterproof | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 25 mm | Silver | Blue LED | |
 CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | 24 V | 2 A | -25 °C | 70 °C | Off-Mom On-Mom | Anti-Vandal Illuminated | 125 V | Button Flush Round | Panel Mount Front | Stainless Steel | IP67 - Dust Tight Waterproof | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 25 mm | Silver | Green LED | 24 V |
 CIT Relay and Switch | DPST-NO/NC | 50000 Cycles | 24 V | 2 A | -25 °C | 70 °C | Off-On On-Off | Anti-Vandal Illuminated | 125 V | Button Flush Round | Panel Mount Front | IP67 - Dust Tight Waterproof | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 25 mm | Black | Blue LED | ||
CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | 24 V | 2 A | -25 °C | 70 °C | Off-Mom On-Mom | Anti-Vandal Illuminated | 125 V | Button Flush Round | Panel Mount Front | Stainless Steel | IP67 - Dust Tight Waterproof | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 25 mm | Silver | Green LED | |

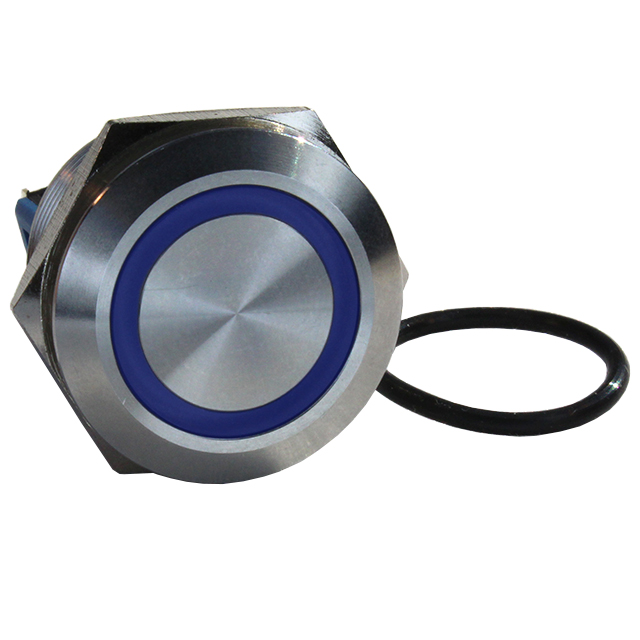

 CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | 24 V | 2 A | -25 °C | 70 °C | Off-Mom On-Mom | Anti-Vandal Illuminated | 125 V | Button Flush Round | Panel Mount Front | Stainless Steel | IP67 - Dust Tight Waterproof | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 25 mm | Silver | Blue LED | |
CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | 24 V | 2 A | -25 °C | 70 °C | Off-Mom On-Mom | Anti-Vandal | 125 V | Button Flush Round | Panel Mount Front | IP67 - Dust Tight Waterproof | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 25 mm | Black | |||

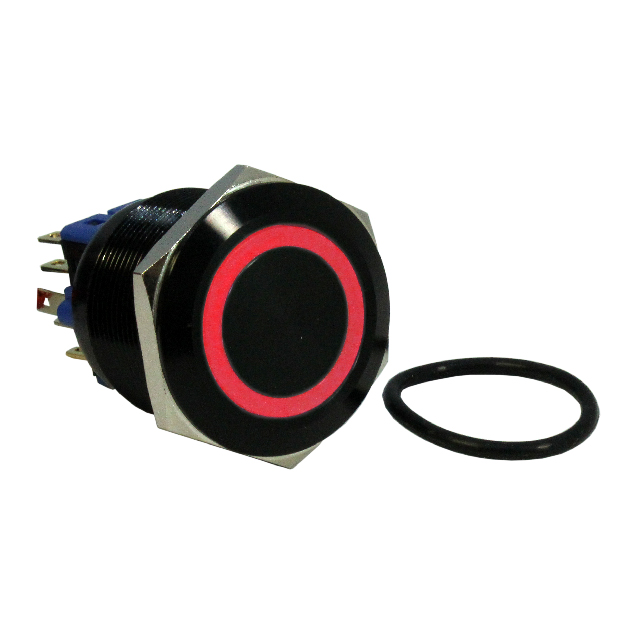

 CIT Relay and Switch | DPST-NO/NC | 50000 Cycles | 24 V | 2 A | -25 °C | 70 °C | Off-On On-Off | Anti-Vandal Illuminated | 125 V | Button Flush Round | Panel Mount Front | IP67 - Dust Tight Waterproof | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 25 mm | Black | LED Red | ||

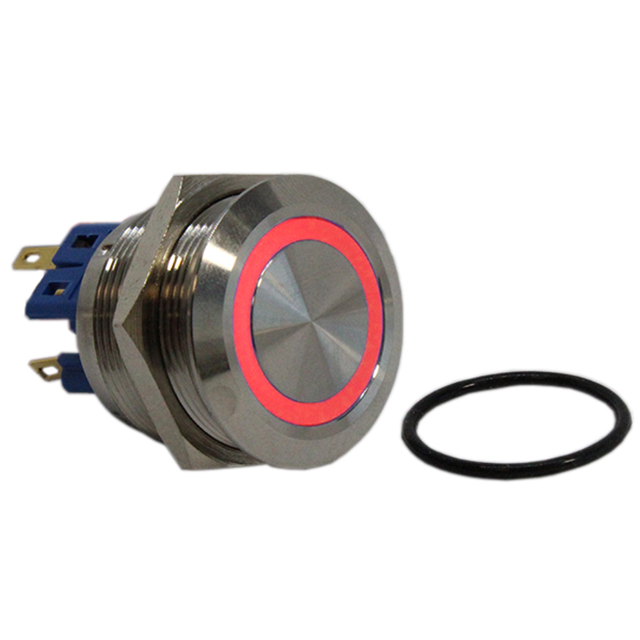

 CIT Relay and Switch | 4PST-2NO/2NC DPST-NO/NC | 50000 Cycles | 24 V | 2 A | -25 °C | 70 °C | Off-Mom On-Mom | Anti-Vandal Illuminated | 125 V | Button Flush Round | Panel Mount Front | Stainless Steel | IP67 - Dust Tight Waterproof | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 25 mm | Silver | LED Red | 12 VDC |
