19360241 Series

Manufacturer: HARTING

Catalog

24B EX HOOD SIDE ENTRY, SINGLE LEVER, LOW CONSTRUCTION, M32 (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Style	Connector Type	Housing Material	Ingress Protection	Size	Housing Finish	Thread Size	Lock Location	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]

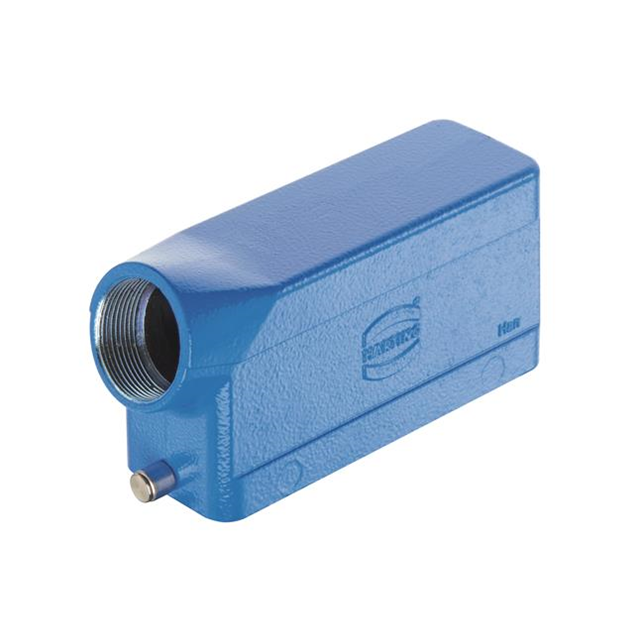

HARTING 19360241542	43 mm	120 mm	2.461 "	62.5 mm	4.724 in	1.693 "	Side Entry	Hood	Zinc Die Cast	IP65 - Dust Tight Water Resistant	24 B	Powder Coated	M32	Locking Clip (1) on Base Bottom	Blue	-20 ░C	40 °C
HARTING 19360241521							Side Entry	Hood	Zinc Die Cast	IP65 - Dust Tight Water Resistant	24 B	Powder Coated	M25	Locking Clip (2) on Base Bottom	Blue	-20 ░C	40 °C
HARTING 19360241541	43 mm	120 mm	2.461 "	62.5 mm	4.724 in	1.693 "	Side Entry	Hood	Zinc Die Cast	IP65 - Dust Tight Water Resistant	24 B	Powder Coated	M25	Locking Clip (1) on Base Bottom	Blue	-20 ░C	40 °C
HARTING 19360241522							Side Entry	Hood	Zinc Die Cast	IP65 - Dust Tight Water Resistant	24 B	Powder Coated	M32	Locking Clip (2) on Base Bottom	Blue	-20 ░C	40 °C
HARTING 19360241421	43 mm	120 mm	2.165 "	55 mm	4.724 in	1.693 "	Top Entry	Hood	Zinc Die Cast	IP65 - Dust Tight Water Resistant	24 B	Powder Coated	M25	Locking Clip (2) on Base Bottom	Blue	-20 ░C	40 °C

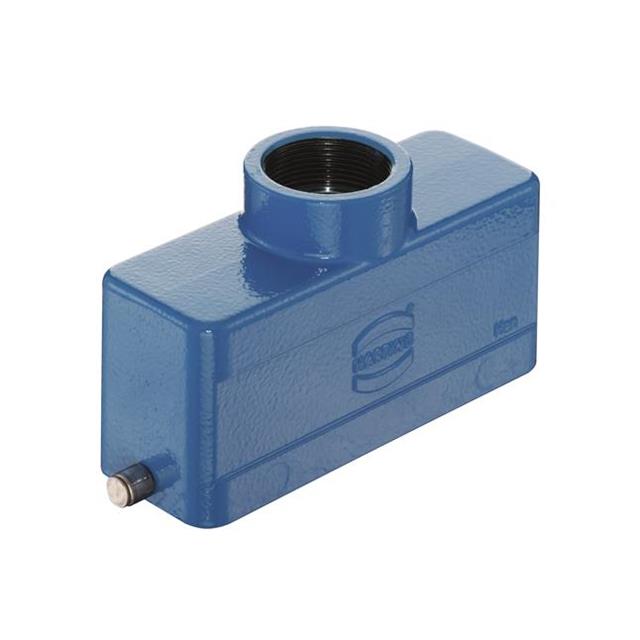

HARTING 19360241442							Top Entry	Hood	Zinc Die Cast	IP65 - Dust Tight Water Resistant	24 B	Powder Coated	M32	Locking Clip (1) on Base Bottom	Blue	-20 ░C	40 °C
