GRPB032 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 6POS 1.27MM

Part	Contact Finish Thickness - Mating	Contact Shape	Shrouding	Contact Type	Termination	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Style	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Material Flammability Rating	Fastening Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Number of Rows	Insulation Material	Connector Type	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Overall Contact Length [x]	Overall Contact Length

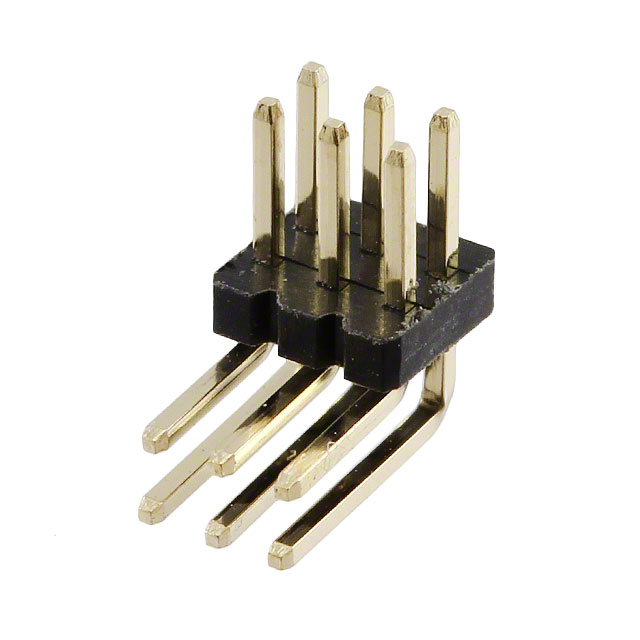

Sullins Connector Solutions GRPB032MWCN-RC	Flash	Square	Unshrouded	Male Pin	Solder	2.5 mm	0.098 in	3 mm	0.118 in	0.05 in	1.27 mm	Board to Board Cable	Through Hole Right Angle	All	Gold	UL94 V-0	Push-Pull	Brass	0.05 in	1.27 mm	Gold	2	Nylon 9T Polyamide (PA9T)	Header	0.134 in	3.4 mm	Flash	6	-40 °C	105 ░C
Sullins Connector Solutions GRPB032VWQP-RC	Flash	Square	Unshrouded	Male Pin	Solder			3 mm	0.118 in	0.05 in	1.27 mm	Board to Board Cable	Surface Mount	All	Gold	UL94 V-0	Push-Pull	Brass	0.05 in	1.27 mm	Gold	2	Nylon 9T Polyamide (PA9T)	Header	0.039 "	1 mm	Flash	6	-40 °C	105 ░C	Board Guide
Sullins Connector Solutions GRPB032VWQS-M81RC	Flash	Square	Unshrouded	Male Pin	Solder			3 mm	0.118 in	0.05 in	1.27 mm	Board to Board Cable	Surface Mount	All	Gold	UL94 V-0	Push-Pull	Brass	0.05 in	1.27 mm	Gold	2	Nylon 9T Polyamide (PA9T)	Header	0.039 "	1 mm	Flash	6	-40 °C	105 ░C	Pick and Place

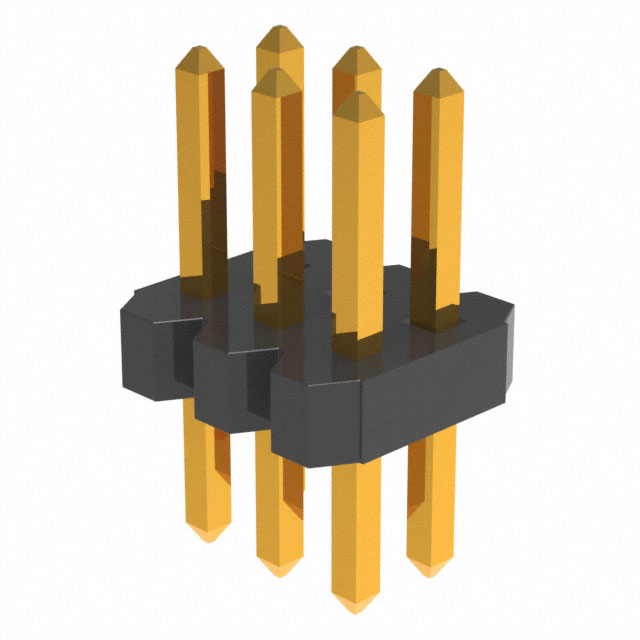

Sullins Connector Solutions GRPB032VWVN-RC	Flash	Square	Unshrouded	Male Pin	Solder	2.3 mm	0.091 in	3 mm	0.118 in	0.05 in	1.27 mm	Board to Board Cable	Through Hole	All	Gold	UL94 V-0	Push-Pull	Brass	0.05 in	1.27 mm	Gold	2	Nylon 9T Polyamide (PA9T)	Header	0.039 "	1 mm	Flash	6	-40 °C	105 ░C		0.248 in	6.3 mm
