J80029 Series
Manufacturer: Telegartner Inc
Beta
⌘K
CU-CN M12D-CS SCT FIELD C5 D5-8
| Part | Contact Material | Backshell Material, Plating | Insert Material [custom] | Insert Material [custom] | Applications | Fastening Type | Number of Positions | Primary Material | Shell Finish | Shielding | Termination | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Voltage Rating | Shell Material | Ingress Protection | Color | Contact Finish - Mating | Material Flammability Rating | Current Rating (Amps) | Features | Orientation | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Connector Type | Mounting Feature | Orientation [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

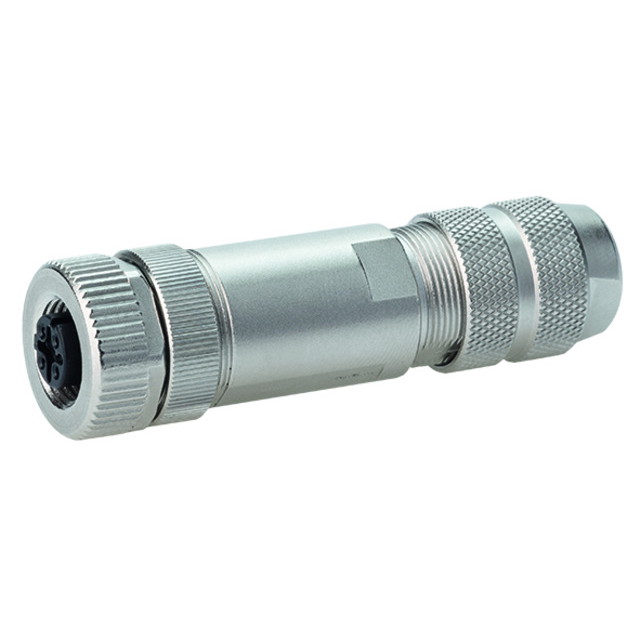

 Telegartner Inc | Brass | Brass and Zinc Die Cast Nickel | Nylon | Polyamide (PA) | Industrial | Threaded | 4 | Metal | Nickel | Unshielded | Screw | Free Hanging (In-Line) | 85 °C | -40 C | M12-4 | 250 V | Brass and Zinc Die Cast | IP67 - Dust Tight Waterproof | Silver | Gold | UL94 HB | 4 A | Backshell Coupling Nut | D | 0.315 in | 8 mm | 5 mm | 0.197 in | Plug Female Sockets | ||

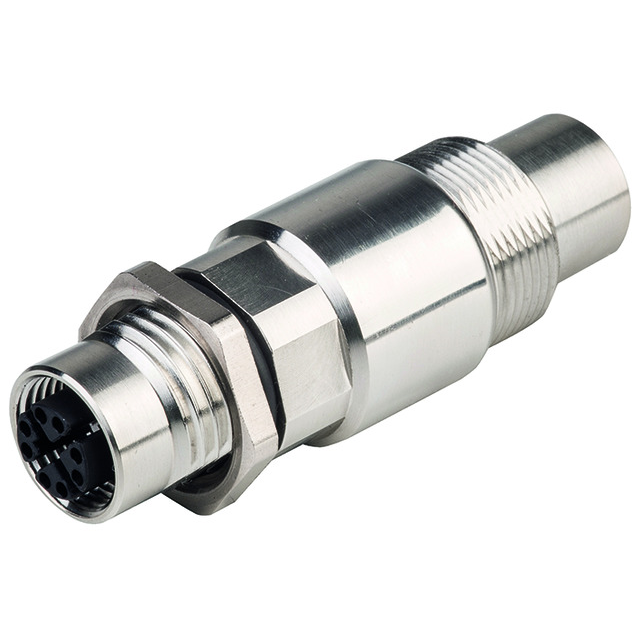

 Telegartner Inc | Bronze | Brass Nickel | Nylon | Polyamide (PA) | Industrial | Threaded | 8 | Metal | Nickel | Unshielded | Free Hanging (In-Line) Panel Mount | 85 °C | -40 C | M12-8 | 50 VAC 60 VDC | Brass | IP67 - Dust Tight Waterproof | Silver | Gold | UL94 V-0 | 0.5 A | Backshell | Plug Female Sockets | Bulkhead - Front Side Nut | X |
