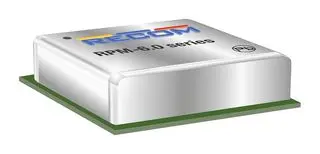

RPM-6.0 Series
Manufacturer: Recom Power
Beta
⌘K
NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 1 OUTPUT, 30 W, 5 V, 6 A
| Part | Efficiency | Features | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Current - Output (Max) [Max] | Applications | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 99 % | OCP OTP Remote On/Off SCP UVLO | 1 | -40 °C | 85 °C | 5 V | 6 A | ITE (Commercial) | 15 V | 4 V | 3.8 mm | 0.48 in | 0.15 in | 12.2 mm | 0.48 in | 12.2 mm | 25-BLGA Module | Non-Isolated PoL Module | Surface Mount |
Recom Power | 99 % | OCP OTP Remote On/Off SCP UVLO | 1 | -40 °C | 85 °C | 5 V | 6 A | ITE (Commercial) | 15 V | 4 V | 3.8 mm | 0.48 in | 0.15 in | 12.2 mm | 0.48 in | 12.2 mm | 25-BLGA Module | Non-Isolated PoL Module | Surface Mount |
Recom Power | 97 % | OCP OTP Remote On/Off SCP UVLO | 1 | -40 °C | 85 °C | 3.3 V | 6 A | ITE (Commercial) | 15 V | 4 V | 3.8 mm | 0.48 in | 0.15 in | 12.2 mm | 0.48 in | 12.2 mm | 25-BLGA Module | Non-Isolated PoL Module | Surface Mount |
 Recom Power | 97 % | OCP OTP Remote On/Off SCP UVLO | 1 | -40 °C | 85 °C | 3.3 V | 6 A | ITE (Commercial) | 15 V | 4 V | 3.8 mm | 0.48 in | 0.15 in | 12.2 mm | 0.48 in | 12.2 mm | 25-BLGA Module | Non-Isolated PoL Module | Surface Mount |
