2232047 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

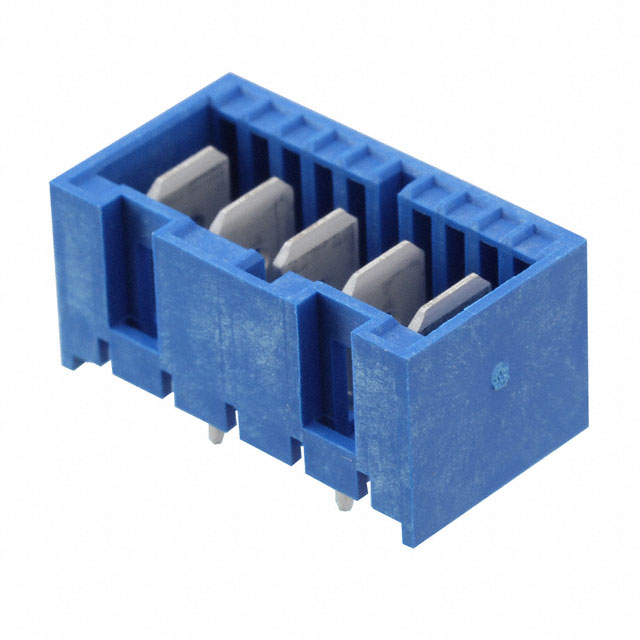

COMBINATION LINE CONNECTOR, 5 CONTACT(S), MALE, SOLDER TERMINAL
| Part | Contact Material | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Termination | Style | Voltage Rating | Insulation Material | Insulation Color | Material Flammability Rating | Contact Finish - Post | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Fastening Type | Applications | Features | Mounting Type | Connector Type | Insulation Height | Insulation Height | Contact Shape | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Copper Alloy | 3.5 mm | 0.138 in | All | 5 mm | 0.197 " | Solder | Board to Cable/Wire | 250 VAC | Nylon Polyamide (PA) | Blue | UL94 V-0 | Tin | 1 | -40 °C | 120 °C | Tab | Latch Holder | General Purpose | Board Guide Glow Wire Compliant | Through Hole | Header | 12.8 mm | 0.504 in | Rectangular | Shrouded - 4 Wall |
