REC30-S_D Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W 18-36VIN 3.4VOUT 6000MA

Part	Type	Control Features	Efficiency	Mounting Type	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Current - Output (Max) [Max]	Features	Power (Watts)	Current - Output (Max)	Voltage - Output 2

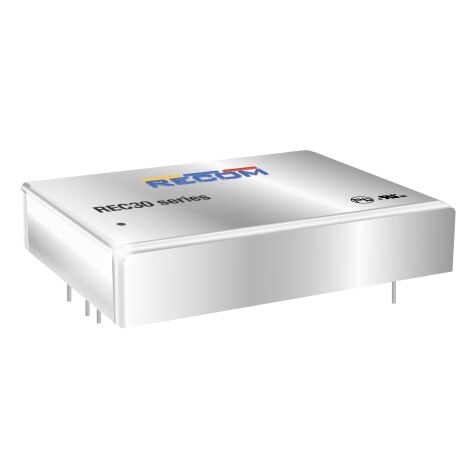

Recom Power REC30-243.4S	Isolated Module	Active High Enable	87 %	Through Hole	3.4 V	1	1.6 kV	ITE (Commercial)	85 °C	-40 C	36 V	18 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	8-DIP Module 6 Leads	6 A	OVP Remote On/Off SCP UVLO	30 Watts
Recom Power REC30-2415S	Isolated Module	Active High Enable	89 %	Through Hole	15 V	1	1.6 kV	ITE (Commercial)	85 °C	-40 C	36 V	18 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	8-DIP Module 6 Leads	2 A	OVP Remote On/Off SCP UVLO	30 Watts

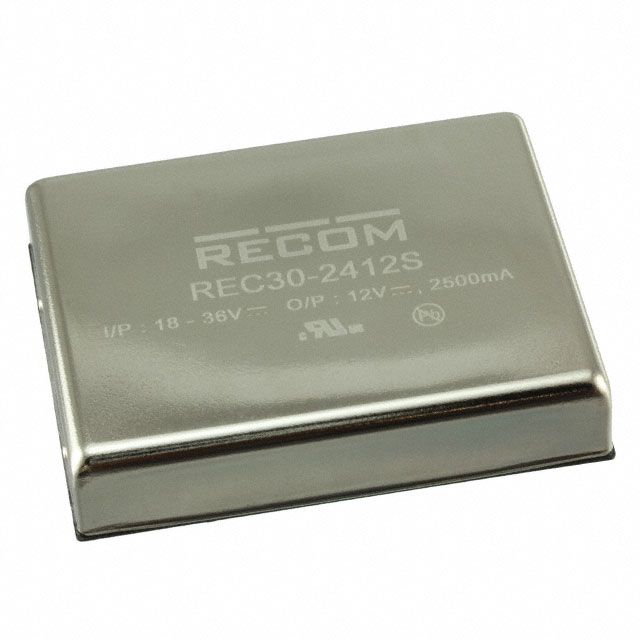

Recom Power REC30-2412S	Isolated Module	Active High Enable	90 %	Through Hole	12 V	1	1.6 kV	ITE (Commercial)	85 °C	-40 C	36 V	18 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	8-DIP Module 6 Leads	2.5 A	OVP Remote On/Off SCP UVLO	30 Watts
Recom Power REC30-485.1S	Isolated Module	Active High Enable		Through Hole	5.1 V	1	1.6 kV	ITE (Commercial)	85 °C	-40 C	75 V	36 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	8-DIP Module 6 Leads	6 A	OVP Remote On/Off SCP UVLO	30 Watts
Recom Power REC30-125.1S	Isolated Module	Active High Enable	87 %	Through Hole	5.1 V	1	1.6 kV	ITE (Commercial)	85 °C	-40 C	18 V	9 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	8-DIP Module 6 Leads	6 A	OVP Remote On/Off SCP UVLO	30 Watts
Recom Power REC30-245.1S	Isolated Module	Active High Enable	89 %	Through Hole	5.1 V	1	1.6 kV	ITE (Commercial)	85 °C	-40 C	36 V	18 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	8-DIP Module 6 Leads	6 A	OVP Remote On/Off SCP UVLO	30 Watts
Recom Power REC30-4815D	Isolated Module	Active High Enable	90.5 %	Through Hole	15 V	2	1.6 kV	ITE (Commercial)	85 °C	-40 C	75 V	36 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	8-DIP Module 7 Leads		OVP Remote On/Off SCP UVLO	30 Watts	1 A	-15 V
Recom Power REC30-1212D	Isolated Module	Active High Enable	87 %	Through Hole	12 V	2	1.6 kV	ITE (Commercial)	85 °C	-40 C	18 V	9 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	8-SIP Module 7 Leads		OVP Remote On/Off SCP UVLO	30 Watts	1.25 A	-12 V
Recom Power REC30-4815S	Isolated Module	Active High Enable	90.5 %	Through Hole	15 V	1	1.6 kV	ITE (Commercial)	85 °C	-40 C	75 V	36 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	8-DIP Module 6 Leads	2 A	OVP Remote On/Off SCP UVLO	30 Watts
Recom Power REC30-4812S	Isolated Module	Active High Enable	90 %	Through Hole	12 V	1	1.6 kV	ITE (Commercial)	85 °C	-40 C	75 V	36 V	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	8-DIP Module 6 Leads	2.5 A	OVP Remote On/Off SCP UVLO	30 Watts
