Reed Relays HV RELAYS
Reed Relays HV RELAYS
| Part | Coil Current | Mounting Type | Switching Voltage [Max] | Contact Form | Contact Rating (Current) | Coil Type | Must Operate Voltage | Contact Material | Must Release Voltage | Termination Style | Release Time | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

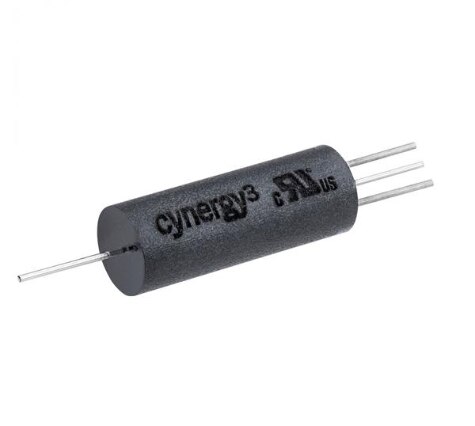

 Sensata-Crydom | 12 mA | Through Hole | 300 VAC 350 VDC | SPST-NO (1 Form A) | 1 A | Non Latching | 9 VDC | Rhodium (Rh) | 2 VDC | Axial | 0.5 ms | 1 ms | 85 °C | -40 C | 12 VDC |
 Sensata-Crydom | 12 mA | Through Hole | 140 VAC 200 VDC | SPST-NO (1 Form A) | 250 mA | Non Latching | 2.25 VDC | Rhodium (Rh) | 0.5 VDC | Axial | 0.07 ms | 85 °C | -40 C | ||
Sensata-Crydom | 12 mA | Through Hole | 300 VAC 350 VDC | SPST-NO (1 Form A) | 700 mA | Non Latching | 9 VDC | Rhodium (Rh) | 2 VDC | Axial | 0.5 ms | 1 ms | 85 °C | -40 C | 12 VDC |
Sensata-Crydom | 31.3 mA | Through Hole | 300 VAC 350 VDC | SPST-NO (1 Form A) | 700 mA | Non Latching | 3.7 VDC | Rhodium (Rh) | 1 VDC | Axial | 0.5 ms | 1 ms | 85 °C | -40 C | 5 VDC |
Sensata-Crydom | 24 mA | Through Hole | 300 VAC 350 VDC | SPST-NO (1 Form A) | 700 mA | Non Latching | 19 VDC | Rhodium (Rh) | 4 VDC | Axial | 0.5 ms | 1 ms | 85 °C | -40 C | 24 VDC |
Sensata-Crydom | 31.3 mA | Through Hole | 300 VAC 350 VDC | SPST-NO (1 Form A) | 1 A | Non Latching | 3.7 VDC | Rhodium (Rh) | 1 VDC | Axial | 0.5 ms | 1 ms | 85 °C | -40 C | 5 VDC |
Sensata-Crydom | 24 mA | Through Hole | 300 VAC 350 VDC | SPST-NO (1 Form A) | 1 A | Non Latching | 19 VDC | Rhodium (Rh) | 4 VDC | Axial | 0.5 ms | 1 ms | 85 °C | -40 C | 24 VDC |
