FS450R17 Series

Manufacturer: INFINEON

Catalog

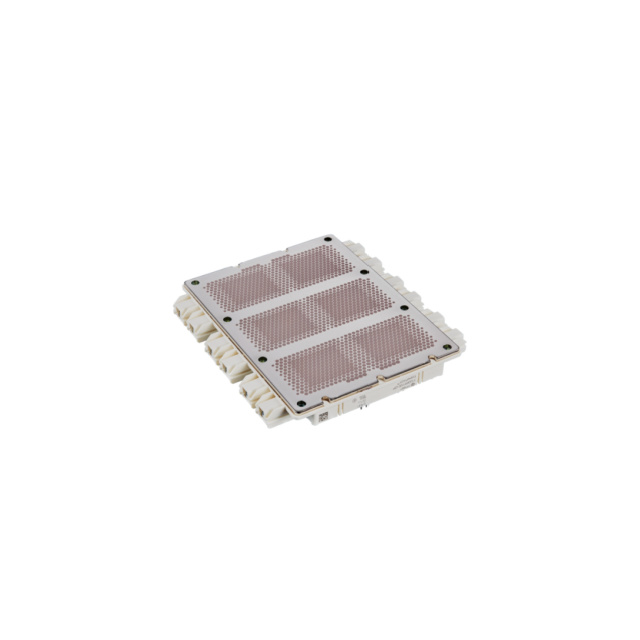

THE FS450R17KE3 IS A SIXPACK IGBT3 - E3 MODULE IN A ECONOPACK™ + B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 450 A.

Part	Mounting Type	Configuration	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Input	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Package / Case	Current - Collector Cutoff (Max) [Max]	Input Capacitance (Cies) @ Vce	Vce(on) (Max) @ Vge, Ic [Max]	Vce(on) (Max) @ Vge, Ic
INFINEON FS450R17KE3BOSA1	Chassis Mount	Full Bridge	Trench Field Stop	1700 V	Module	605 A	Standard	125 °C	-40 C	2250 W	Module	3 mA	40.5 nF	2.45 V
INFINEON FS450R17OP4BPSA1	Chassis Mount	Three Phase Inverter	Trench Field Stop	1700 V	AG-ECONOPP-2-1	450 A	Standard	150 °C	-40 °C	20 mW	Module	3 mA	37 nF		2.2 V
INFINEON FS450R17OP4PBOSA1
INFINEON FS450R17OE4PBOSA1	Chassis Mount	Full Bridge	Trench Field Stop	1700 V	Module	900 A	Standard	150 °C	-40 C	20 mW	Module	3 mA	36 nF		2.3 V
INFINEON FS450R17OE4BOSA1	Chassis Mount	Full Bridge	Trench Field Stop	1700 V	Module	630 A	Standard	150 °C	-40 C	2400 W	Module	3 mA	36 nF		2.3 V
