EN2 Series

Catalog

CIRCULAR CONNECTOR, EN2 SERIES, 2 CONTACTS, THERMOPLASTIC BODY

Part	Color	Primary Material	Fastening Type	Connector Type	Shielding	Contact Material	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Current Rating (Amps)	Mounting Type	Features	Ingress Protection	Backshell Material, Plating	Termination	Insert Material	Number of Positions	Material Flammability Rating	Voltage Rating	Applications	Orientation	Mounting Feature	Length	Length	2nd Connector Type	1st Connector Gender	Cable Material	Usage	1st Connector Type	1st Connector Number of Positions	1st Connector Number of Positions Loaded	Cable Type	1st Connector Mounting Type	Assembly Configuration
SWITCHCRAFT/CONXALL EN2C2M20G1	Black	Plastic	Bayonet Lock	Plug Male Pins	Unshielded	Copper Alloy	2.54 mm	0.1 "	3.56 mm	0.14 in	85 °C	-40 C	Gold	3.5 A	Free Hanging (In-Line)	Backshell Coupling Nut	IP66 IP67 IP68	Thermoplastic	Crimp Solder Cup	Elastomer	2	UL94 V-0	250 VAC	Communication Systems Industrial Marine Medical	Keyed

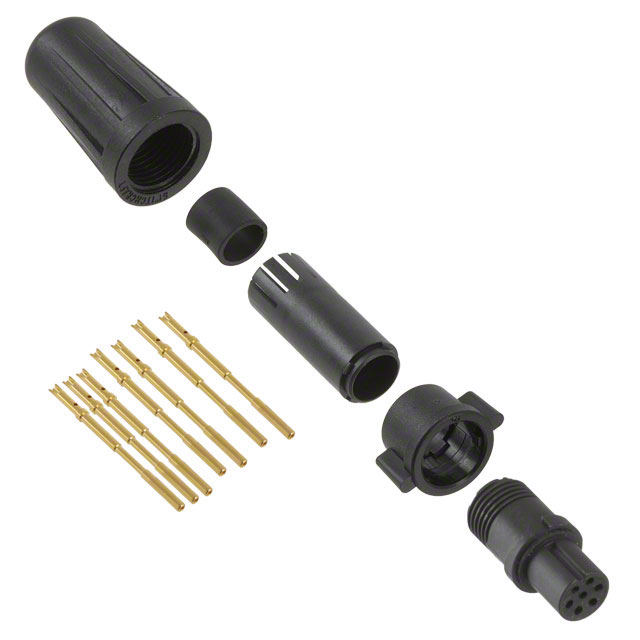

SWITCHCRAFT/CONXALL EN2C7F26G3W	Black	Plastic	Bayonet Lock	Plug Female Sockets	Unshielded	Copper Alloy	4.57 mm	0.18 "	5.59 mm	0.22 in	85 °C	-40 C	Gold		Free Hanging (In-Line)	Backshell Coupling Nut Winged	IP66 IP67 IP68	Thermoplastic	Crimp Solder Cup	Elastomer	7	UL94 V-0	125 VAC	Communication Systems Industrial Marine Medical	Keyed

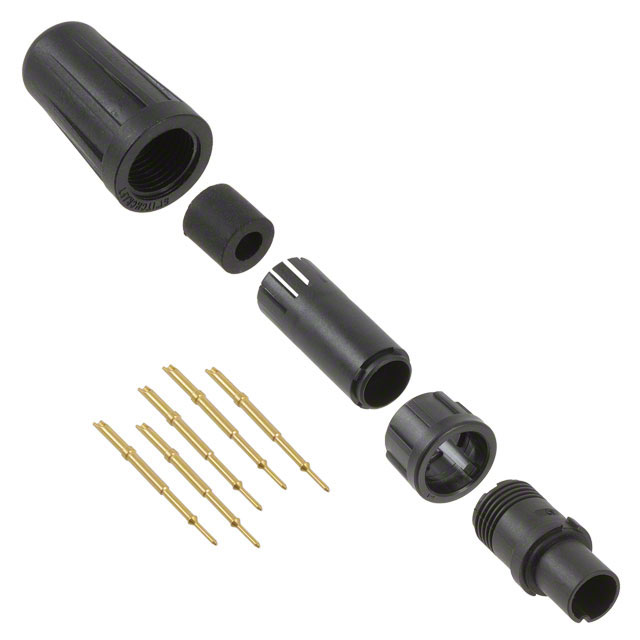

SWITCHCRAFT/CONXALL EN2C5M26G1	Black	Plastic	Bayonet Lock	Plug Male Pins	Unshielded	Copper Alloy	2.54 mm	0.1 "	3.56 mm	0.14 in	85 °C	-40 C	Gold		Free Hanging (In-Line)	Backshell Coupling Nut	IP66 IP67 IP68	Thermoplastic	Crimp Solder Cup	Elastomer	5	UL94 V-0	125 VAC	Communication Systems Industrial Marine Medical	Keyed
SWITCHCRAFT/CONXALL EN2C3F20G2W	Black	Plastic	Bayonet Lock	Plug Female Sockets	Unshielded	Copper Alloy	3.56 mm	0.14 in	4.57 mm	0.18 "	85 °C	-40 C	Gold	2 A	Free Hanging (In-Line)	Backshell Coupling Nut Winged	IP66 IP67 IP68	Thermoplastic	Crimp Solder Cup	Elastomer		UL94 V-0	125 VAC	Communication Systems Industrial Marine Medical	Keyed
SWITCHCRAFT/CONXALL EN2C4M22G3	Black	Plastic	Bayonet Lock	Plug Male Pins	Unshielded	Copper Alloy	4.57 mm	0.18 "	5.59 mm	0.22 in	85 °C	-40 C	Gold	1.5 A	Free Hanging (In-Line)	Backshell Coupling Nut	IP66 IP67 IP68	Thermoplastic	Crimp Solder Cup	Elastomer	4	UL94 V-0	125 VAC	Communication Systems Industrial Marine Medical	Keyed
SWITCHCRAFT/CONXALL EN2C3M20G1W	Black	Plastic	Bayonet Lock	Plug Male Pins	Unshielded	Copper Alloy	2.54 mm	0.1 "	3.56 mm	0.14 in	85 °C	-40 C	Gold	2 A	Free Hanging (In-Line)	Backshell Coupling Nut Winged	IP66 IP67 IP68	Thermoplastic	Crimp Solder Cup	Elastomer		UL94 V-0	125 VAC	Communication Systems Industrial Marine Medical	Keyed

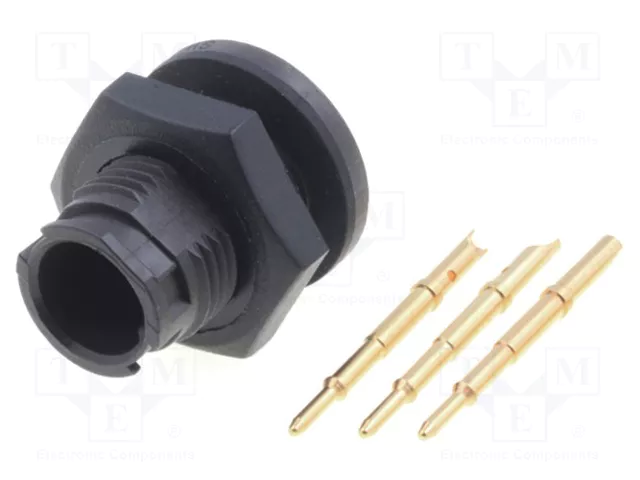

SWITCHCRAFT/CONXALL EN2P3M20	Black	Plastic	Bayonet Lock	Receptacle Male Pins	Unshielded	Copper Alloy					85 °C	-40 C	Gold	2 A	Panel Mount		IP66 IP67 IP68		Crimp Solder Cup	Elastomer		UL94 V-0	125 VAC	Communication Systems Industrial Marine Medical	Keyed	Bulkhead - Front Side Nut
SWITCHCRAFT/CONXALL CAEN2C2F07990	Black				Unshielded												IP68 - Dust Tight Waterproof										2 m	6.56 ft	Wire Leads	Female Sockets	Polyvinyl Chloride (PVC)	Industrial Environments	Plug	2	All	Round	Free Hanging (In-Line)	Standard
SWITCHCRAFT/CONXALL EN2C6F26DC	Black	Plastic	Bayonet Lock	Plug Female Sockets	Unshielded	Copper Alloy					85 °C	-40 C	Gold		Free Hanging (In-Line)	Backshell Coupling Nut	IP66 IP67 IP68	Thermoplastic	Crimp Solder Cup	Elastomer	6	UL94 V-0	125 VAC	Communication Systems Industrial Marine Medical	Keyed

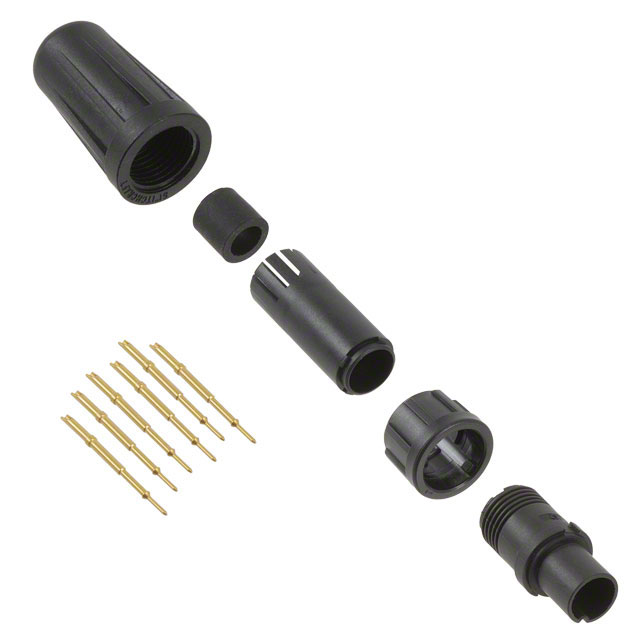

SWITCHCRAFT/CONXALL EN2C6M26G2	Black	Plastic	Bayonet Lock	Plug Male Pins	Unshielded	Copper Alloy	3.56 mm	0.14 in	4.57 mm	0.18 "	85 °C	-40 C	Gold		Free Hanging (In-Line)	Backshell Coupling Nut	IP66 IP67 IP68	Thermoplastic	Crimp Solder Cup	Elastomer	6	UL94 V-0	125 VAC	Communication Systems Industrial Marine Medical	Keyed
