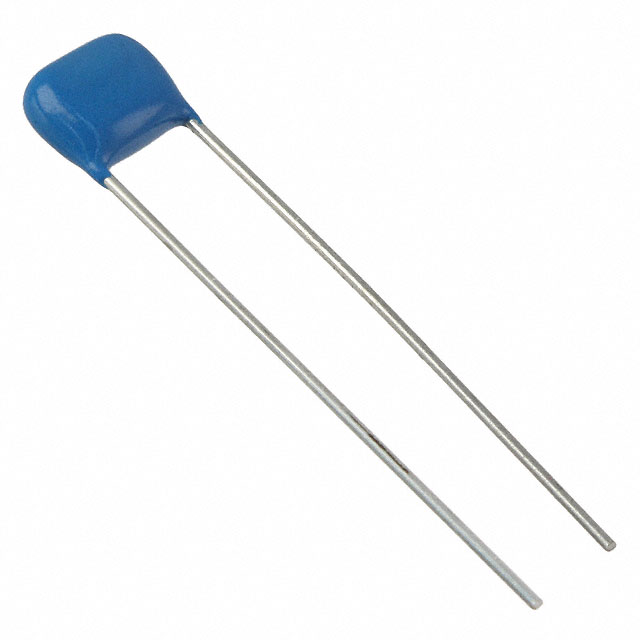

KVD Series
Manufacturer: Chemi-Con
Beta
⌘K
MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 0.22UF 100V 20% X8L AEC-Q200
| Part | Temperature Coefficient | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Capacitance | Height - Seated (Max) | Height - Seated (Max) [Max] | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Applications | Mounting Type | Lead Spacing | Lead Spacing | Tolerance | Lead Style | Ratings | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | X8L | 100 V | -55 C | 150 °C | 0.22 µF | 6 mm | 0.236 " | High Temperature | 0.197 in | 0.138 in | 3.5 mm | 5 mm | Radial | Automotive | Through Hole | 0.197 " | 5 mm | 20 % | Straight | AEC-Q200 | |
Chemi-Con | X8L | 50 VDC | -55 C | 150 °C | 6.8 µF | 0.354 in | High Temperature | 0.295 " | 0.177 " | 4.5 mm | 7.5 mm | Radial | Automotive | Through Hole | 0.197 " | 5 mm | 20 % | Straight | AEC-Q200 | 9 mm |
