109E2024 Series

Catalog

FAN AXIAL 200X70MM 24VDC WIRE

Part	Material - Frame	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	Bearing Type	Features	Static Pressure	Static Pressure	Width [x]	Termination	RPM	Voltage - Rated	Noise	Power (Watts)	Size / Dimension	Size / Dimension [diameter]	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
Sanyo Denki America Inc. 109E2024S001	Aluminum	40000 Hrs	26.4 VDC	21.6 VDC	369 CFM	10.33 m³/min	Plastic	1.9 A	Ball	Speed Sensor (Tach)	1.153 in H2O	287.1 Pa	70 mm	3 Wire Leads	3200 RPM	24 VDC	57 dB	45.6 W	Round	200 mm	Tubeaxial	70 °C	-10 °C	CSA TUV UR

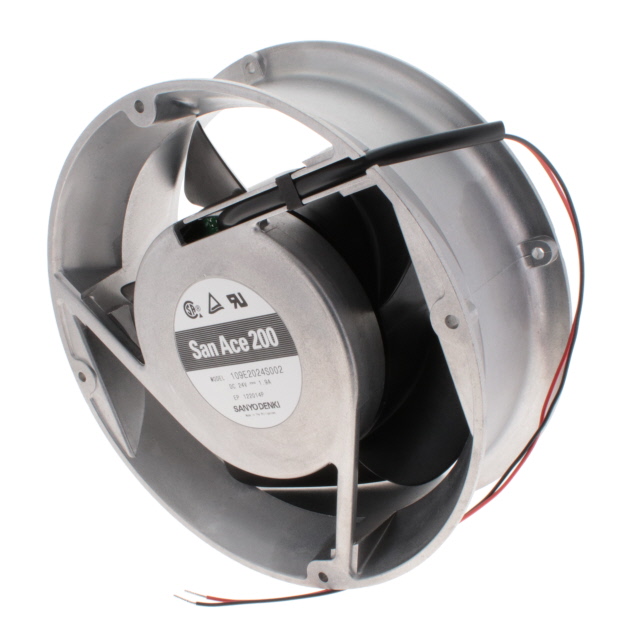

Sanyo Denki America Inc. 109E2024S002	Aluminum	40000 Hrs	26.4 VDC	21.6 VDC	369 CFM	10.33 m³/min	Plastic	1.9 A	Ball		1.153 in H2O	287.1 Pa	70 mm	2 Wire Leads	3200 RPM	24 VDC	57 dB	45.6 W	Round	200 mm	Tubeaxial	70 °C	-10 °C	CSA TUV UR

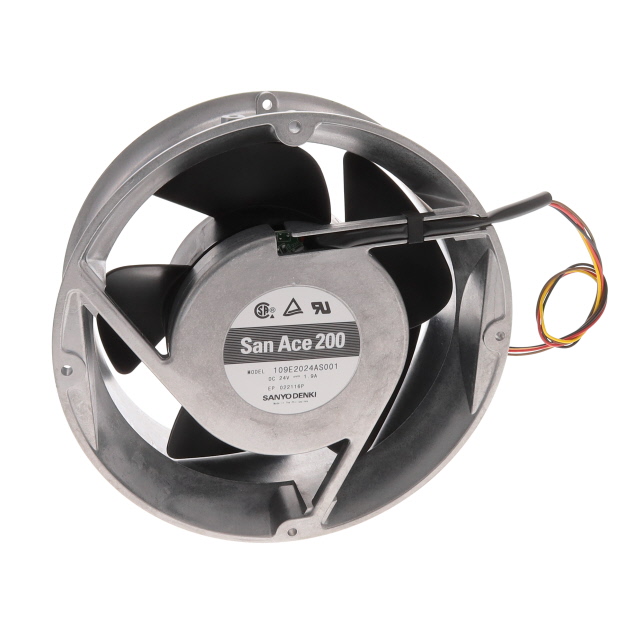

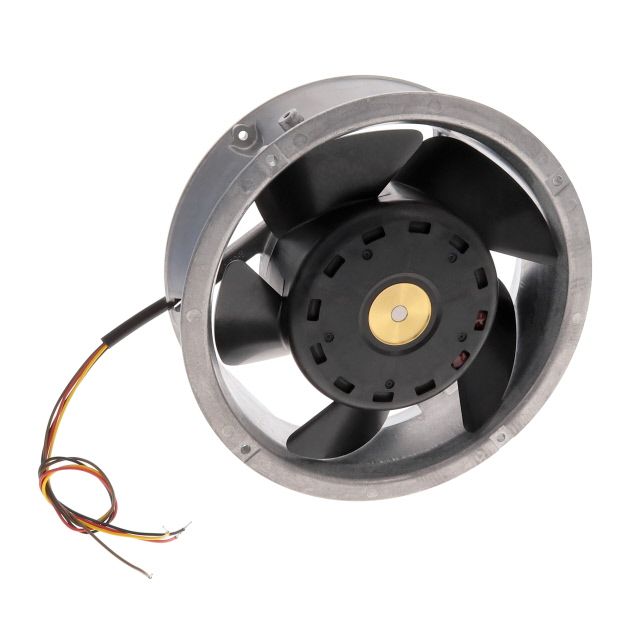

Sanyo Denki America Inc. 109E2024AS001	Aluminum	40000 Hrs	26.4 VDC	21.6 VDC	317.8 CFM	8.9 m³/min	Plastic	1.9 A	Ball	Speed Sensor (Tach)	1.153 in H2O	287.1 Pa	70 mm	3 Wire Leads	3200 RPM	24 VDC	57 dB	45.6 W	Round	200 mm	Tubeaxial	70 °C	-10 °C	CSA TUV UR
Sanyo Denki America Inc. 109E2024H001	Aluminum	40000 Hrs			289.5 CFM	8.11 m³/min	Plastic	1 A	Ball	Speed Sensor (Tach)	0.771 in H2O	192 Pa	70 mm	3 Wire Leads	2600 RPM	24 VDC	51 dB(A)	24 W	Round	200 mm	Tubeaxial	70 °C	-10 °C	CSA TUV UR
