ABV121 Series

Manufacturer: Panasonic Electronic Components

Catalog

SWITCH SNAP ACTION SPDT 5A 250V

Part	Pretravel	Pretravel	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Current Rating (Amps)	Release Force	Termination Style	Termination Style	Termination Style	Operating Position	Operating Position	Mounting Type	Mechanical Life	Electrical Life	Ingress Protection	Circuit	Switch Function	Differential Travel	Differential Travel	Voltage Rating - AC	Overtravel	Overtravel	Overtravel [custom]	Overtravel [custom]

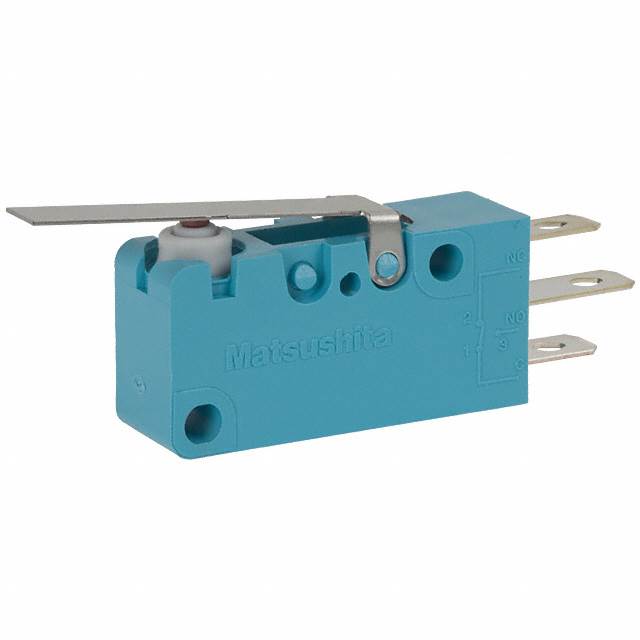

Panasonic Electronic Components ABV1212509	0.125 in	3.2 mm	Lever Straight	85 °C	-40 C	120 gf	5 A	13 gf	4.7 mm	0.187 in	Solder Quick Connect	15.3 mm	0.602 in	Chassis Mount	5000000 Cycles	100000 Cycles	IP50 - Dust Protected	SPDT	On-Mom	1.2 mm	0.047 in	250 V	1.2 mm	0.047 "

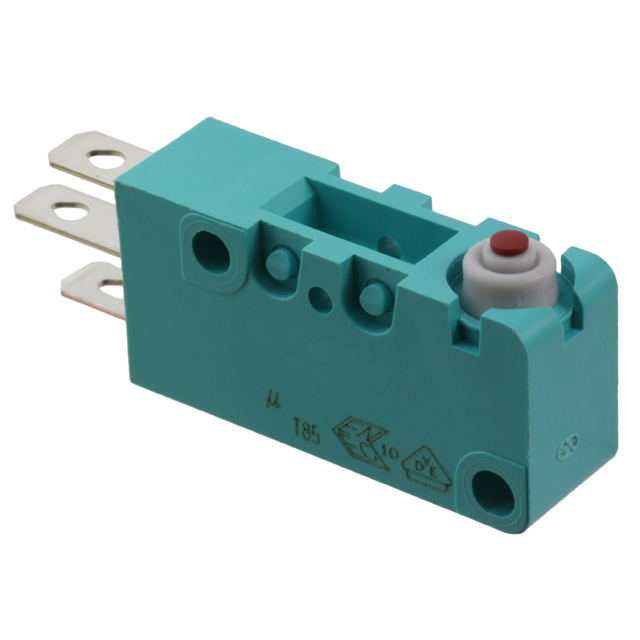

Panasonic Electronic Components ABV1210518	0.063 in	1.6 mm	Round (Pin Plunger)	85 °C	-40 C	0.2 kgf	3 A		4.7 mm	0.187 in	Solder Quick Connect	14.7 mm	0.579 in	Chassis Mount	5000000 Cycles	100000 Cycles	IP50 - Dust Protected	SPDT	On-Mom	0.4 mm	0.016 in	250 V			0.03 "	0.76 mm
Panasonic Electronic Components ABV1212619	0.125 in	3.2 mm	Lever Straight	85 °C	-40 C	180 gf	3 A	20 gf	4.7 mm	0.187 in	Solder Quick Connect	15.3 mm	0.602 in	Chassis Mount	5000000 Cycles	100000 Cycles	IP50 - Dust Protected	SPDT	On-Mom	1.2 mm	0.047 in	250 V	1.2 mm	0.047 "
Panasonic Electronic Components ABV1210513	0.063 in	1.6 mm	Round (Pin Plunger)	85 °C	-40 C	0.2 kgf	3 A		4.7 mm	0.187 in	Solder Quick Connect	14.7 mm	0.579 in	Chassis Mount	5000000 Cycles	100000 Cycles	IP50 - Dust Protected	SPDT	On-Mom	0.4 mm	0.016 in	250 V			0.03 "	0.76 mm

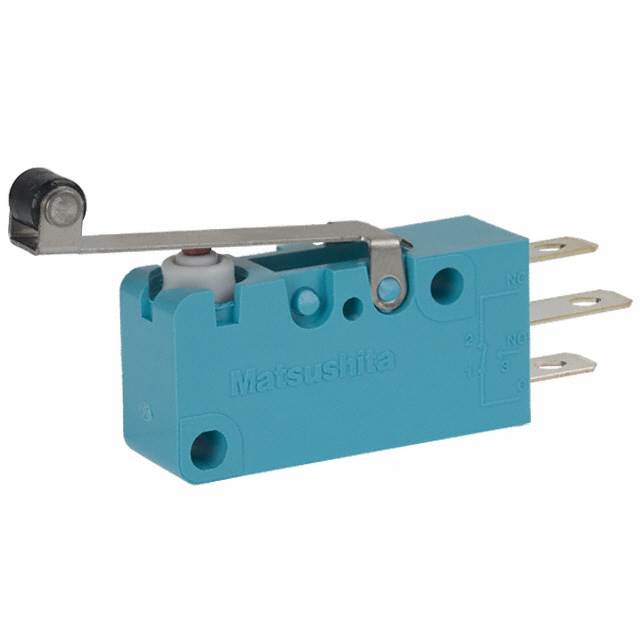

Panasonic Electronic Components ABV1216619	0.125 in	3.2 mm	Lever Roller	85 °C	-40 C	180 gf	3 A	20 gf	4.7 mm	0.187 in	Solder Quick Connect	20.7 mm	0.815 in	Chassis Mount	5000000 Cycles	100000 Cycles	IP50 - Dust Protected	SPDT	On-Mom	1.2 mm	0.047 in	250 V	1.2 mm	0.047 "
Panasonic Electronic Components ABV1212513	0.125 in	3.2 mm	Lever Straight	85 °C	-40 C	120 gf	3 A	13 gf	4.7 mm	0.187 in	Solder Quick Connect	15.3 mm	0.602 in	Chassis Mount	5000000 Cycles	100000 Cycles	IP50 - Dust Protected	SPDT	On-Mom	1.2 mm	0.047 in	250 V	1.2 mm	0.047 "
Panasonic Electronic Components ABV1212603	0.125 in	3.2 mm	Lever Straight	85 °C	-40 C	180 gf	5 A	20 gf	4.7 mm	0.187 in	Solder Quick Connect	15.3 mm	0.602 in	Chassis Mount	5000000 Cycles	100000 Cycles	IP50 - Dust Protected	SPDT	On-Mom	1.2 mm	0.047 in	250 V	1.2 mm	0.047 "
Panasonic Electronic Components ABV1216613	0.125 in	3.2 mm	Lever Roller	85 °C	-40 C	180 gf	3 A	20 gf	4.7 mm	0.187 in	Solder Quick Connect	20.7 mm	0.815 in	Chassis Mount	5000000 Cycles	100000 Cycles	IP50 - Dust Protected	SPDT	On-Mom	1.2 mm	0.047 in	250 V	1.2 mm	0.047 "
Panasonic Electronic Components ABV1210519	0.063 in	1.6 mm	Round (Pin Plunger)	85 °C	-40 C	0.2 kgf	3 A		4.7 mm	0.187 in	Solder Quick Connect	14.7 mm	0.579 in	Chassis Mount	5000000 Cycles	100000 Cycles	IP50 - Dust Protected	SPDT	On-Mom	0.4 mm	0.016 in	250 V			0.03 "	0.76 mm
Panasonic Electronic Components ABV1210613	0.063 in	1.6 mm	Round (Pin Plunger)	85 °C	-40 C	300 gf	3 A	60 gf	4.7 mm	0.187 in	Solder Quick Connect	14.7 mm	0.579 in	Chassis Mount	5000000 Cycles	100000 Cycles	IP50 - Dust Protected	SPDT	On-Mom	0.4 mm	0.016 in	250 V			0.03 "	0.76 mm
