1478419 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

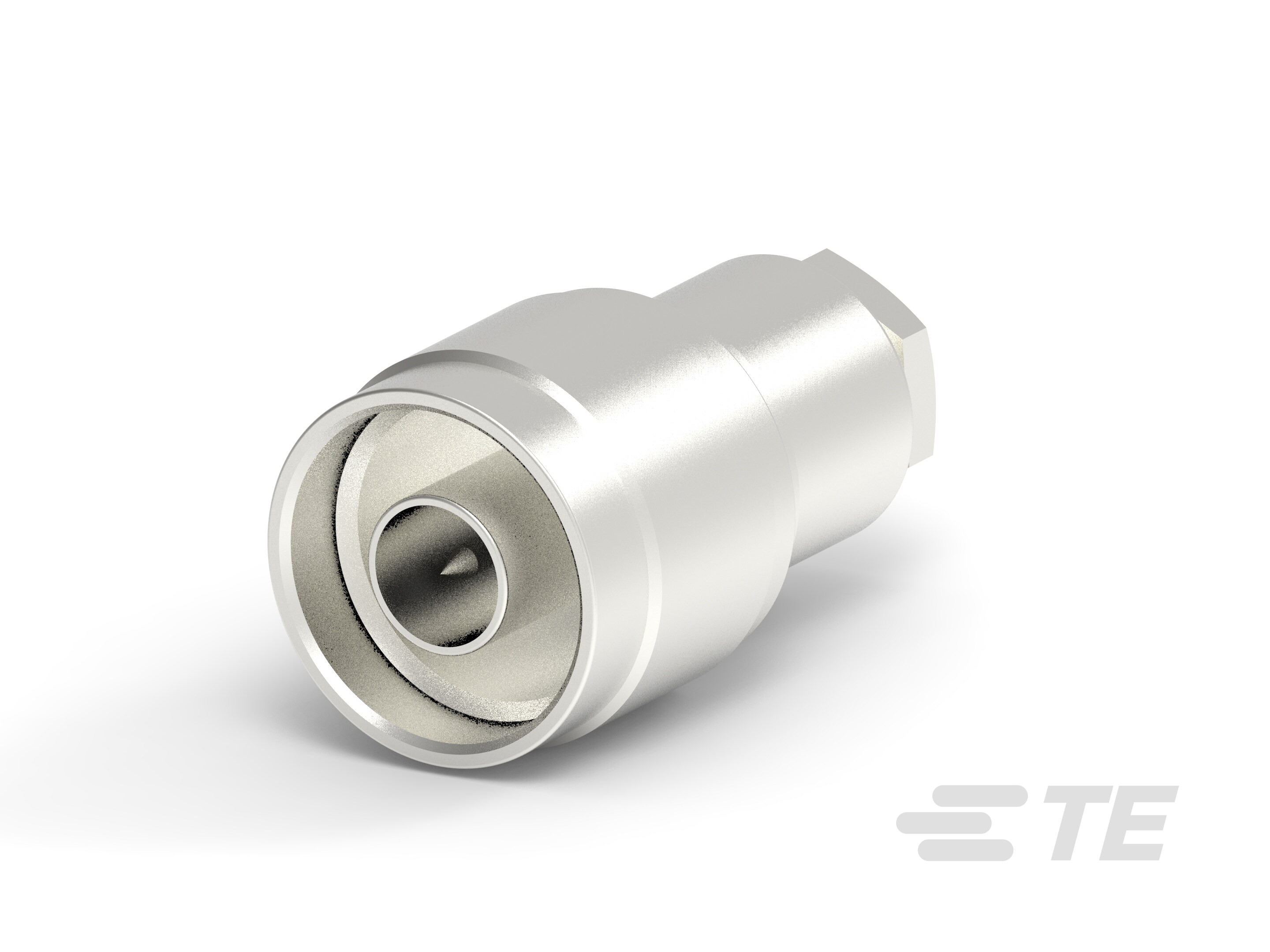

CONN TYPE N 0HZ TO 11GHZ 50OHM SOLDER ST CABLE MOUNT PL SILVER LOOSE
| Part | Center Contact Plating | Voltage Rating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Body Finish | Center Contact Material | Shield Termination | Cable Group | Impedance | Connector Type | Housing Color | Connector Style | Frequency - Max [Max] | Mounting Type | Number of Ports | Fastening Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver | 1000 VDC | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Silver | Brass | Clamp | 141A Belden 9907 RG-58C | 50 Ohms | Plug Male Pin | Silver | N Type | 11 GHz | Free Hanging (In-Line) | 1 | Threaded | Solder |
