CI1107M1 Series
Manufacturer: Cvilux USA
Beta
⌘K
7POS 1.00MM(.039) SINGLE ROW RIG
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Shrouding | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Number of Positions Loaded | Number of Positions | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Termination | Connector Type | Features | Insulation Material | Voltage Rating | Contact Shape | Contact Type | Style | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Insulation Color | Insulation Height | Insulation Height | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

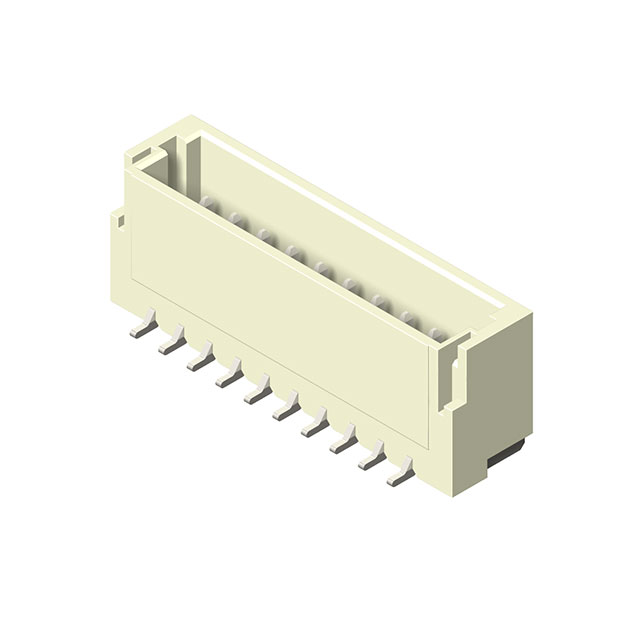

 Cvilux USA | 2.54 µm | 100 µin | 1 mm | 0.039 in | Tin | Shrouded - 4 Wall | Detent Lock | 100 çin | 2.54 çm | 1 | All | 7 | 1.75 mm | 0.069 in | UL94 V-0 | Solder | Header | Solder Retention | Glass Filled Halogen Free Nylon 6T Polyamide (PA6T) | 50 VAC | Rectangular | Male Pin | Board to Cable/Wire | 1 A | 85 °C | -25 °C | Phosphor Bronze | Natural | 0.116 " | 2.95 mm | Right Angle Surface Mount |

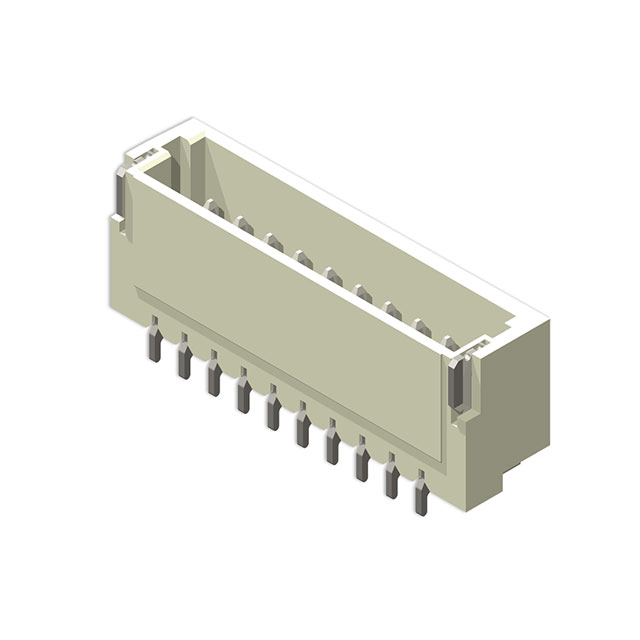

 Cvilux USA | 2.54 µm | 100 µin | 1 mm | 0.039 in | Tin | Shrouded - 4 Wall | Detent Lock | 100 çin | 2.54 çm | 1 | All | 7 | 1.75 mm | 0.069 in | UL94 V-0 | Solder | Header | Pick and Place Solder Retention | Glass Filled Halogen Free Nylon 6T Polyamide (PA6T) | 50 VAC | Rectangular | Male Pin | Board to Cable/Wire | 1 A | 85 °C | -25 °C | Phosphor Bronze | Natural | 0.169 " | 4.3 mm | Surface Mount |
