CJ Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

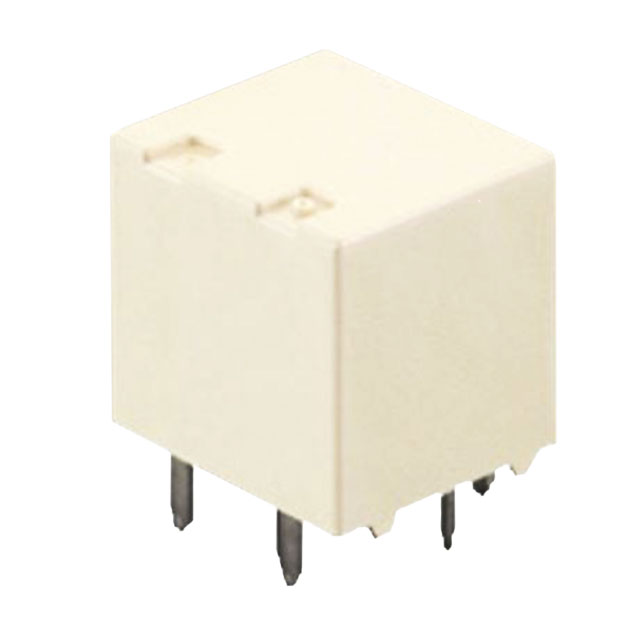

AUTOMOTIVE RELAYS ACJ2212 PIP TYPE
| Part | Coil Power | Contact Material | Coil Resistance | Coil Type | Mounting Type | Coil Current | Contact Rating (Current) | Contact Form | Features | Coil Voltage | Switching Voltage | Must Operate Voltage | Operate Time | Must Release Voltage | Release Time | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 640 mW | Silver Alloy Cadmium Free | 225 Ohms | Non Latching | Through Hole | 53.3 mA | 20 A | SPDT (1 Form C) x 2 | Sealed - Flux Protection | 12 VDC | 14 VDC | 7.2 VDC | 10 ms | 1 VDC | 10 ms | PC Pin | 85 °C | -40 C |
