70TPS16 Series

Catalog

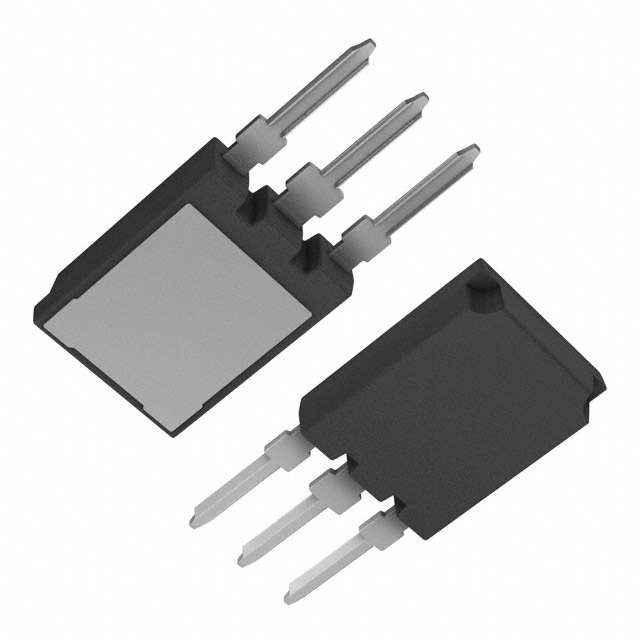

SCR 1.6KV 75A SUPER-247

Part	Voltage - Off State	Package / Case	Voltage - On State (Vtm) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Supplier Device Package	SCR Type	Current - Off State (Max) [Max] [custom]
Vishay General Semiconductor - Diodes Division 70TPS16	1.6 kV	TO-274AA	1.4 V	1.5 V	Through Hole	125 °C	-40 C	1400 A	200 mA	75 A	100 mA	70 A	SUPER-247™ (TO-274AA)	Standard Recovery	1 mA
