9542 Series
Manufacturer: Belden Inc.
Beta
⌘K

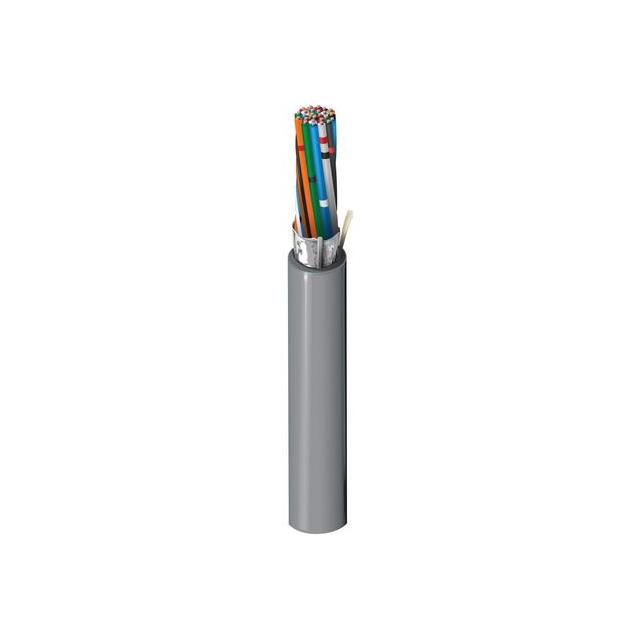

CABLE 20COND 24AWG CHROME
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Shield Type | Conductor Material | Cable Type | Voltage | Features | Usage | Wire Gauge | Jacket (Insulation) Material | Ratings | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 80 °C | -30 ░C | 0.314 in | 7.98 mm | 7 | 32 AWG | 20 | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Chrome | Foil | Copper Tinned | Multi-Conductor | 300 VDC | Drain Wire | Computer | 24 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2464 | ||
Belden Inc. | 100 % | Aluminum | 80 °C | -30 ░C | 0.314 in | 7.98 mm | 7 | 32 AWG | 20 | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Chrome | Foil | Copper Tinned | Multi-Conductor | 300 VDC | Drain Wire | Computer | 24 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 152.4 m | 500 ft |
Belden Inc. | 100 % | Aluminum | 80 °C | -30 ░C | 0.314 in | 7.98 mm | 7 | 32 AWG | 20 | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Chrome | Foil | Copper Tinned | Multi-Conductor | 300 VDC | Drain Wire | Computer | 24 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 152.4 m | 500 ft |
