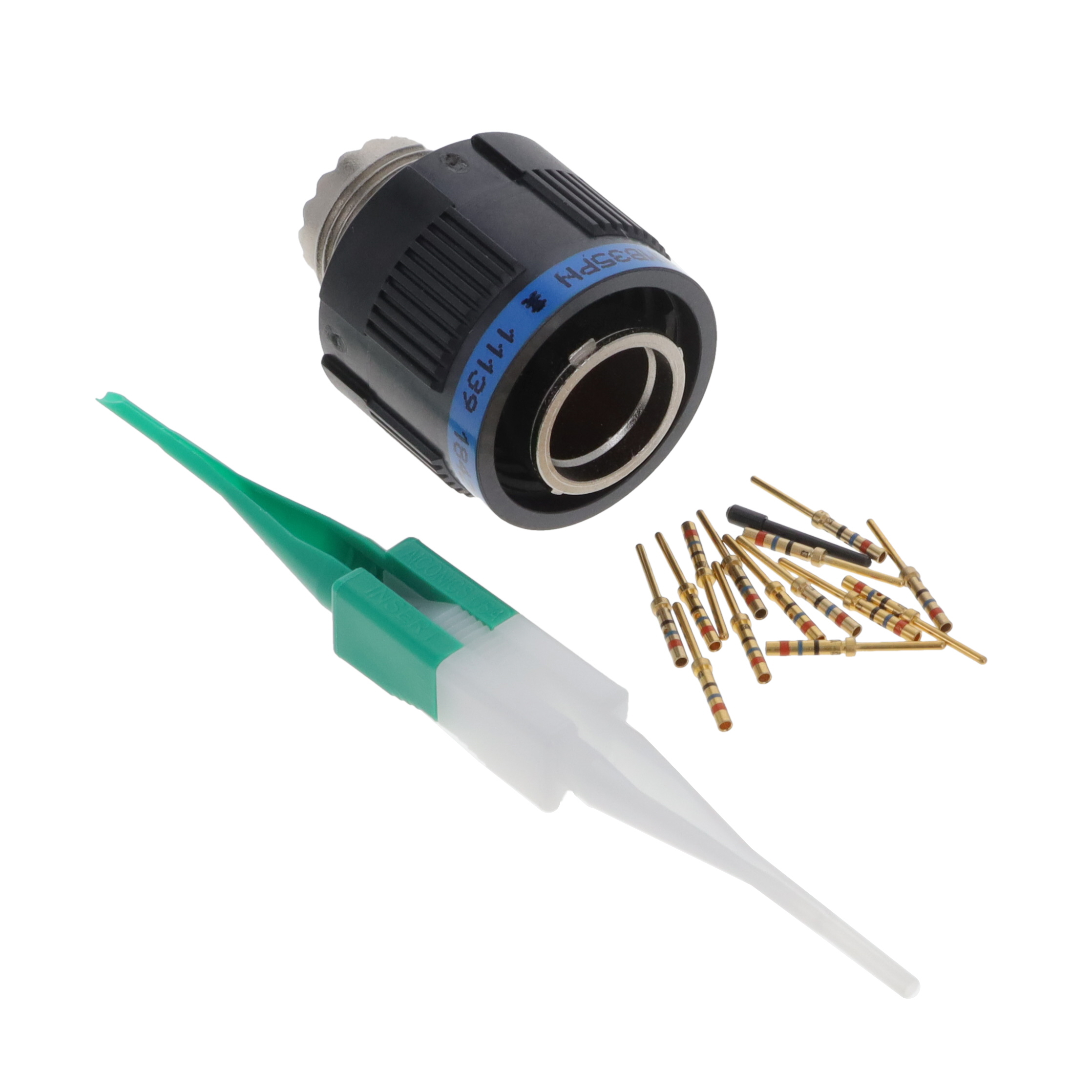

D38999/26MB Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN PLUG MALE 13POS GOLD CRIMP
| Part | Insert Material | Number of Positions | Shell Material | Ingress Protection | Contact Finish - Mating | Grade | Shell Finish | Voltage Rating | Mounting Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Contact Material | Qualification | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, MIL | Termination | Connector Type | Fastening Type | Primary Material | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Thermoplastic | 13 | Composite | Environment Resistant | Gold | Military | Electroless Nickel | 400 VAC 550 VDC | Free Hanging (In-Line) | 35 | 11 | Copper Alloy | MIL-DTL-38999 Series III | Aerospace Military | -65 ░C | 200 °C | B | Crimp | Plug Male Pins | Threaded | Composite | N (Normal) | 50 µin | 1.27 µm | Coupling Nut |
