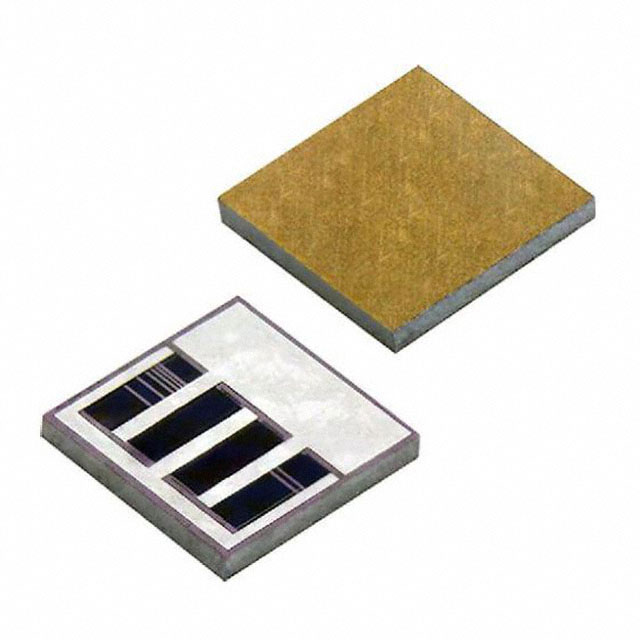

IGBR Series
Manufacturer: Vishay Dale
Beta
⌘K
THIN FILM RESISTORS - SMD 0808 1.8OHM 10% PD 1KPPM BACK CONTACT
| Part | Number of Terminations | Composition | Resistance | Height - Seated (Max) | Features | Operating Temperature (Max) | Operating Temperature (Min) | Package / Case | Temperature Coefficient (Highest) | Temperature Coefficient | Temperature Coefficient (Lowest) | Tolerance | Power (Watts) | Package Name | Size / Dimension Width | Size / Dimension Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 2 | Thin Film | 1.8 Ohm | 0.012 in | Bonding Mountable Moisture Resistant | 125 °C | -55 °C | Nonstandard | 1000 ppm/°C | 1000 ppm/°C | -1000 ppm/°C | 10 % | 4 W | 0808 | 0.079 in | 0.079 in |
 Vishay Dale | 2 | Thin Film | 10 Ohms | 0.012 in | Bonding Mountable Moisture Resistant | 125 °C | -55 °C | 0404 (1010 Metric) | 1000 ppm/°C | 1000 ppm/°C | -1000 ppm/°C | 5 % | 2 w | 0404 | 0.039 in | 0.039 in |
Vishay Dale | 2 | Thin Film | 3 Ohm | 0.012 in | Bonding Mountable Moisture Resistant | 125 °C | -55 °C | Nonstandard | 500 ppm/°C | 5 % | 4 W | 0808 | 0.079 in | 0.079 in | ||
 Vishay Dale | 2 | Thin Film | 10 Ohms | 0.012 in | Bonding Mountable Moisture Resistant | 125 °C | -55 °C | Nonstandard | 300 ppm/°C | 5 % | 4 W | 0808 | 0.079 in | 0.079 in |
