A22NS Series

Manufacturer: Omron Automation and Safety

Catalog

ROTARY SWITCHES PSHIN SEL, PLAS BZL, BLCK, 1NO

Part	Electrical Life	Depth Behind Flange	Approval Agency	Mechanical Life	Termination Style	Type	Mounting Type	Current Rating (Amps)	Ingress Protection	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Voltage Rating - DC	Features	Circuit	Voltage Rating - AC	Number of Positions	Illumination
Omron Automation and Safety A22NS-2BL-NBA-P100-NN	500000 Cycles	39.5 mm	CCC CE cULus TUV	500000 Cycles	Spring Terminal	Standard	Panel Mount	10 A	IP66 - Dust Tight Water Resistant	22.3 mm	-25 °C	70 °C	Off-Mom	24 V	Bezel - Round Black Knob	SPST-NO	120 V	2	Non-Illuminated
Omron Automation and Safety A22NS-2RM-NBA-P202-NN	500000 Cycles	39.5 mm	CCC CE cULus TUV	500000 Cycles	Spring Terminal	Standard	Panel Mount	10 A	IP66 - Dust Tight Water Resistant	22.3 mm	-25 °C	70 °C	On-Off	24 V	Bezel - Round Black Knob	DPST-NC	120 V	2	Non-Illuminated
Omron Automation and Safety A22NS-2BL-NBA-P101-NN	500000 Cycles	39.5 mm	CCC CE cULus TUV	500000 Cycles	Spring Terminal	Standard	Panel Mount	10 A	IP66 - Dust Tight Water Resistant	22.3 mm	-25 °C	70 °C	Off-Mom	24 V	Bezel - Round Black Knob	DPST-NO	120 V	2	Non-Illuminated
Omron Automation and Safety A22NS-3MB-NBA-G102-NN	300000 Cycles	45.3 mm	CCC CE cULus TUV	300000 Cycles	Screw Terminal	Standard	Panel Mount	10 A	IP66 - Dust Tight Water Resistant	22.3 mm	-25 °C	70 °C	Mom-Off-Mom	24 V	Bezel - Round Black Knob	DPST-NO/NC	120 V		Non-Illuminated
Omron Automation and Safety A22NS-3BM-NBA-P101-NN	300000 Cycles	39.5 mm	CCC CE cULus TUV	300000 Cycles	Spring Terminal	Standard	Panel Mount	10 A	IP66 - Dust Tight Water Resistant	22.3 mm	-25 °C	70 °C	Off-Off-On On-Off-Off	24 V	Bezel - Round Black Knob	DPST-NO	120 V		Non-Illuminated

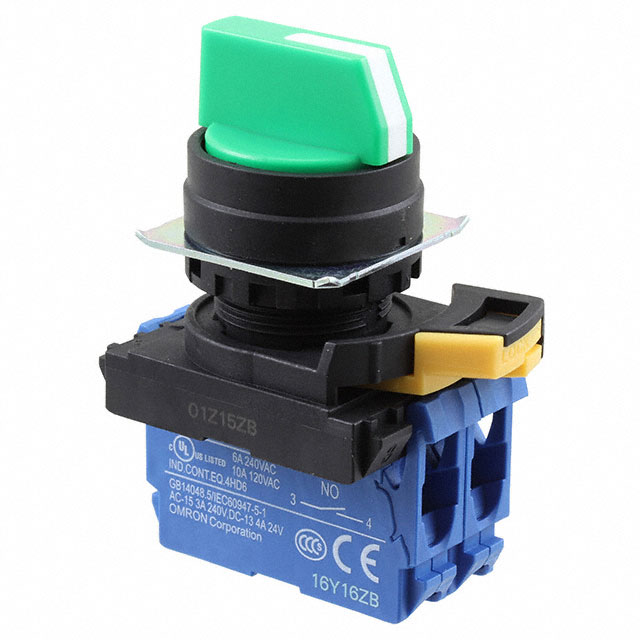

Omron Automation and Safety A22NS-3BM-NGA-G101-NN	300000 Cycles	45.3 mm	CCC CE cULus TUV	300000 Cycles	Screw Terminal	Standard	Panel Mount	10 A	IP66 - Dust Tight Water Resistant	22.3 mm	-25 °C	70 °C	Off-Off-On On-Off-Off	24 V	Bezel - Round Green Knob	DPST-NO	120 V		Non-Illuminated
Omron Automation and Safety A22NS-2BL-NBA-G002-NN	500000 Cycles	45.3 mm	CCC CE cULus TUV	500000 Cycles	Screw Terminal	Standard	Panel Mount	10 A	IP66 - Dust Tight Water Resistant	22.3 mm	-25 °C	70 °C	On-Mom	24 V	Bezel - Round Black Knob	SPST-NC	120 V	2	Non-Illuminated
Omron Automation and Safety A22NS-3MB-NBA-P101-NN	300000 Cycles	39.5 mm	CCC CE cULus TUV	300000 Cycles	Spring Terminal	Standard	Panel Mount	10 A	IP66 - Dust Tight Water Resistant	22.3 mm	-25 °C	70 °C	Mom-Off-Mom	24 V	Bezel - Round Black Knob	DPST-NO	120 V		Non-Illuminated
Omron Automation and Safety A22NS-3MB-NBA-G101-NN	300000 Cycles	45.3 mm	CCC CE cULus TUV	300000 Cycles	Screw Terminal	Standard	Panel Mount	10 A	IP66 - Dust Tight Water Resistant	22.3 mm	-25 °C	70 °C	Mom-Off-Mom	24 V	Bezel - Round Black Knob	DPST-NO	120 V		Non-Illuminated
Omron Automation and Safety A22NS-3MM-NBA-P101-NN	300000 Cycles	39.5 mm	CCC CE cULus TUV	300000 Cycles	Spring Terminal	Standard	Panel Mount	10 A	IP66 - Dust Tight Water Resistant	22.3 mm	-25 °C	70 °C	Off-Off-On On-Off-Off	24 V	Bezel - Round Black Knob	DPST-NO	120 V		Non-Illuminated
