725-024 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 24POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Number of Positions	Termination	Color	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Contact Type	Read Out	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Number of Positions/Bay/Row	Gender	Termination Rows	Number of Rows

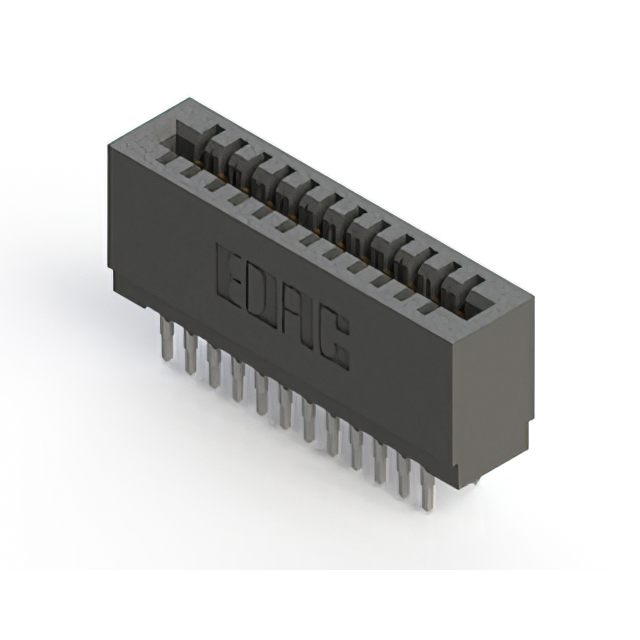

EDAC Inc. 725-024-520-201	2	Polyester Thermoplastic	2	24	Press-Fit	Black	30 Áin	0.76 Ám	Non Specified - Dual Edge	Copper Alloy	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Cantilever	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	12	Female

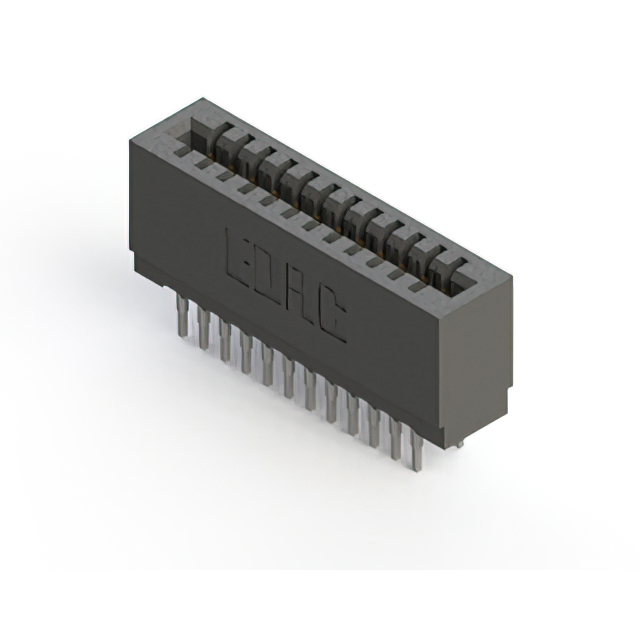

EDAC Inc. 725-024-522-201	2	Polyester Thermoplastic	2	24	Press-Fit	Black	30 Áin	0.76 Ám	Non Specified - Dual Edge	Copper Alloy	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Cantilever	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	12	Female

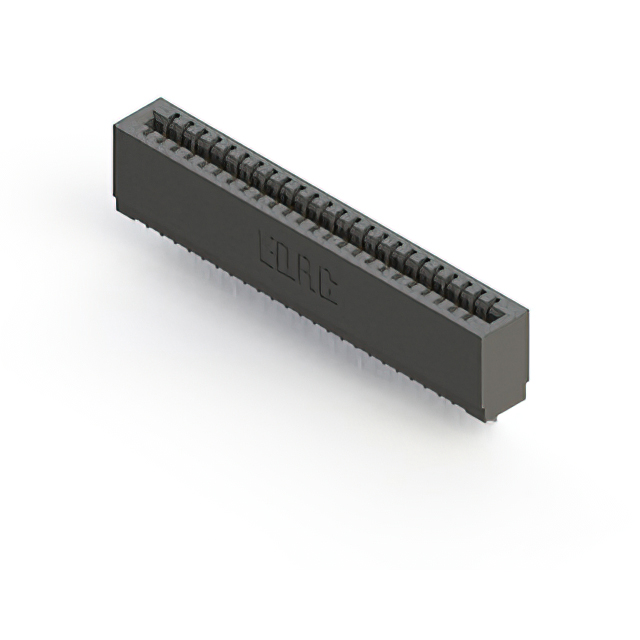

EDAC Inc. 725-024-541-101		Polyester Thermoplastic		24	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	Non Specified - Single Edge	Copper Alloy	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Cantilever	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	24	Female	1	1
EDAC Inc. 725-024-520-101		Polyester Thermoplastic		24	Press-Fit	Black	30 Áin	0.76 Ám	Non Specified - Single Edge	Copper Alloy	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Cantilever	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	24	Female	1	1

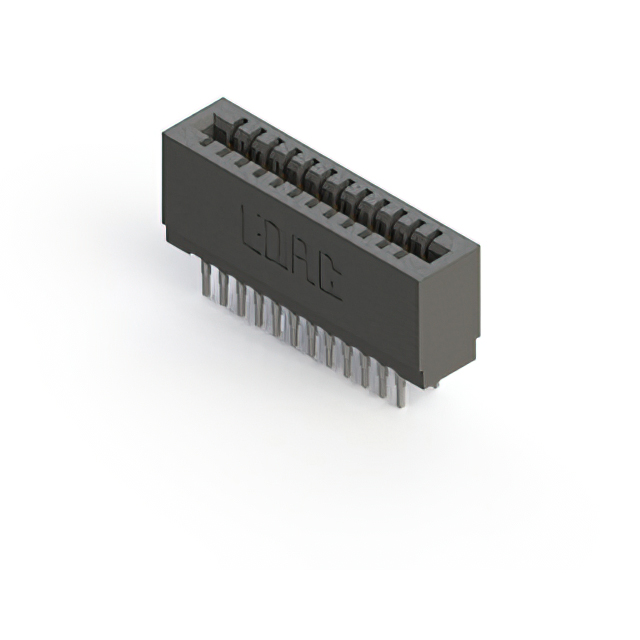

EDAC Inc. 725-024-541-201	2	Polyester Thermoplastic	2	24	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	Non Specified - Dual Edge	Copper Alloy	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Cantilever	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	12	Female

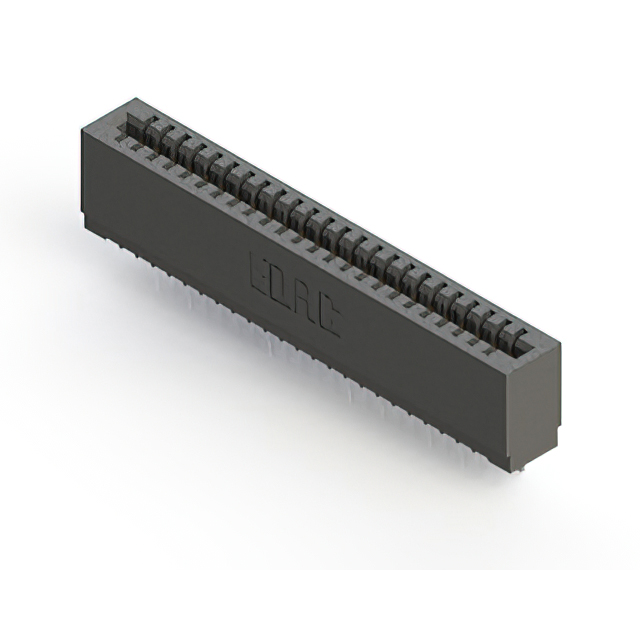

EDAC Inc. 725-024-522-101		Polyester Thermoplastic		24	Press-Fit	Black	30 Áin	0.76 Ám	Non Specified - Single Edge	Copper Alloy	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Cantilever	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	24	Female	1	1

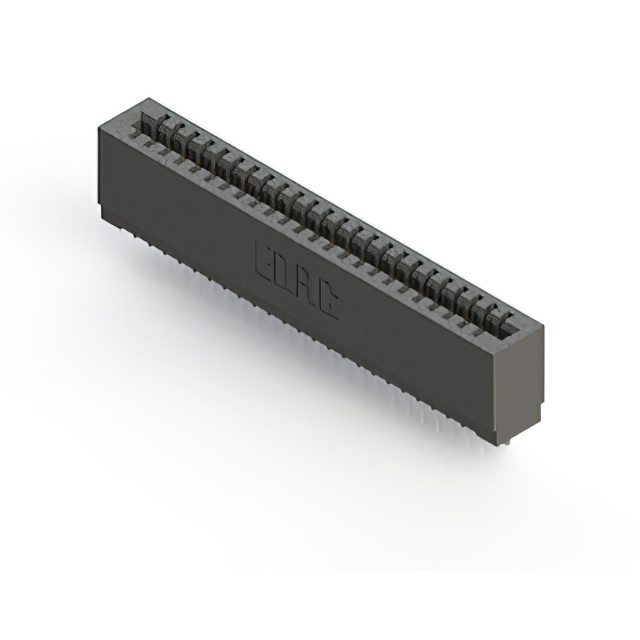

EDAC Inc. 725-024-540-101		Polyester Thermoplastic		24	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	Non Specified - Single Edge	Copper Alloy	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Cantilever	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	24	Female	1	1
EDAC Inc. 725-024-560-201	2	Polyester Thermoplastic	2	24	Press-Fit	Black	30 Áin	0.76 Ám	Non Specified - Dual Edge	Copper Alloy	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Cantilever Make Before Break	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	12	Female
EDAC Inc. 725-024-545-101		Polyester Thermoplastic		24	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	Non Specified - Single Edge	Copper Alloy	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Cantilever	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	24	Female	1	1

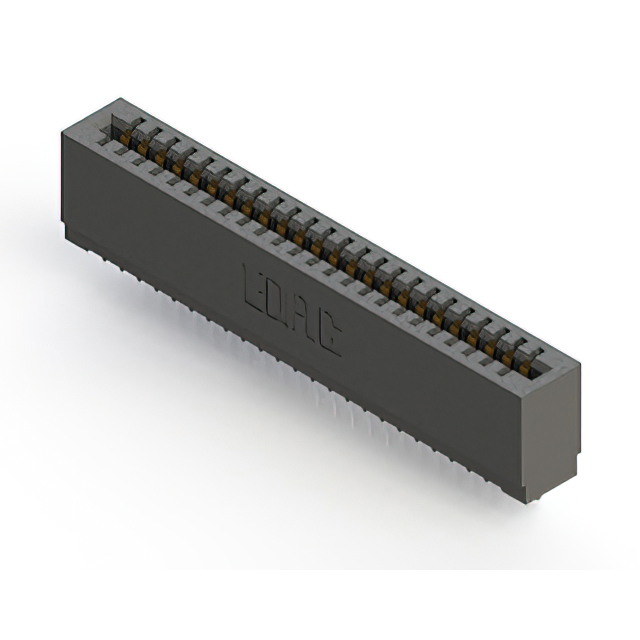

EDAC Inc. 725-024-525-101		Polyester Thermoplastic		24	Press-Fit	Black	30 Áin	0.76 Ám	Non Specified - Single Edge	Copper Alloy	Gold	-40 C	105 ░C	0.1 "	2.54 mm	Cantilever	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	24	Female	1	1
