XZCMEDGCBD56 Series

Manufacturer: SunLED

Catalog

LED RGB CLEAR 4SMD R/A

Part	Package / Case	Lens Style	Lens Color	Current - Test	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Size / Dimension [x]	Size / Dimension [y]	Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lens Transparency	Configuration	Wavelength - Dominant	Wavelength - Peak	Supplier Device Package	Mounting Type	Viewing Angle	Height (Max) [Max] [z]	Lens Size [y]	Lens Size [x]

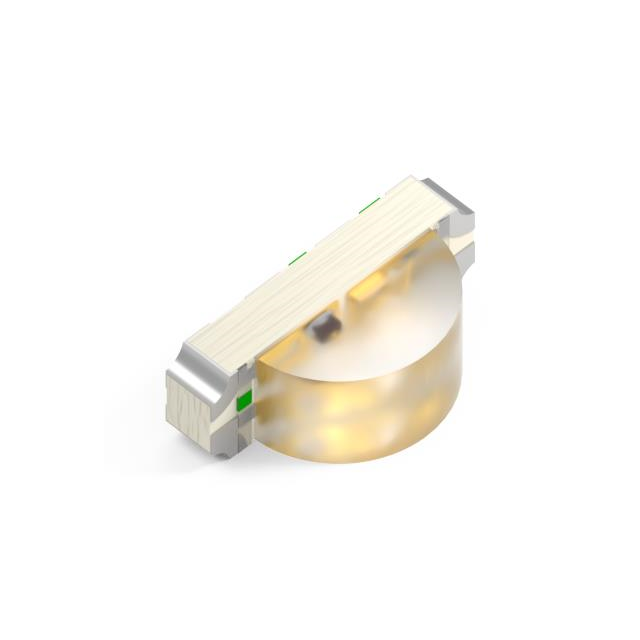

SunLED XZCMEDGCBD56W	4-SMD No Lead	Rectangle with Domed Top	Colorless	2 mA	9 mcd	14 mcd	59 mcd	3 mm	1.5 mm	Blue Green Red	1.8 V	2.65 V	2.65 V	Clear	Common Anode	465 nm 525 nm 621 nm	460 nm 515 nm 630 nm	4-SMD	Right Angle Surface Mount	150 °	1.2 mm	1 mm	2 mm
