SMKDSPL Series
Manufacturer: Phoenix Contact
Beta
⌘K

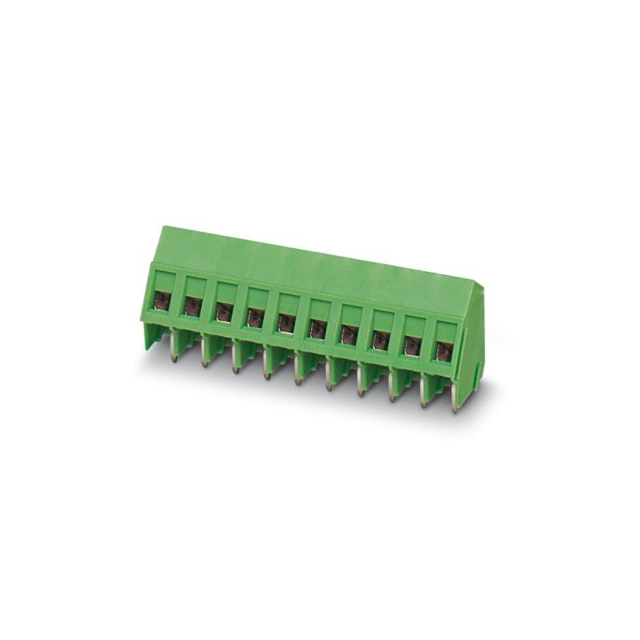

FIXED TERMINAL BLOCKS SMKDSPL 1 5/ 2-5 08
| Part | Housing Material | Screw Thread | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Torque - Screw [Max] | Positions Per Level | Voltage | Current | Wire Termination | Mating Orientation | Pitch | Pitch | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Polyamide (PA) Nylon | M3 | 0.6 Nm | 4.4 Lb-In | 0.5 Nm | 5.3 Lb-In | 2 | 400 V | 17.5 A | Screw | 35° (145°) Angle with Board | 5.08 mm | 0.2 in | Through Hole |
