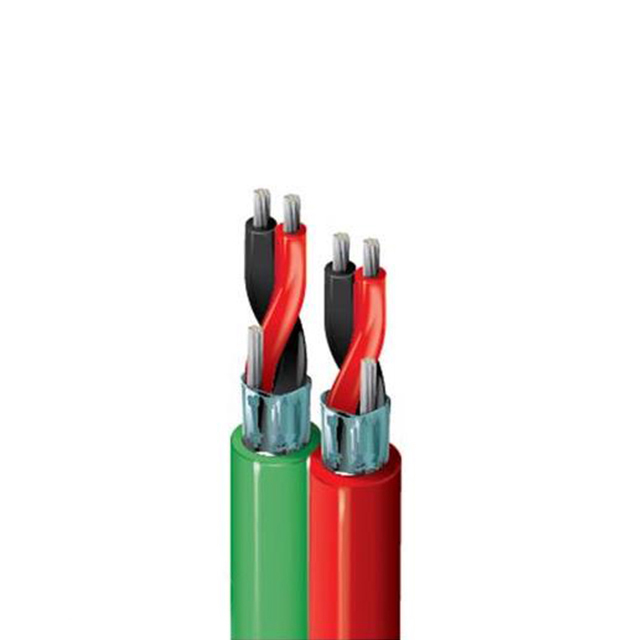

9451D Series
Manufacturer: Belden Inc.
Beta
⌘K
2 BOND#22 FSPR PO FRPVC
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Length | Length | Voltage | Wire Gauge | Shield Type | Cable Type | Number of Conductors | Conductor Insulation | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Features | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | 0.27 " | 6.86 mm | Red | 0.02 " | 0.508 mm | Audio Control Signal | -30 ░C | 105 ░C | UL Style CMR | 304.8 m | 1000 ft | 300 VDC | 22 AWG | Foil | Multi-Pair | 4 | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Drain Wire | Copper Tinned |
Belden Inc. | 100 % | Aluminum Polyester | 0.27 " | 6.86 mm | Red | 0.02 " | 0.508 mm | Audio Control Signal | -30 ░C | 105 ░C | UL Style CMR | 304.8 m | 1000 ft | 300 VDC | 22 AWG | Foil | Multi-Pair | 4 | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Drain Wire | Copper Tinned |
Belden Inc. | 100 % | Aluminum Polyester | 0.27 " | 6.86 mm | Red | 0.02 " | 0.508 mm | Audio Control Signal | -30 ░C | 105 ░C | UL Style CMR | 304.8 m | 1000 ft | 300 VDC | 22 AWG | Foil | Multi-Pair | 4 | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Drain Wire | Copper Tinned |
