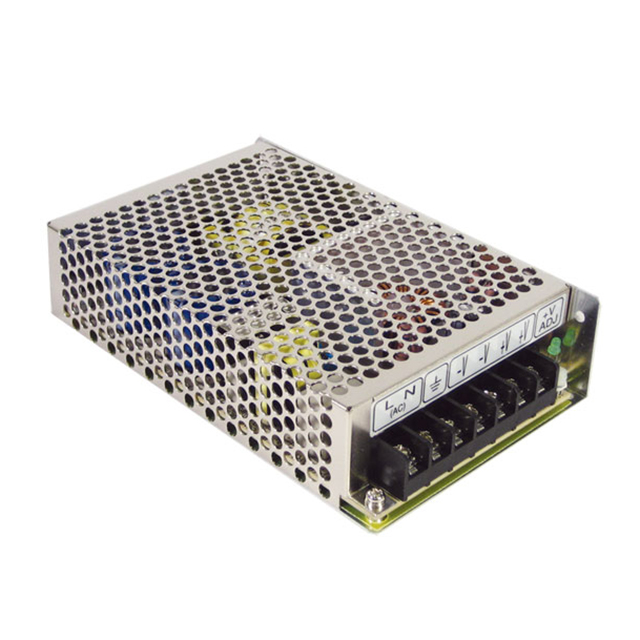

RID-85 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 24V 88W
| Part | Minimum Load Required | Efficiency | Voltage - Output 2 | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Type | Current - Output 2 | Features | Power (Watts) | Number of Outputs | Applications | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Current - Output 1 | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 81 % | 24 V | CB CE cURus TUV | 88 VAC 125 VDC | 264 VAC 373 VDC | Enclosed | 2 A | Adjustable Output Universal Input | 88 W | 2 | ITE (Commercial) | 1.5 in | 6.26 in | 159 mm | 3.82 in | 38 mm | 97 mm | Chassis Mount | 70 °C | -25 °C | 5 V | 8 A | 3000 V | |
MEAN WELL USA Inc. | 80 % | 12 V | CB CE cURus TUV | 88 VAC 125 VDC | 264 VAC 373 VDC | Enclosed | 4 A | Adjustable Output Universal Input | 88 W | 2 | ITE (Commercial) | 1.5 in | 6.26 in | 159 mm | 3.82 in | 38 mm | 97 mm | Chassis Mount | 70 °C | -25 °C | 5 V | 8 A | 3000 V |
