746-072 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 72POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Gender	Card Type	Number of Rows [custom]	Pitch	Pitch	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Contact Type	Mounting Type	Contact Material	Color	Read Out
EDAC Inc. 746-072-540-606	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Female	Non Specified - Dual Edge	2	3.18 mm	0.125 in	36	-40 C	105 ░C	Press-Fit Wire Wrap	72	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	Through Hole	Copper Alloy	Black	Dual
EDAC Inc. 746-072-541-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Female	Non Specified - Dual Edge	2	3.18 mm	0.125 in	36	-40 C	105 ░C	Press-Fit Wire Wrap	72	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	Through Hole	Copper Alloy	Black	Dual
EDAC Inc. 746-072-553-206	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Female	Non Specified - Dual Edge	2	3.18 mm	0.125 in	36	-40 C	105 ░C	Press-Fit Wire Wrap	72	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	Through Hole	Copper Alloy	Black	Dual

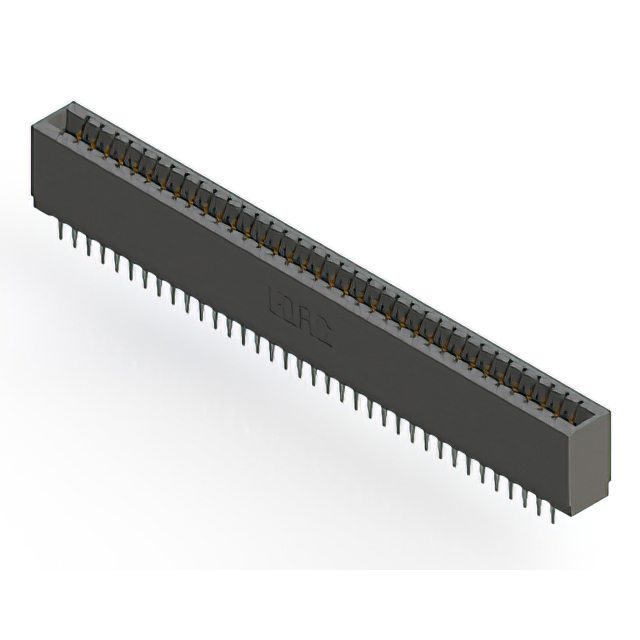

EDAC Inc. 746-072-560-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Female	Non Specified - Dual Edge	2	3.18 mm	0.125 in	36	-40 C	105 ░C	Press-Fit	72	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever Make Before Break	Through Hole	Copper Alloy	Black	Dual
EDAC Inc. 746-072-553-601	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Female	Non Specified - Dual Edge	2	3.18 mm	0.125 in	36	-40 C	105 ░C	Press-Fit Wire Wrap	72	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	Through Hole	Copper Alloy	Black	Dual
EDAC Inc. 746-072-540-601	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Female	Non Specified - Dual Edge	2	3.18 mm	0.125 in	36	-40 C	105 ░C	Press-Fit Wire Wrap	72	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	Through Hole	Copper Alloy	Black	Dual
EDAC Inc. 746-072-527-601	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Female	Non Specified - Dual Edge	2	3.18 mm	0.125 in	36	-40 C	105 ░C	Press-Fit	72	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	Through Hole	Copper Alloy	Black	Dual
EDAC Inc. 746-072-540-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Female	Non Specified - Dual Edge	2	3.18 mm	0.125 in	36	-40 C	105 ░C	Press-Fit Wire Wrap	72	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	Through Hole	Copper Alloy	Black	Dual
EDAC Inc. 746-072-527-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Female	Non Specified - Dual Edge	2	3.18 mm	0.125 in	36	-40 C	105 ░C	Press-Fit	72	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	Through Hole	Copper Alloy	Black	Dual
EDAC Inc. 746-072-545-601	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Female	Non Specified - Dual Edge	2	3.18 mm	0.125 in	36	-40 C	105 ░C	Press-Fit Wire Wrap	72	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	Through Hole	Copper Alloy	Black	Dual
